PRODUCT INTRODUCTION

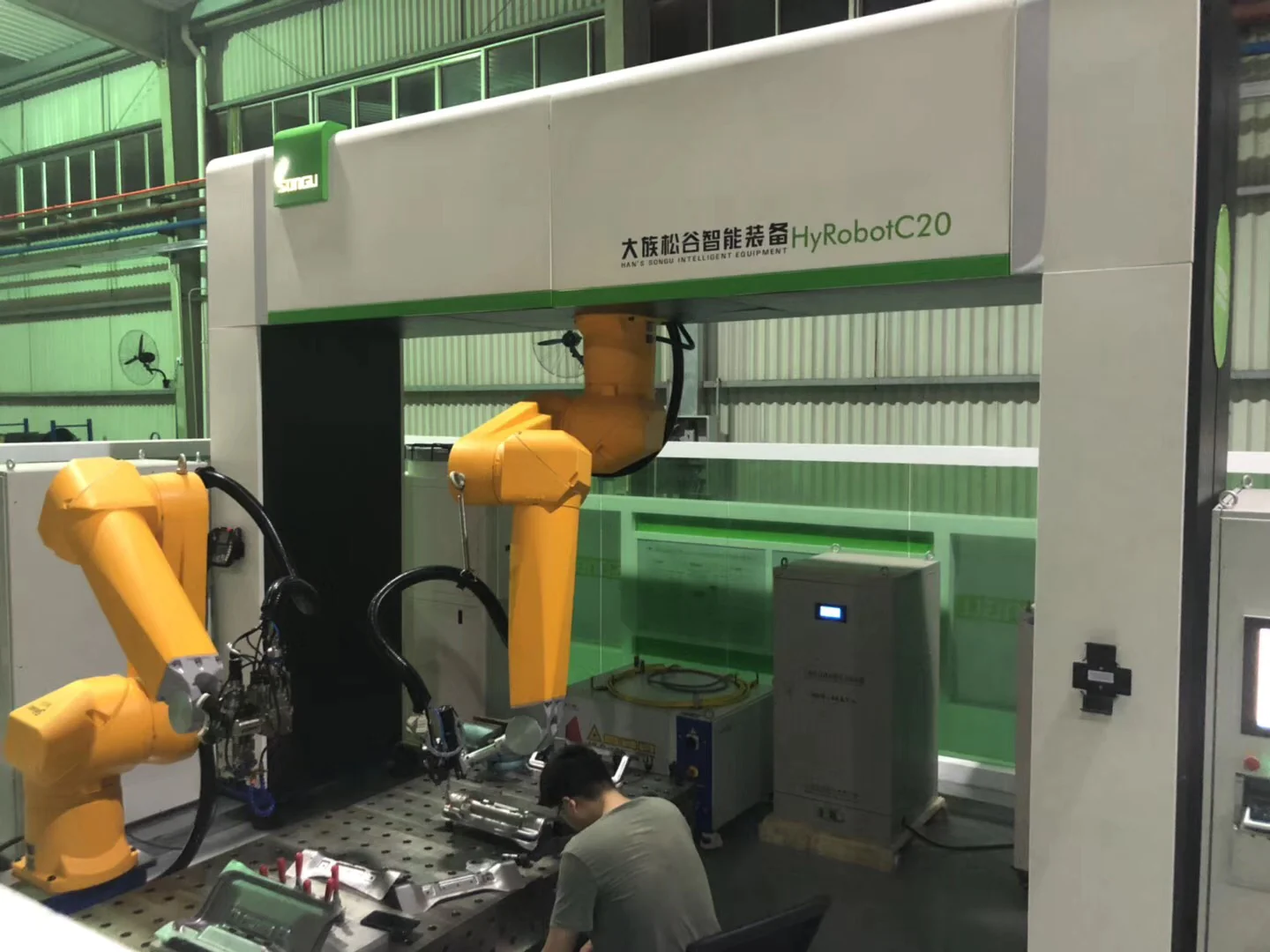

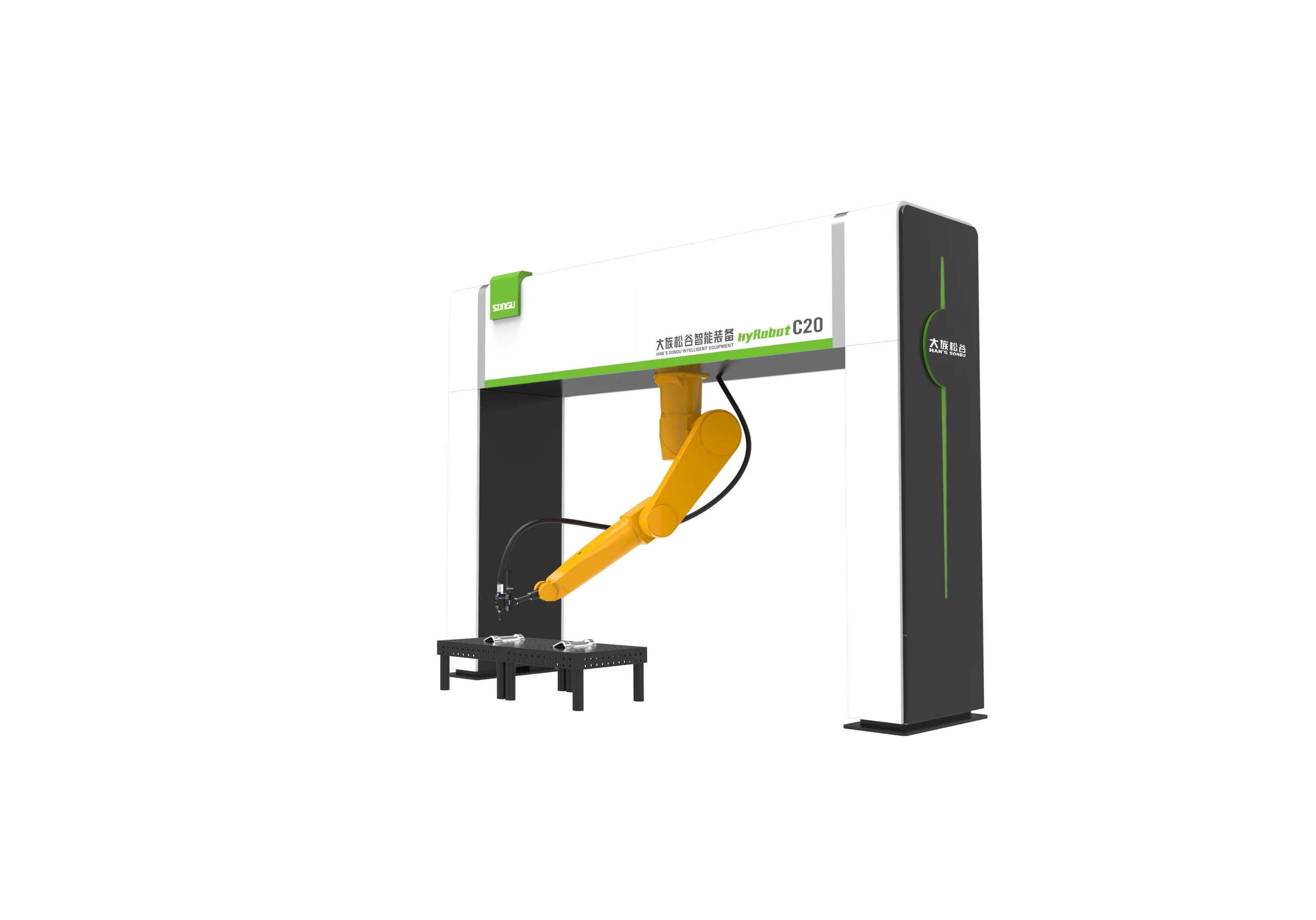

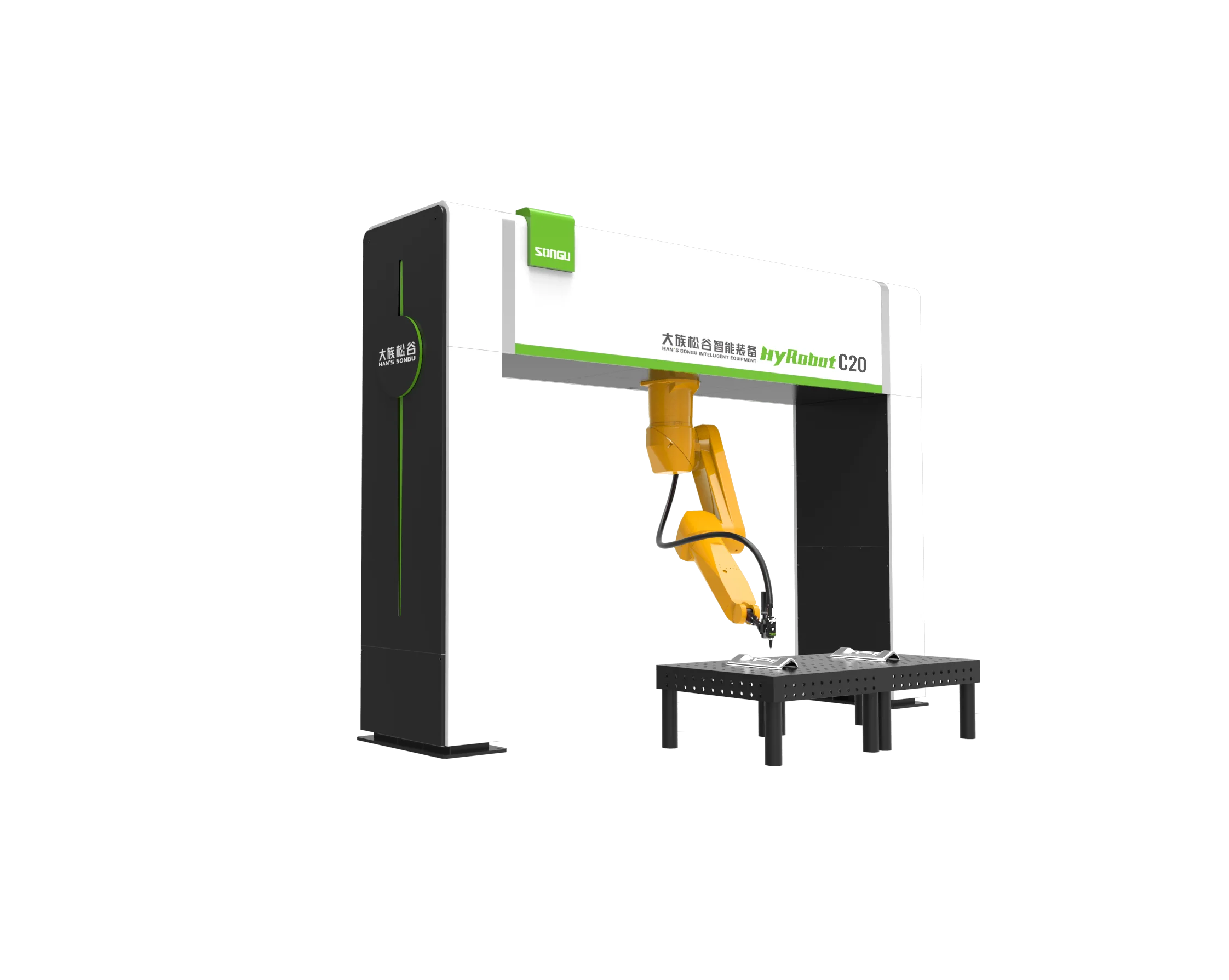

- Gantry structure, welded frame.

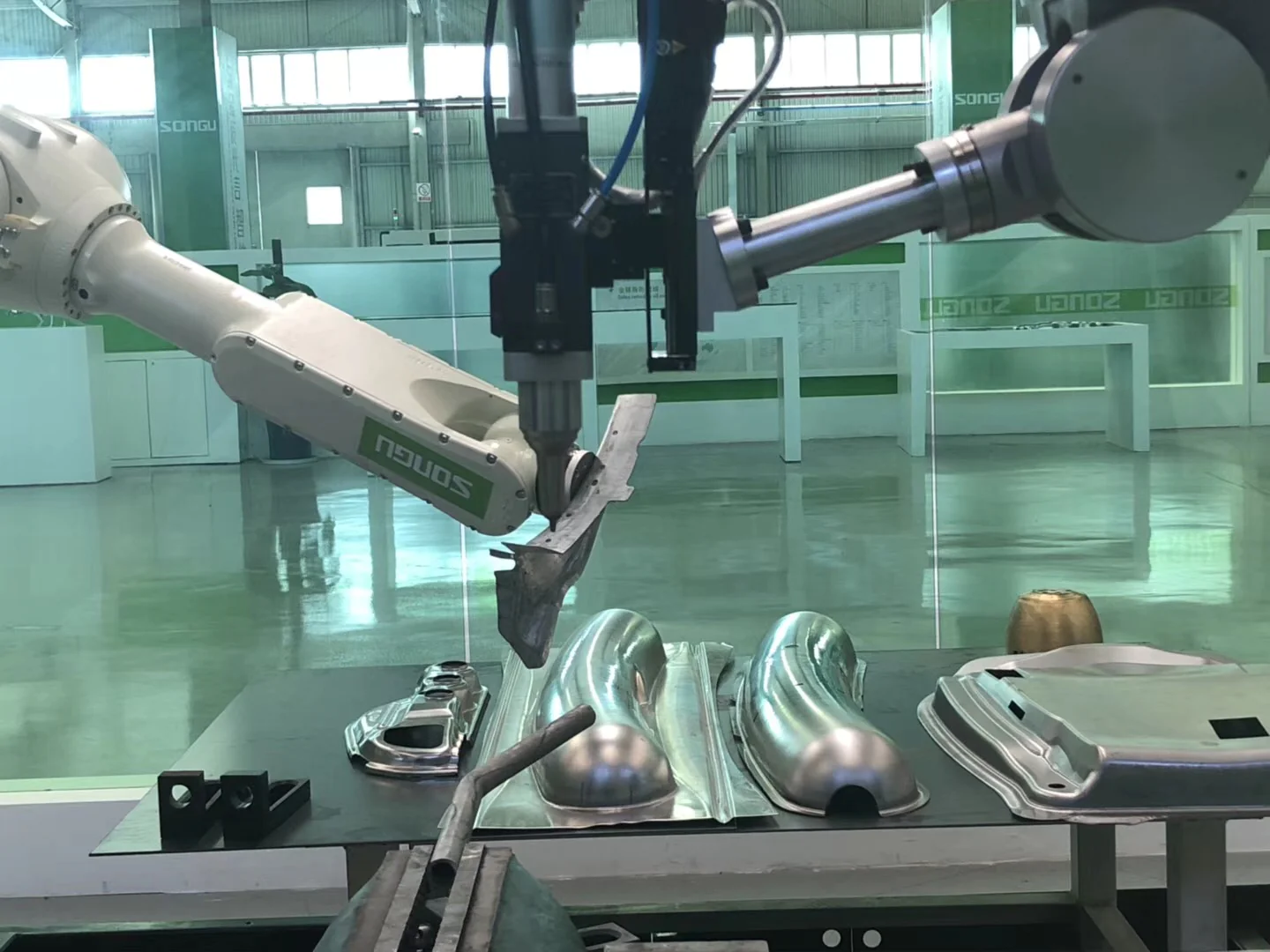

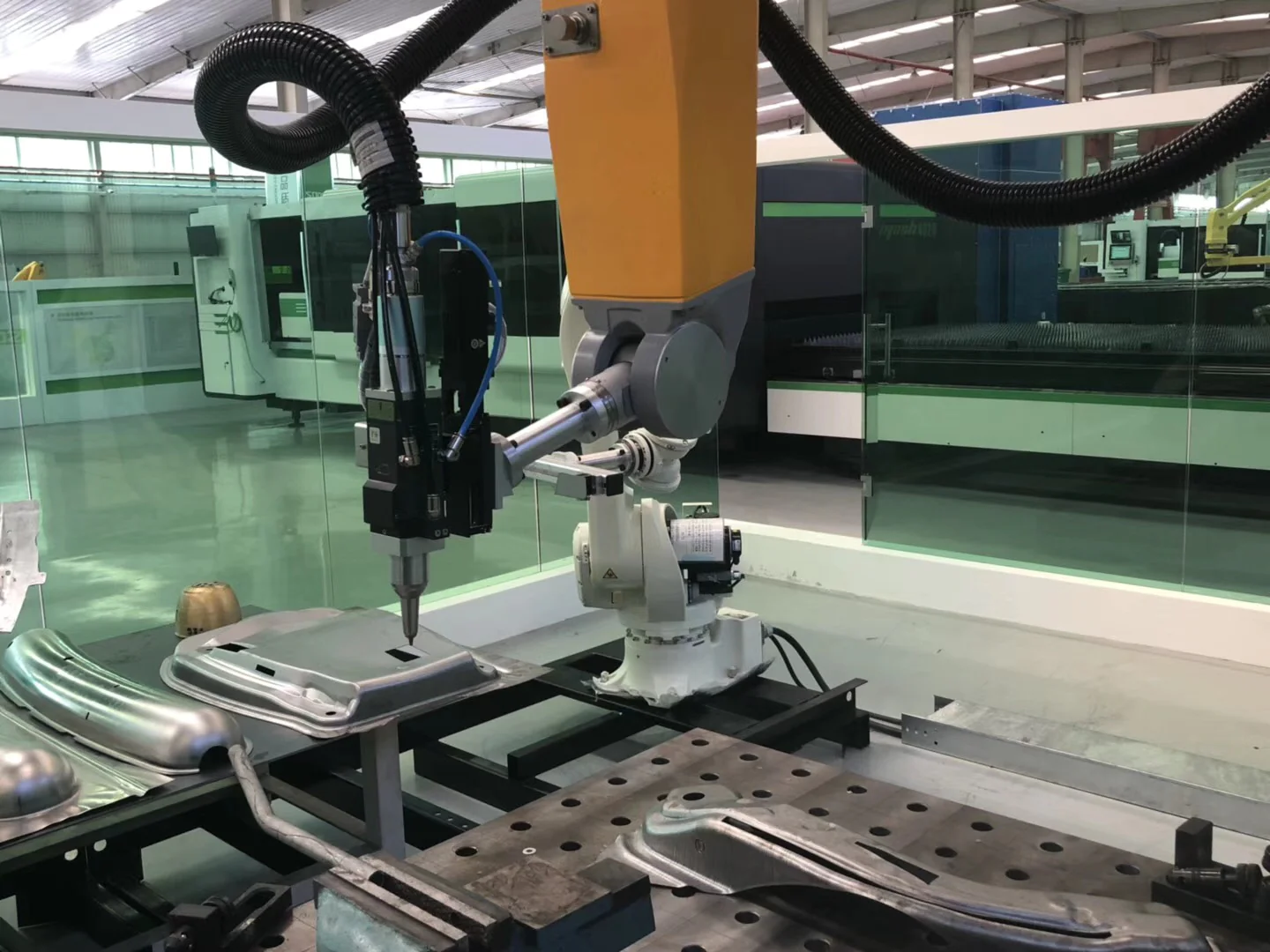

- High precision industrial robot: options of Swiss Staubli, Japan FANUC, Japan YASKAWA ect, equipped with mature robot control system, high accuracy, stability and reliability.
- IPG laser resonator 1.5KW~2KW.
- Raytools laser cutting head, PRECITEC head is optional.
- Safety protection: safety interlock design, guard fence available.
-
Remote diagnosis.
MACHINE VIDEO
Technical Parameter
|
Robot |
FANUC M-20iA |
| Output laser power | 1500-2000W |
| Arm span |
1511mm |
| Axis1 | 340º |
| Axis2 | 260º |
| Axis3 | 458º |
| Axis4 | 400º |
| Axis5 | 360º |
| Axis6 | 900º |
| Reposition accuracy | ±0.04mm (VDI/DGQ3441) |
| Standard load | 12kg |
| Max load | 20kg |
| Overall dimension | 7000×4000×3200 mm |
