Full List of Specifications (PDF)


TECH SPECIFICATIONS

Laser Power: 60W - 100W

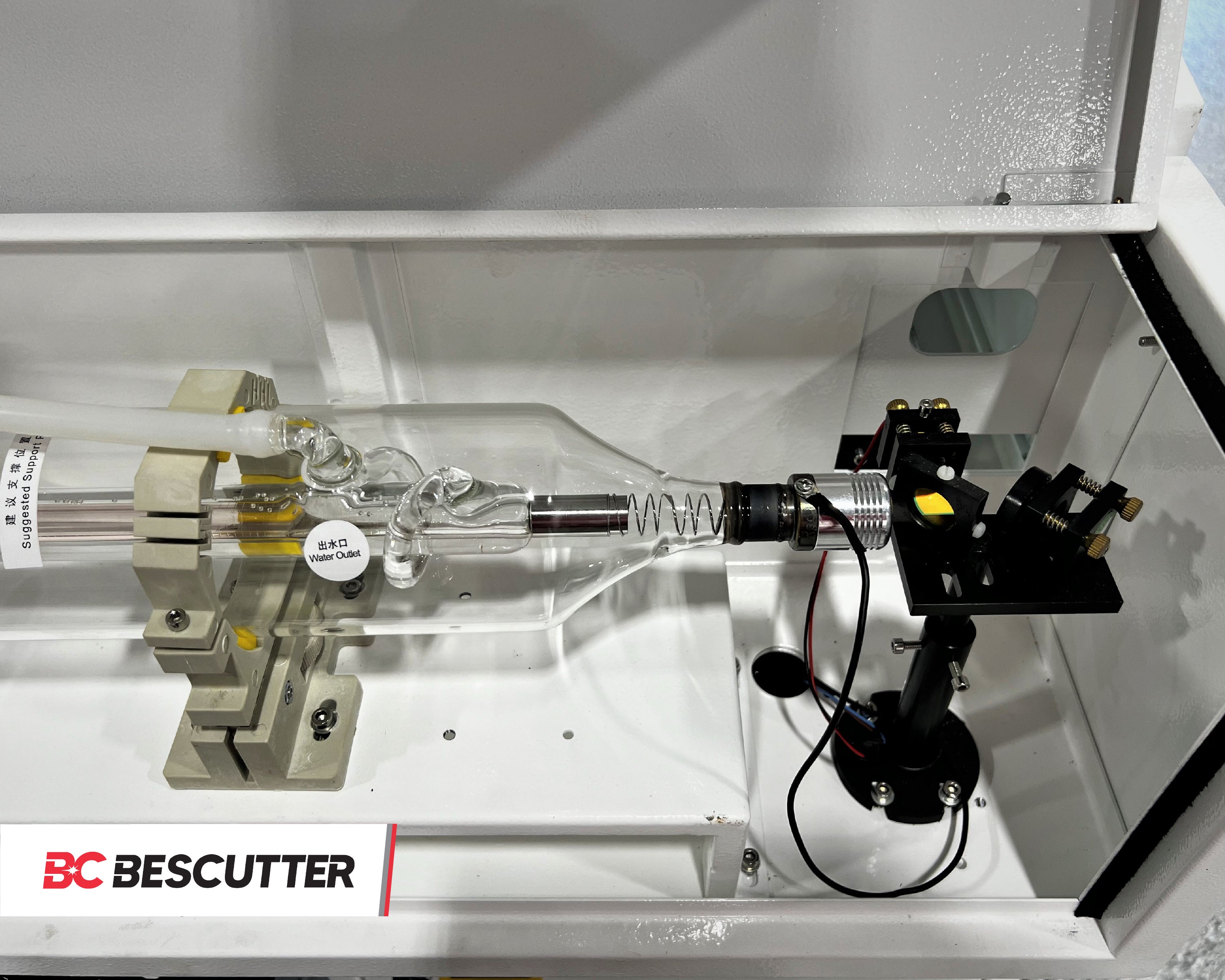

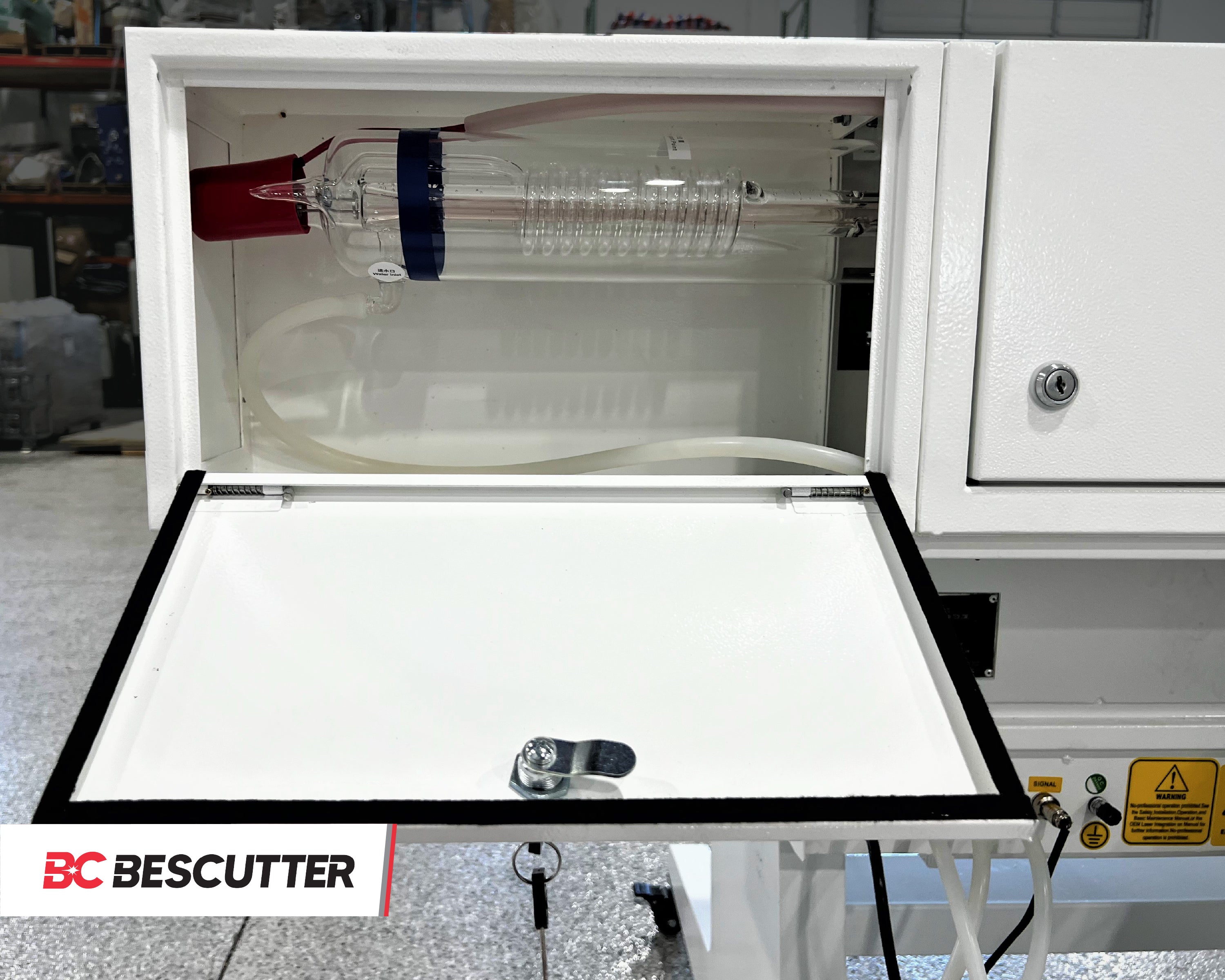

Laser:  CO2 sealed laser tube

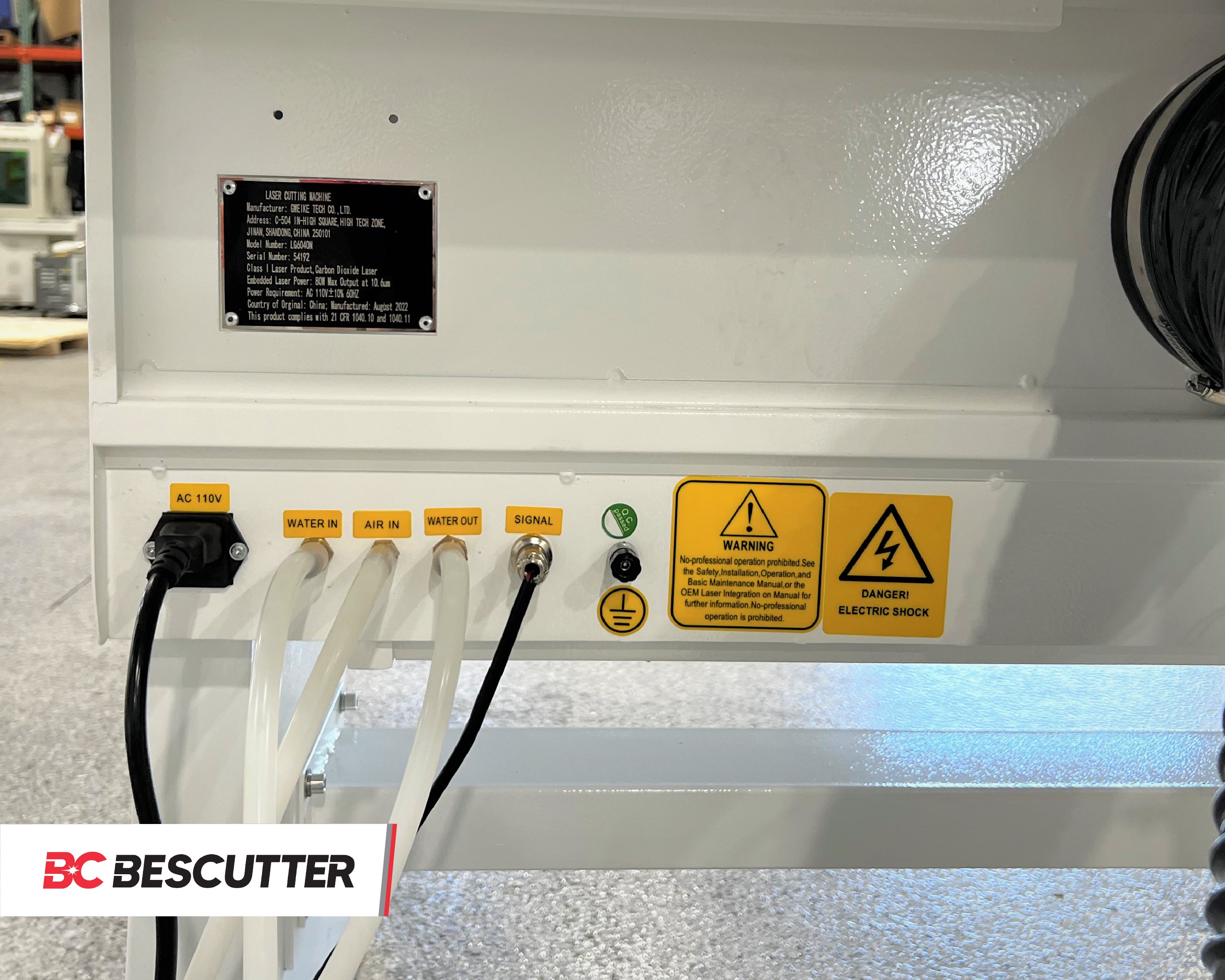

Power Supply: AC 110V (±10%) 60HZ or AC 220V (±10%) 60HZ

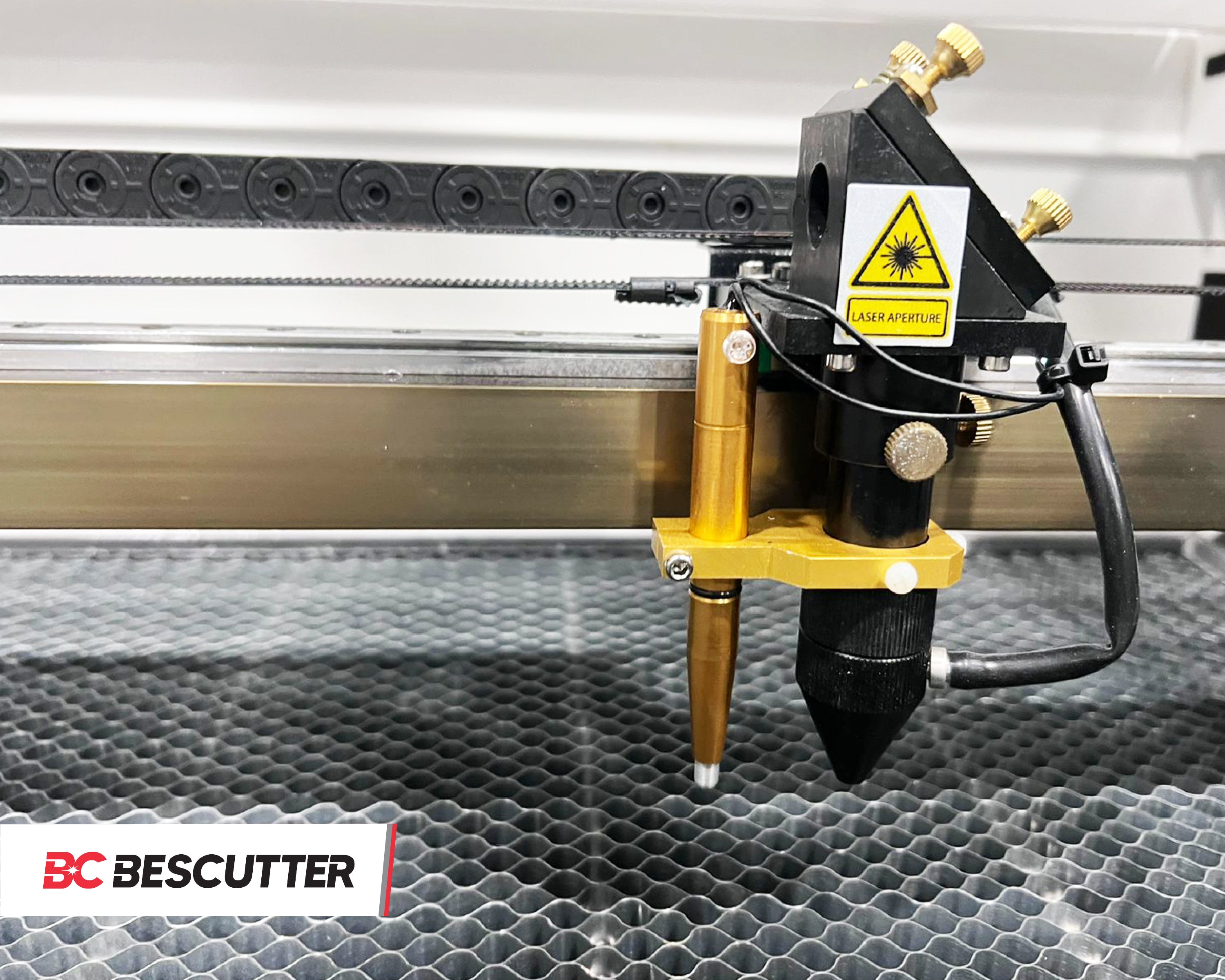

Focus Lens: 2" Focal Lens
Working A:rea 24"x 16" (600 mm x 400 mm)

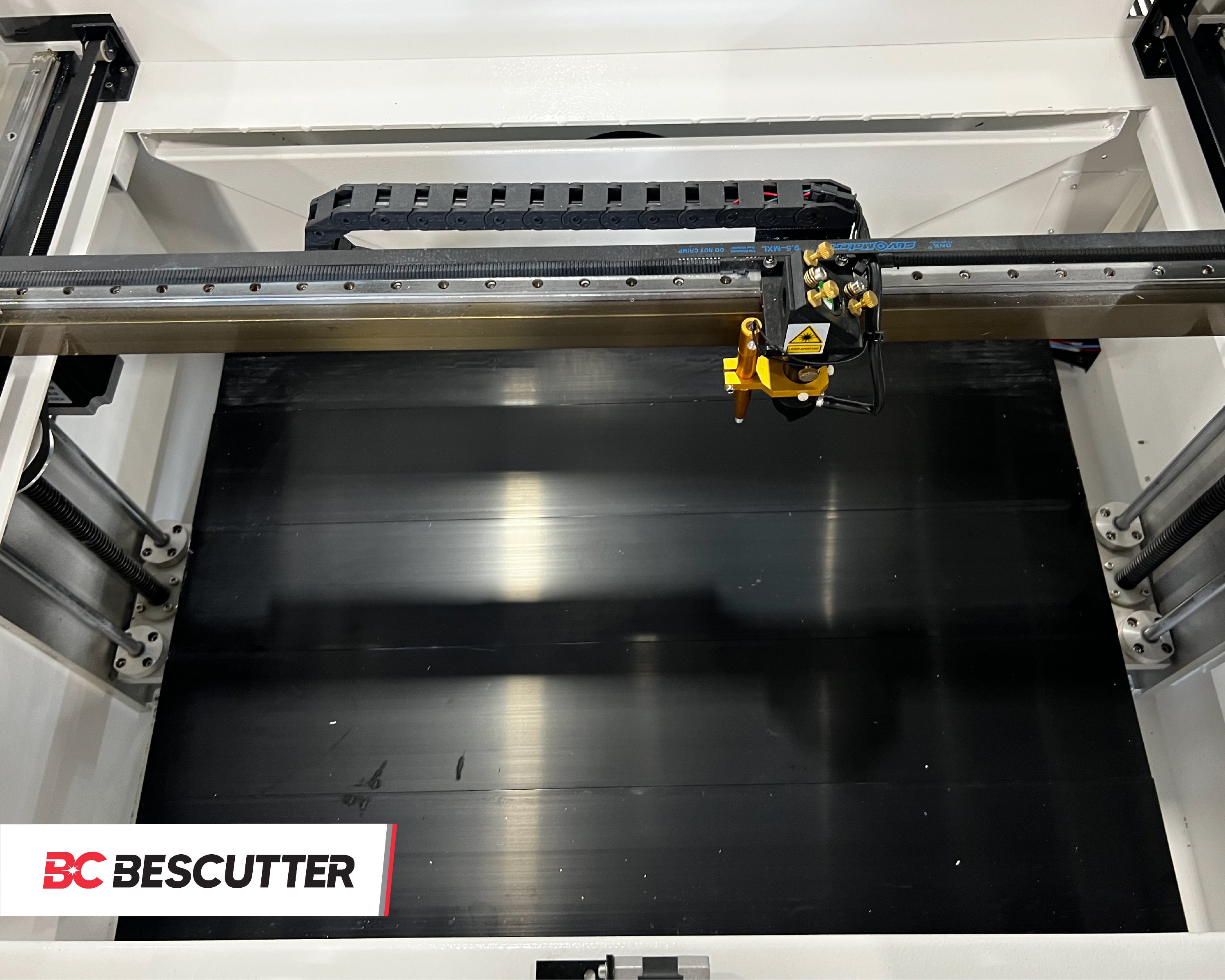

Working Platform: Knife-blade / honeycomb
Z-Axis Displacement: ±7in (±177 mm)
Wavelength: 10.6 um
Machine Dimensions: 54" X 36" X 23" (1371mm x 914mm x 584mm) / Without base: 54" X 36" X 42" (1371mm x 914mm x 1066mm)

MACHINE CONFIGURATION:

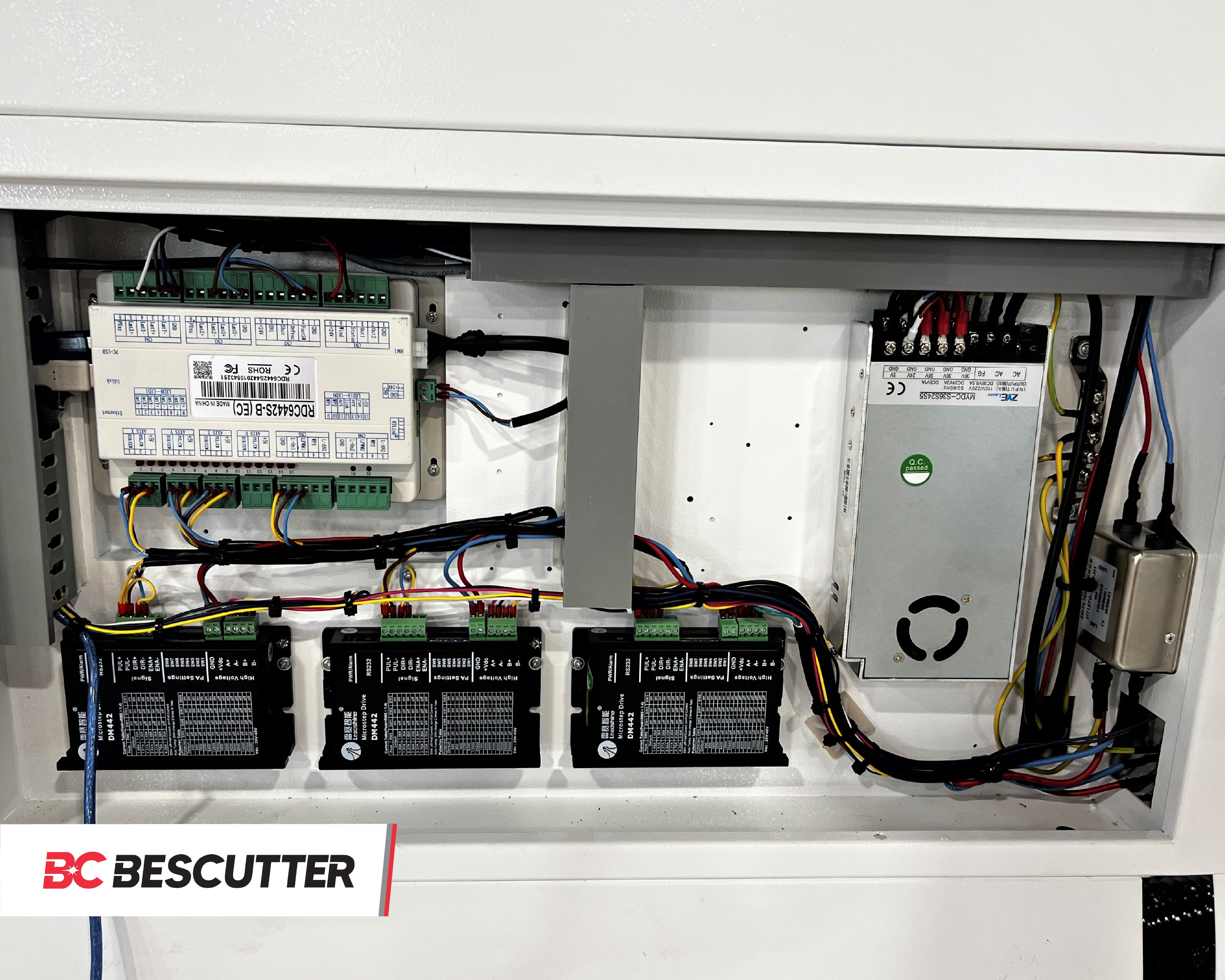

Controlling System: RuiDa Controller RDC6442S-B (EC)
Software: RDWorks / Compatible LightBurn®
Connection Method: USB cable / Ethernet cable
Software Compatibility: Photoshop, Illustrator, CorelDraw, and AutoCAD
Technical Support Service: Dedicated USA technical support Zoho desk platform
Limited Warranty: 2 Years on the machine body, auxiliary equipment, hardware, and software. / 1 Year on the laser tube. / Lenses and mirrors are not covered by warranty
Certification: CE, ISO
Class: Class 4 Laser
Optional Upgrades: Four-wheel rim drives rotary attachment

AUXILIARY EQUIPMENT INCLUDED:

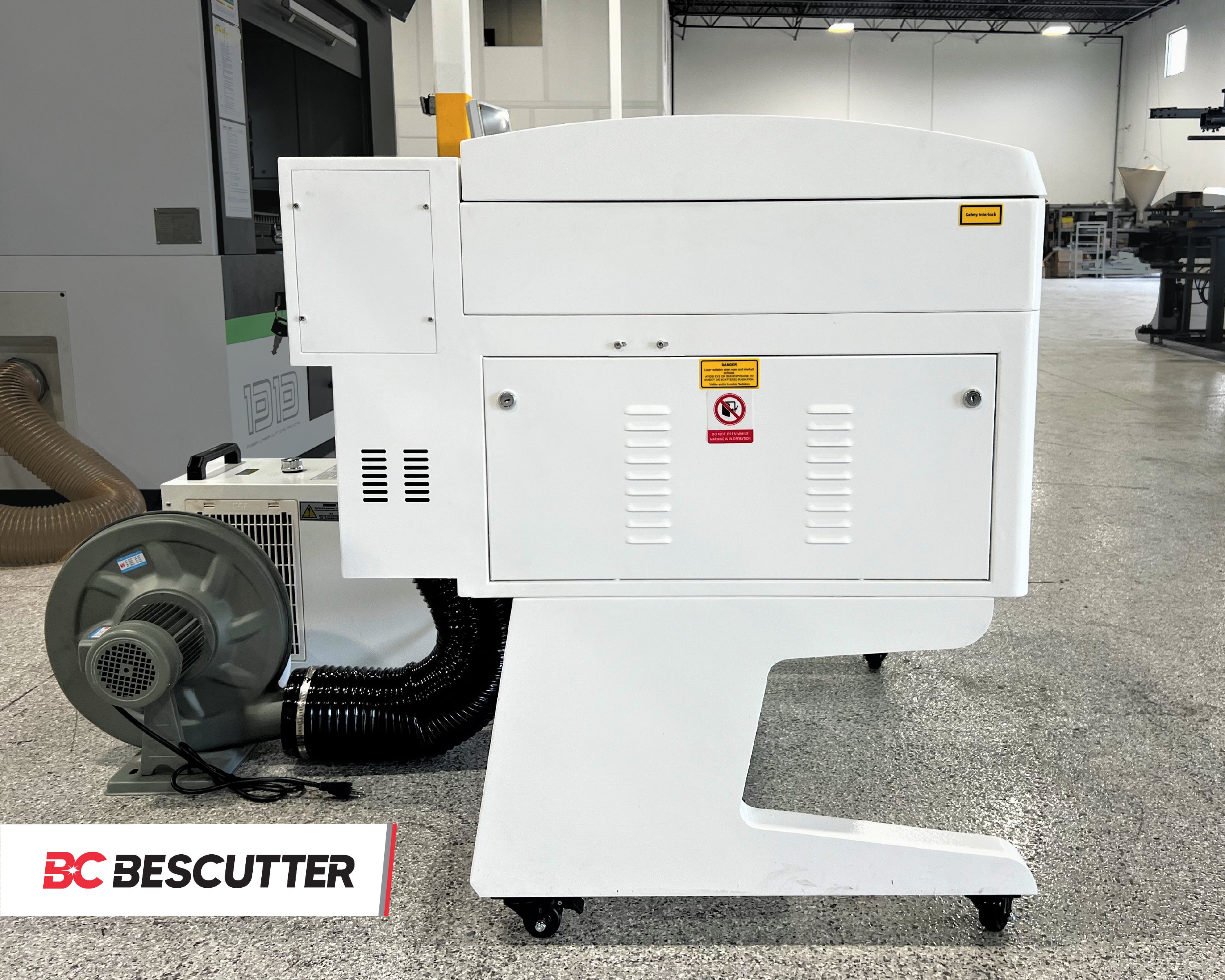

Extraction System: Exhaust Fan 1HP
Air Assistant: Air Compressor Hailea 110V

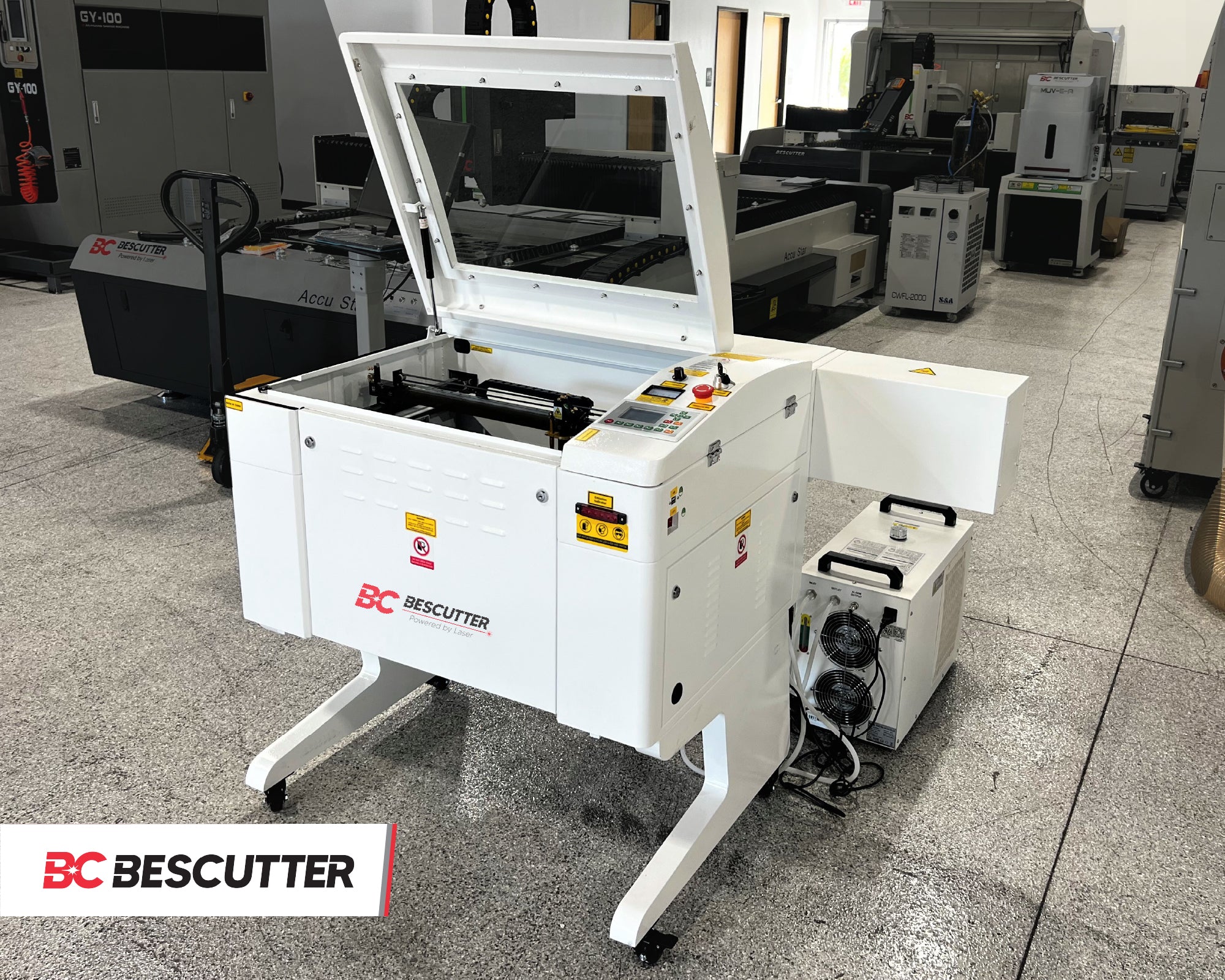

Water Chiller: S&A CW CW3000 Industrial Refrigerated Chiller

Materials can be cut or engraved with the our CO2 Laser Systems

Which list of materials can be cut or engraved with the CO2 laser

Customer Reviews

Based on 1 review Write a review

Engraving Wood Rings

For Quote or More Information

please fill this form:

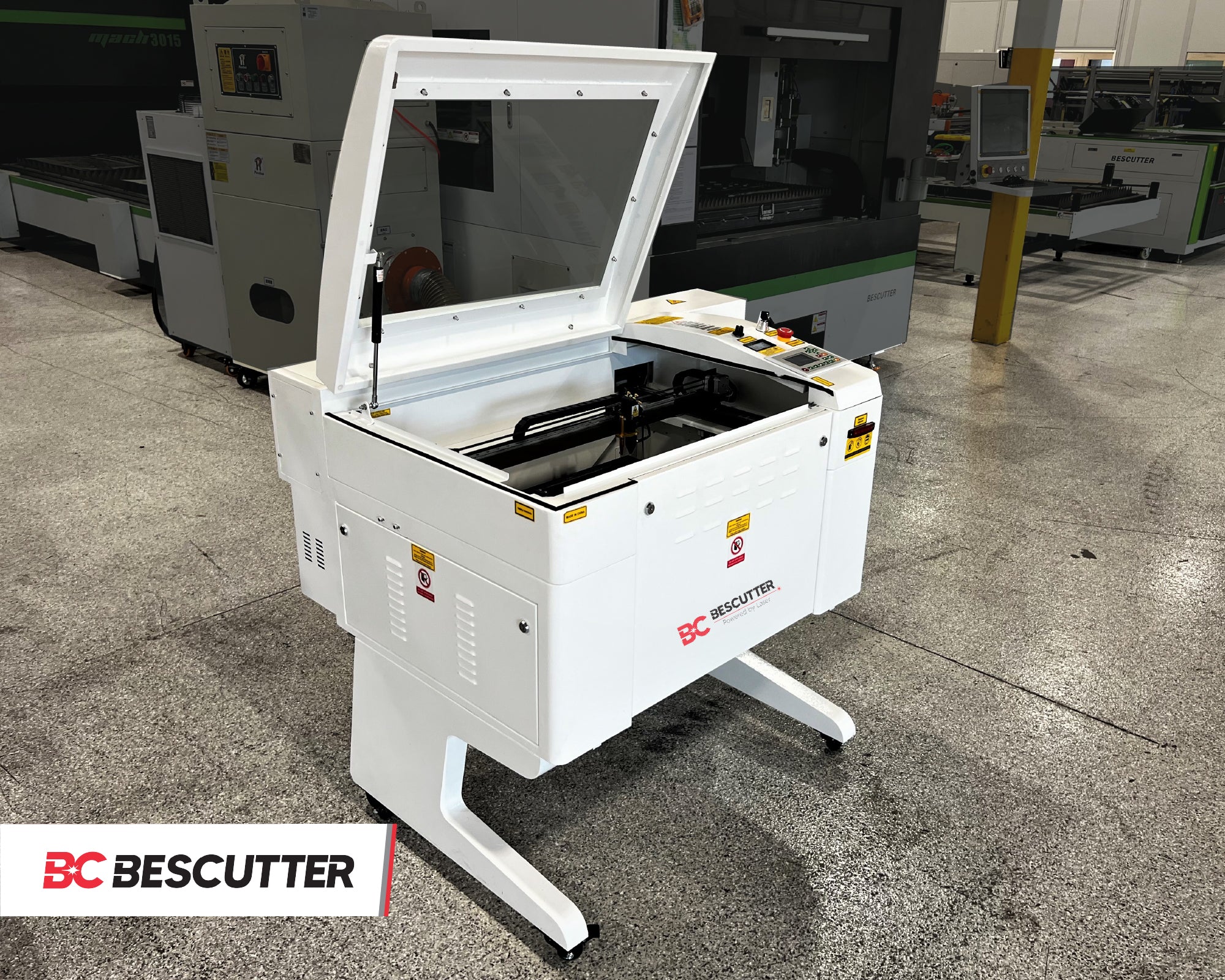

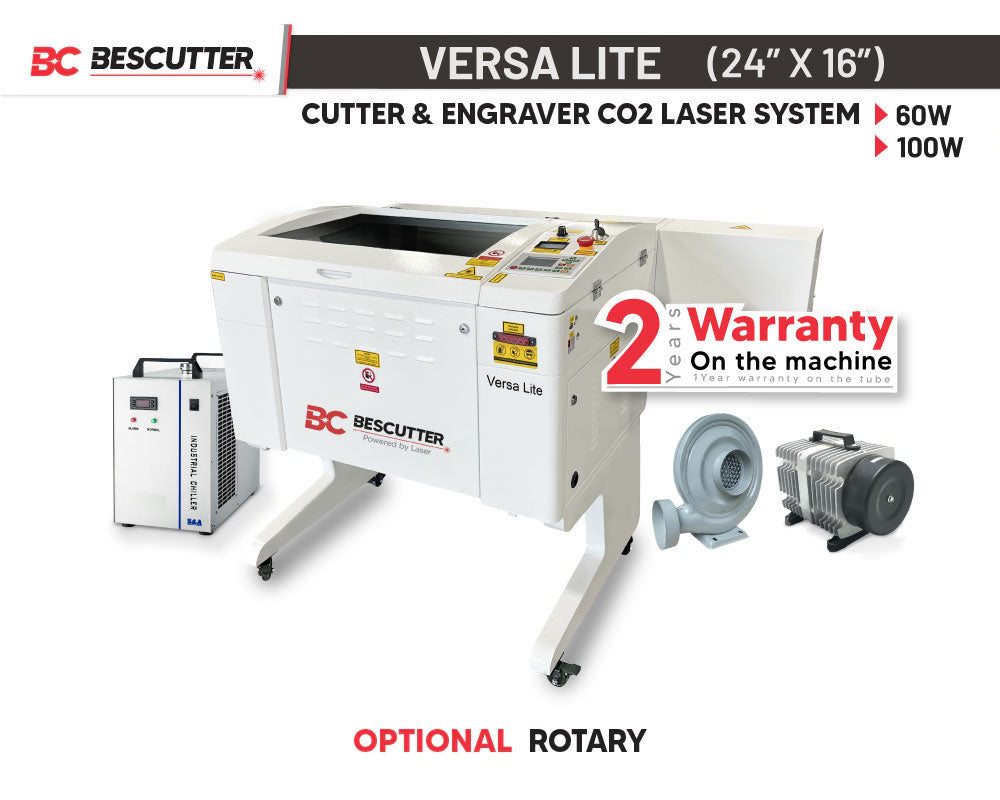

ALL INCLUDED Versa LITE 24"x16" 100W | CO2 LASER CUTTER & ENGRAVER | FAST DELIVERY
