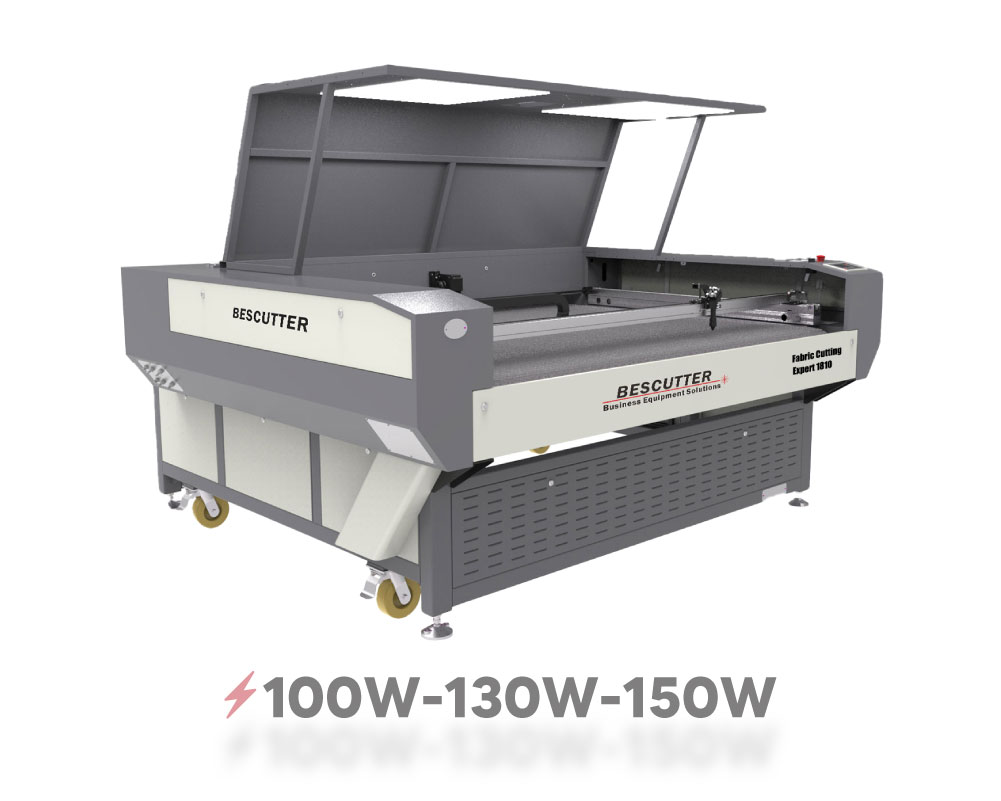

Fabric Cutting Expert 71"x 39" Camera Positioning with Conveyor Belt and Edge Auto-detecting Feeder

  • $23,000.00
  • Save $2,000


  • Features

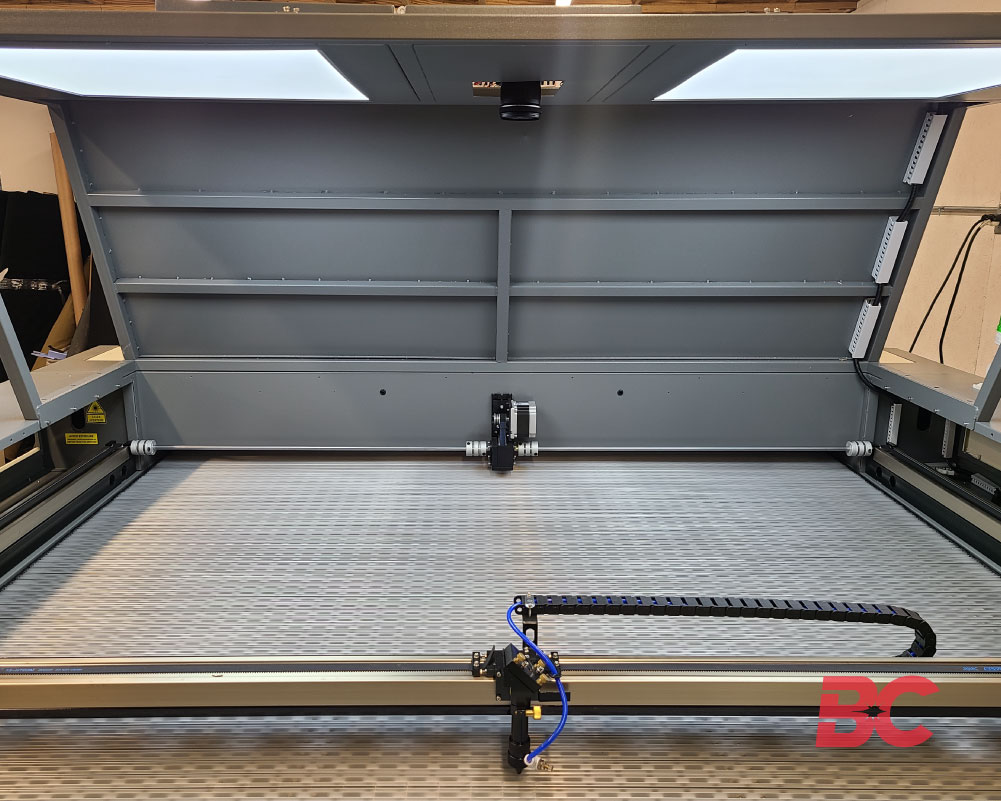

    • High-quality Canon digital camera: Achieve the full format single shot and image recognition, more efficiency of auto-positioning.
    • Full format image automatic recognition and generate contour template.
    • Camera calibration offset compensation: Correct the overall offset after the device has been running for a period of time to ensure the precise cutting.
    • Professional suction bellow design: Effectively absorb the materials & remove the dust.

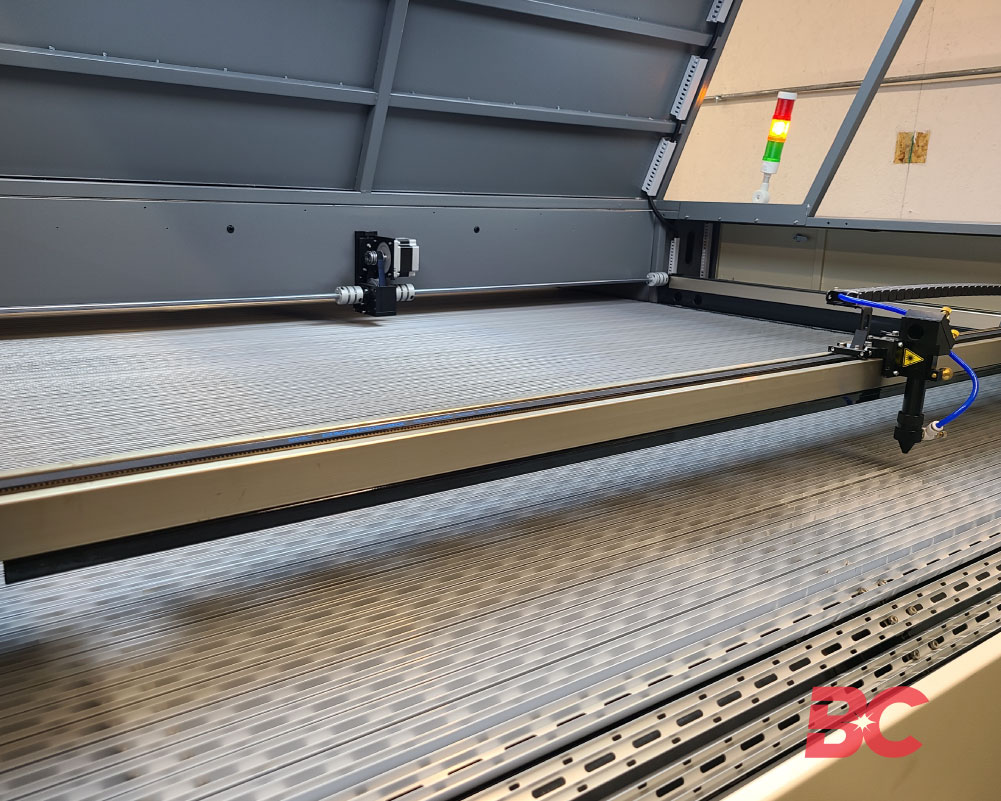

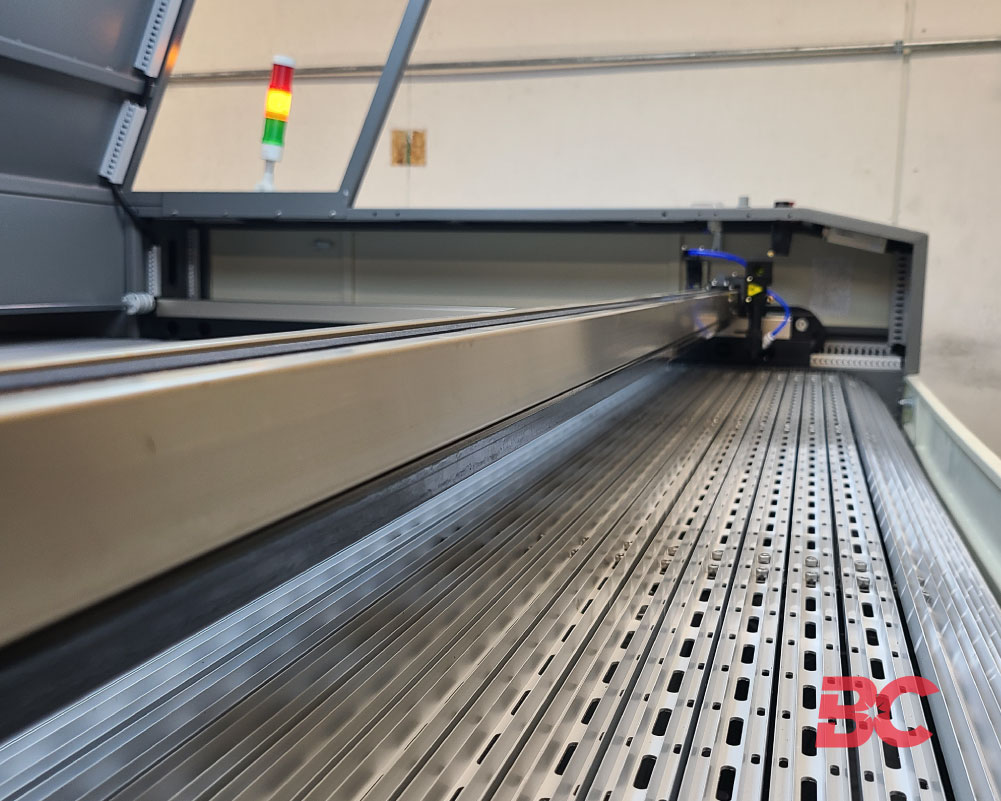

    • E-shaped blade mesh conveyor: Made by aviation aluminum, light weight & stable structure. The conveyor can be replaced one by one, easy cleaning & long service life.

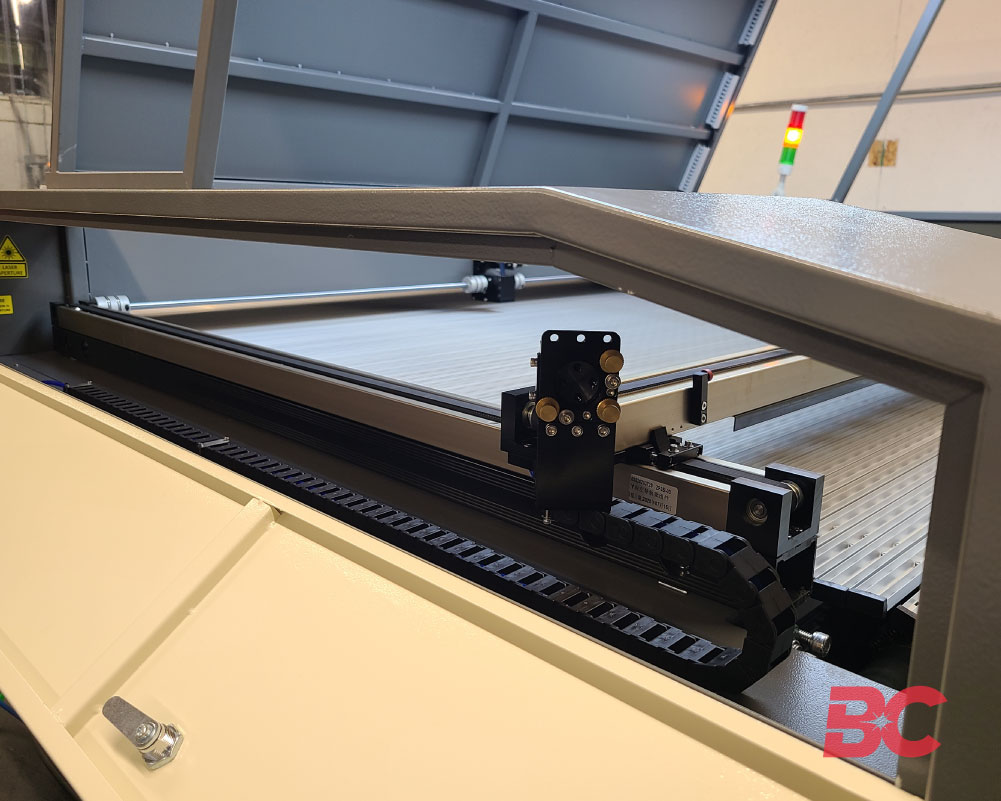

    • Monorail Cutting System: Reduce the wear between the pulley and the guide rail, achieving high efficiency & high precision and durability

    ___________________________________________________________________________________________

    Technical Parameters

    Working Area 71" x 39" (1800 mm x 1000 mm)

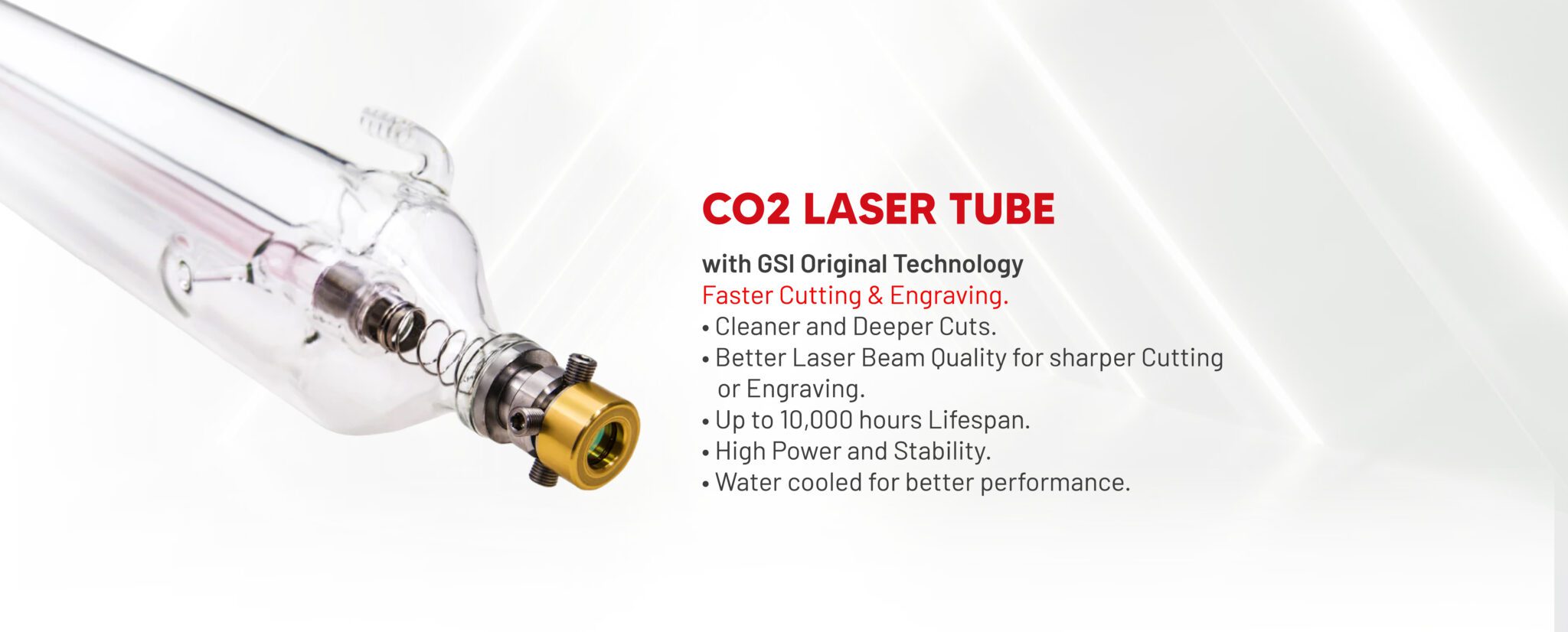

    Laser Power 100-150 W (CO2 sealed glass laser tube, 10.6 um wavelength)
    Re-positioning Precision ±0.1 mm
    Working Speed 0-400 mm/s
    Min. Line Width 0.15-0.3 mm
    Power Supply 220V/60Hz
    Weight 2050 lbs (930 kg)
    Dimensions 85" x 97" x 85" (2150 x 2450 x 2150 mm) L x W x H
    Drive System Inner Rail
    Motor Stepper


    Machine Configurations

    • Reflective Mirror: 3 sets of Φ25 mm×3 mm
    • Focusing Lens: 2.0"
    • Camera: Cannon
    • Software: Smart Vision
    • Auto-feeding Conveyor: E-shaped blade mesh conveyor
    • Computer: Lenovo

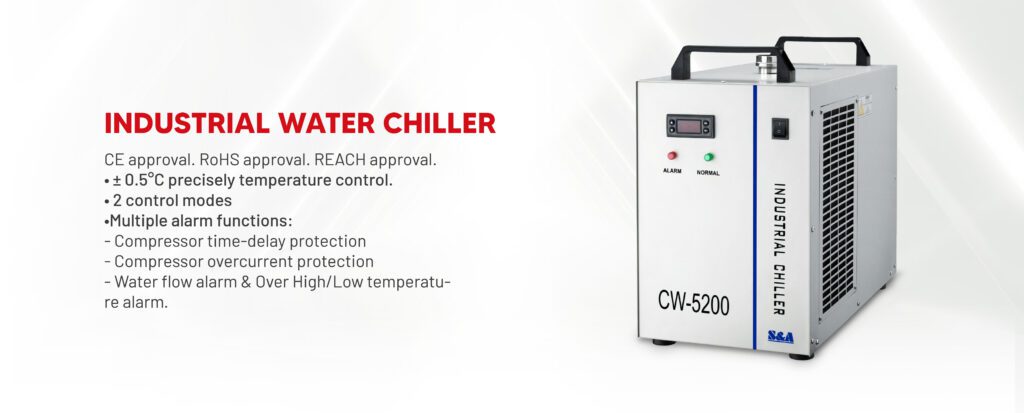

    • Auxiliary Equipment:750 W Exhaust fan & 135 W Air Pump & CW 5200 Water Chiller. (If you choose TWO laser heads, you will have TWO sets of exhaust fan blowers, air pumps and water chillers.  )
