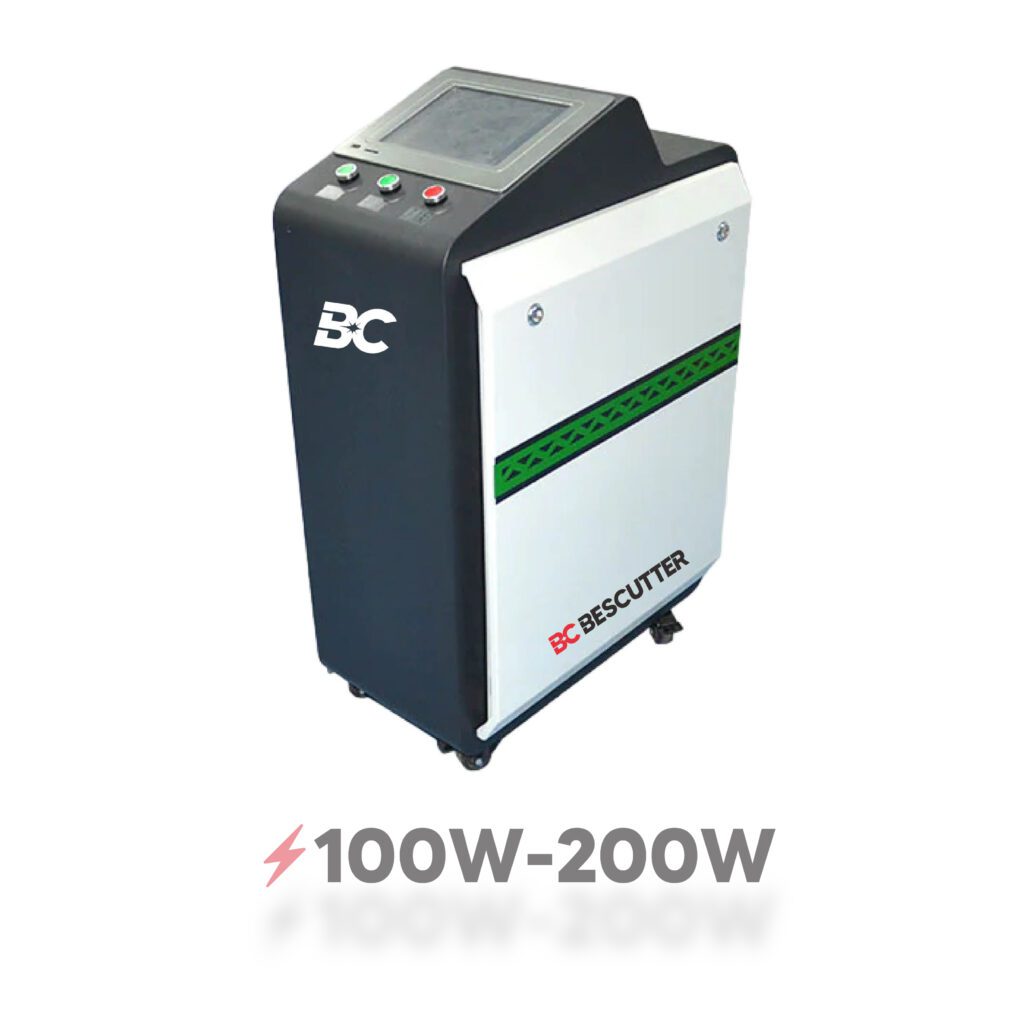

BesCutter Portable 100-200W Laser Cleaning Machine
3200000
BesCutter Portable 100-200W Laser Cleaning Machine
3200000
Portable Fiber Laser Cleaning Machine 100W
| Model | BK-LC100 |
| Laser Source | JPT |
| Laser Power(W) | 100 |
| Wavelength(nm) | 1064 |
| Output Power(W) | 100 |
| Max.pulse energy(mJ) | 1.5 |
| Full Power Repetition Rate Range(kHz) | 67-1000 |
| Pulse Repetition Range(kHz) | 1-1000 |
| Pulse Duration(ns) | 10-350 |
| Cooling Method | Air Cooling |
| Spectral width@3dB(nm) | <15 |
| Beam Diameter（mm) | 6±0.5 |
| Power Adjustment Range(%) | 0-100 |
| Working Temperature/ Celsius | 0-40 |
| Scan Width (mm) | 1-110 |
| Length of Fiber(m) | 3m / 10Ft |
| Laser Class | IV |
| Laser Cleaning Efficiency | ||||||||
| 60W - 200W | ||||||||
| Laser power(W) | 60 | 70 | 100 | 120 | 150 | 200 | ||
| Peak Power(KW) | 15 | 16 | 18 | 18-30 | 18-40 | 40 | ||
| Focus Sopt(mm) | <1 | |||||||
| Rusting(20um) | 2.0㎡/h | 3.0㎡/h | 4.0㎡/h | 4.8㎡/h | 6.0㎡/h | 8.0㎡/h | ||
| Oli Contamination (20um) | 2.5㎡/h | 3.5㎡/h | 4.5㎡/h | 5.3㎡/h | 6.5㎡/h | 8.5㎡/h | ||
| Aluminum Oxide Film | 1.5㎡/h | 2.0㎡/h | 3㎡/h | 3.6㎡/h | 4.5㎡/h | 6㎡/h | ||
| Rubber Residues | 4-5㎡/h | 6-7㎡/h | 8-10㎡/h | 9-12㎡/h | 11-15㎡/h | 13-18㎡/h | ||
| 300W - 1000W | ||||||||
| Laser power(W) | 300W/500W/1000W | |||||||
| Rusting Cleaning Efficiency | 10-60㎡/h | |||||||
| Oli Contaminated Cleaning Efficiency | 10-90㎡/h | |||||||
