TECHNICAL SPECIFICATIONS:

Model Number: WXS300W-CO2
Cutting Area: 1525mm X 3040mm 5Ft x 9.97FT
Laser Generator: 300W CO2 Glass Laser Tube (ECL300)
Laser Head: Multi Focus Laser Head

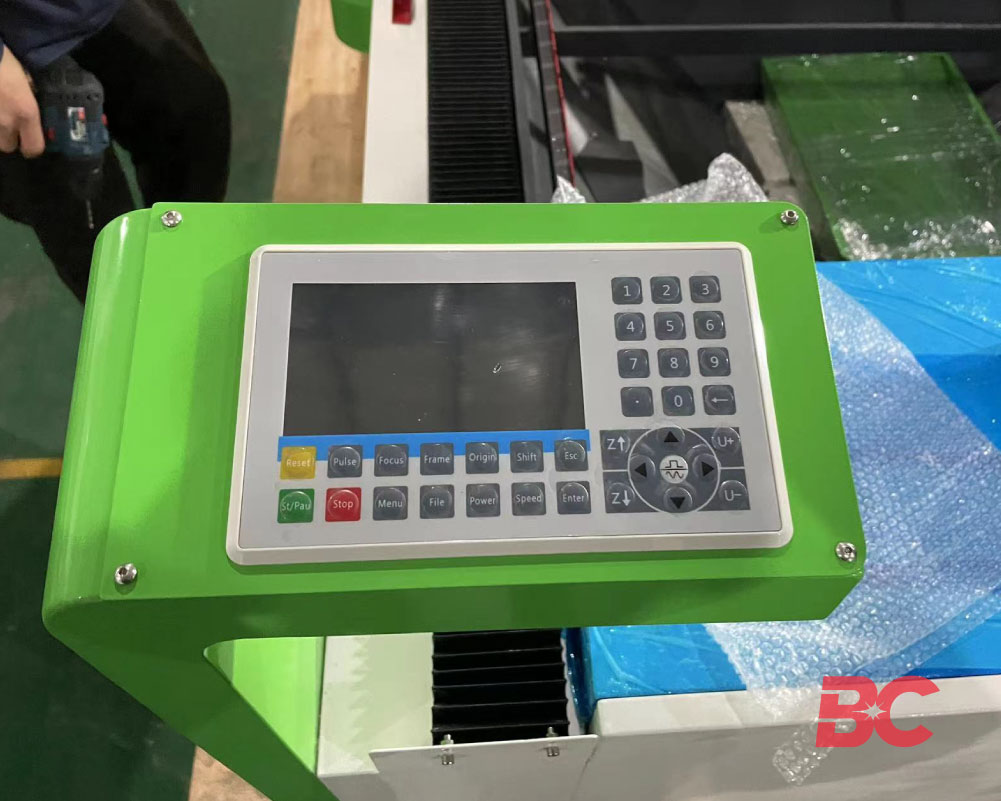

Control System: Ruida RDC6445G
Water Chiller: S&A CW6000
XYZ Servo Motors: YAKOTEC, Y 2X750W, X 1X400W
High Quality X, Y Rack and pinion, Guide Rails: PMI(Taiwan)
Ball Screw in X axis:  TBI(Taiwan)
Peumatic Control: SMC
Electrical Element: SMC Electric
Weight: 2650 lbs
 X/Y Axis Positioning Accuracy: <=0.05 mm/m
X/Y Axis Repeated Positioning Accuracy: <=0.05mm
Traverse Speed:

1600 inch/min





Which list of materials can be cut or engraved with the CO2 laser

Technical Support CO2 Laser Machine Cutting Engraving Know-how Works Calibration Parameters

For Quote or More Information

please fill this form:

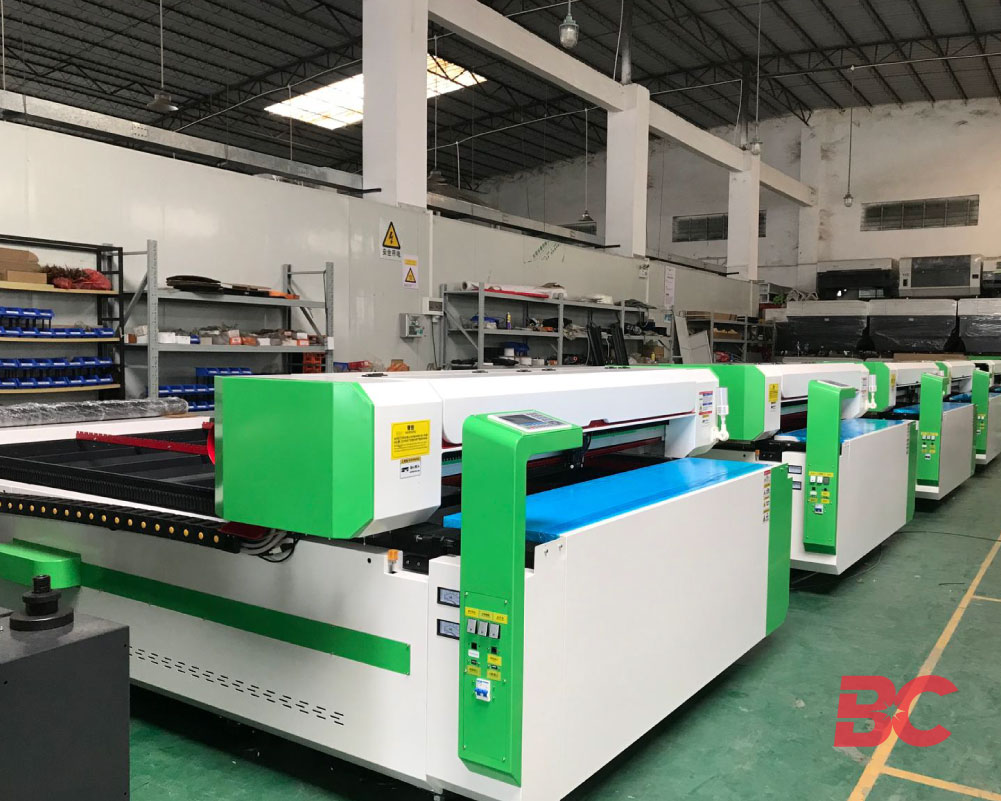

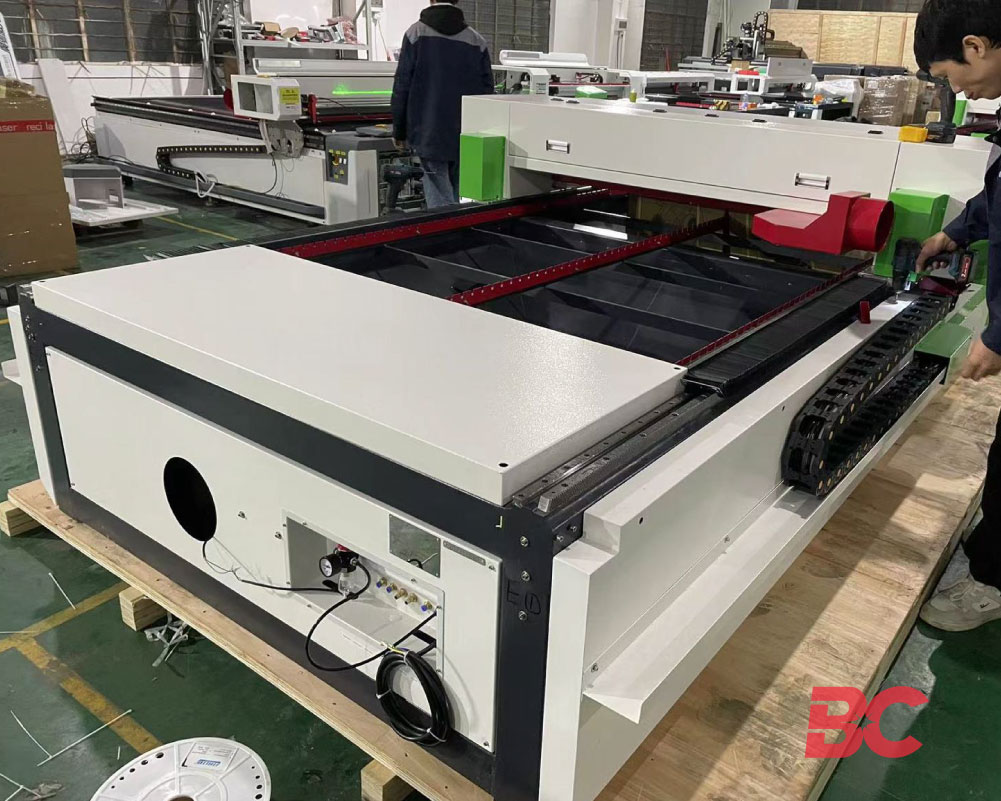

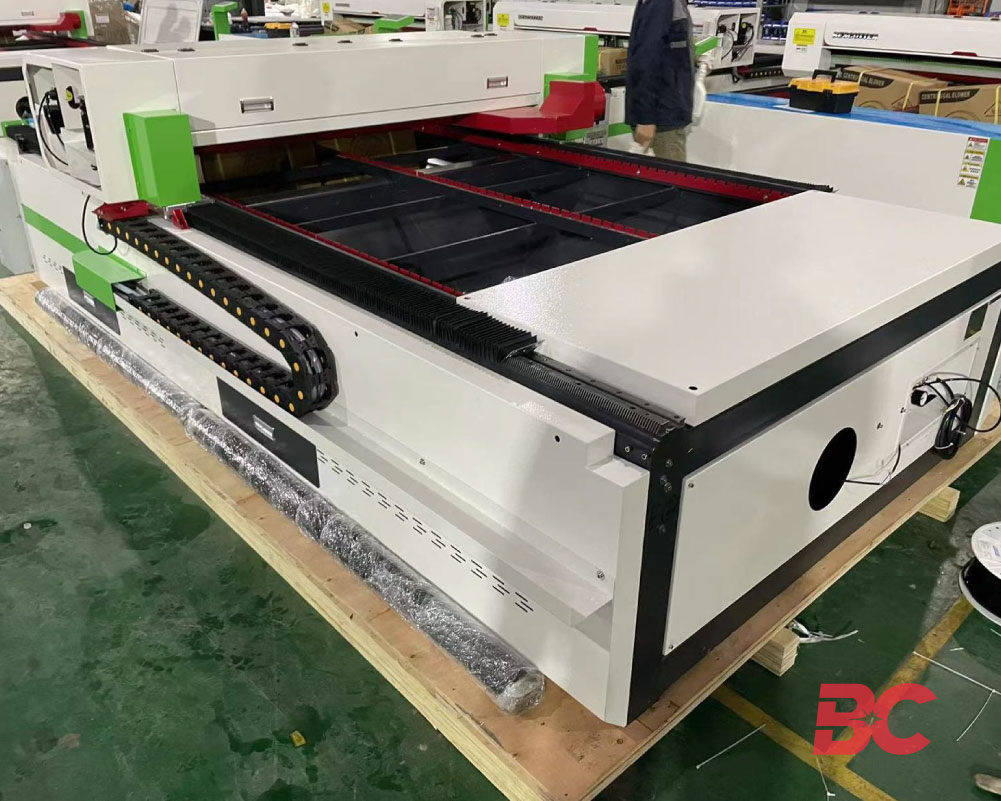

ALL SYSTEM INCLUDED BESCUTTER WORKFORCE X SERIES 1530 | 300W | CO2 LASER CUTTER SYSTEM DOUBLE WORK PLATFORM
