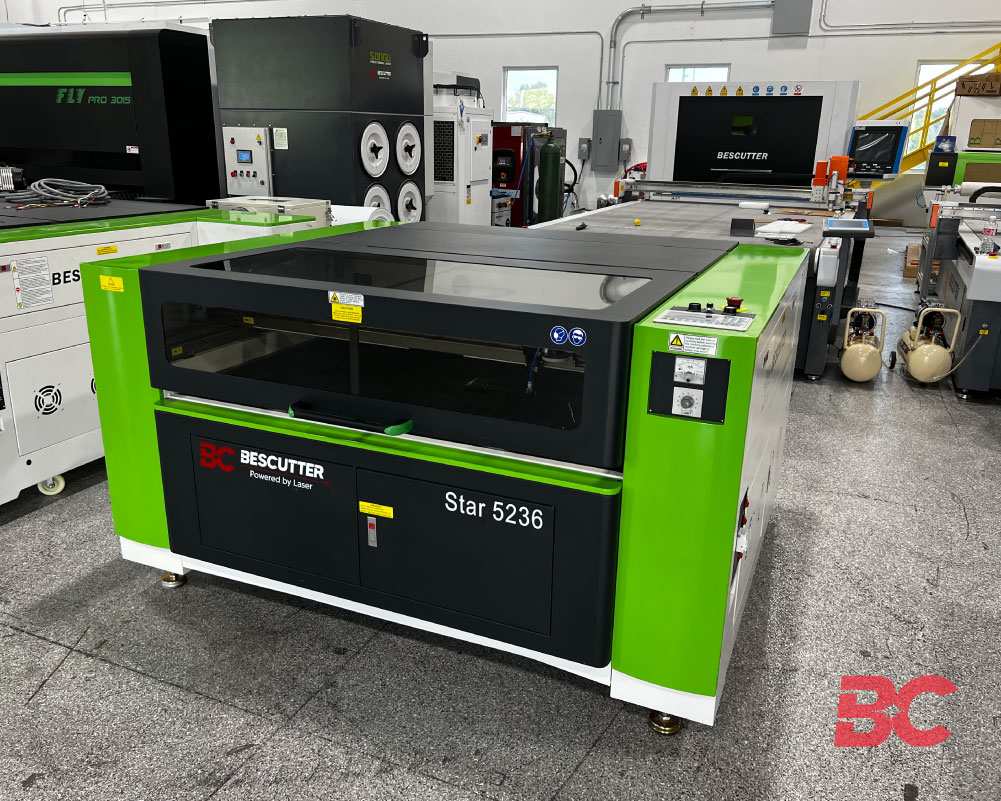

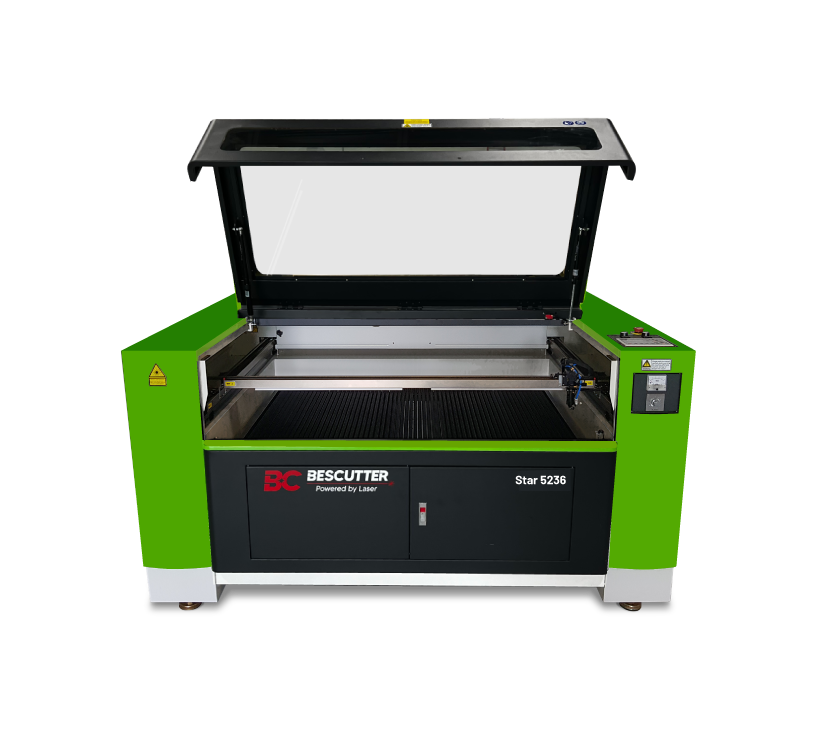

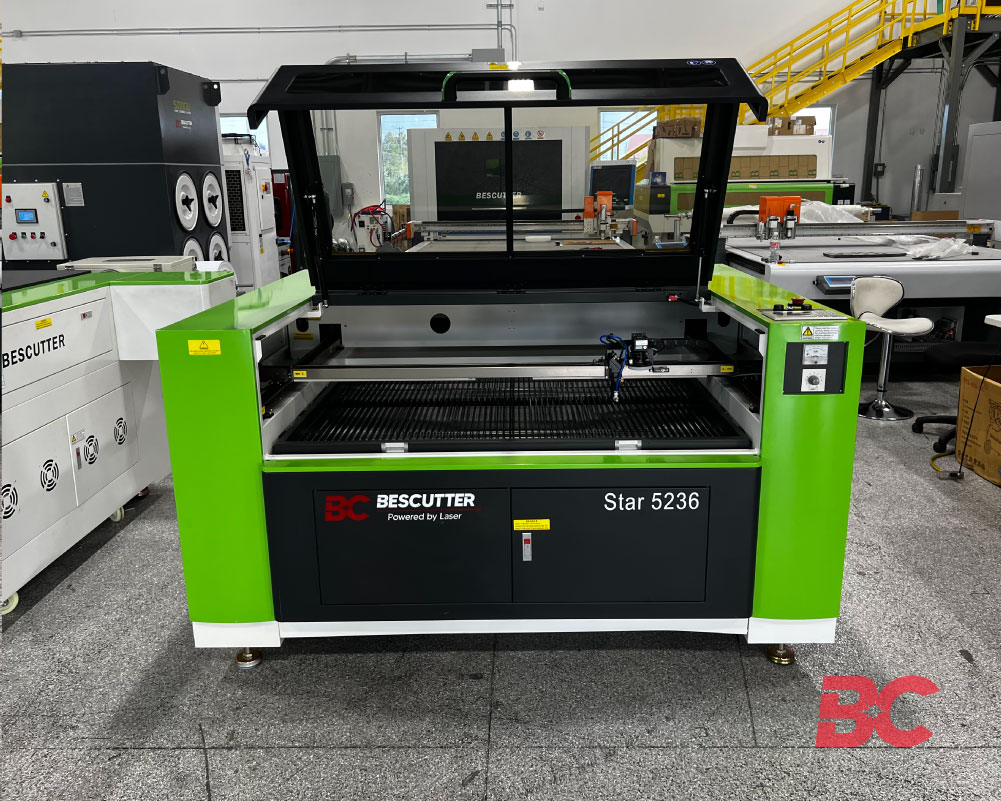

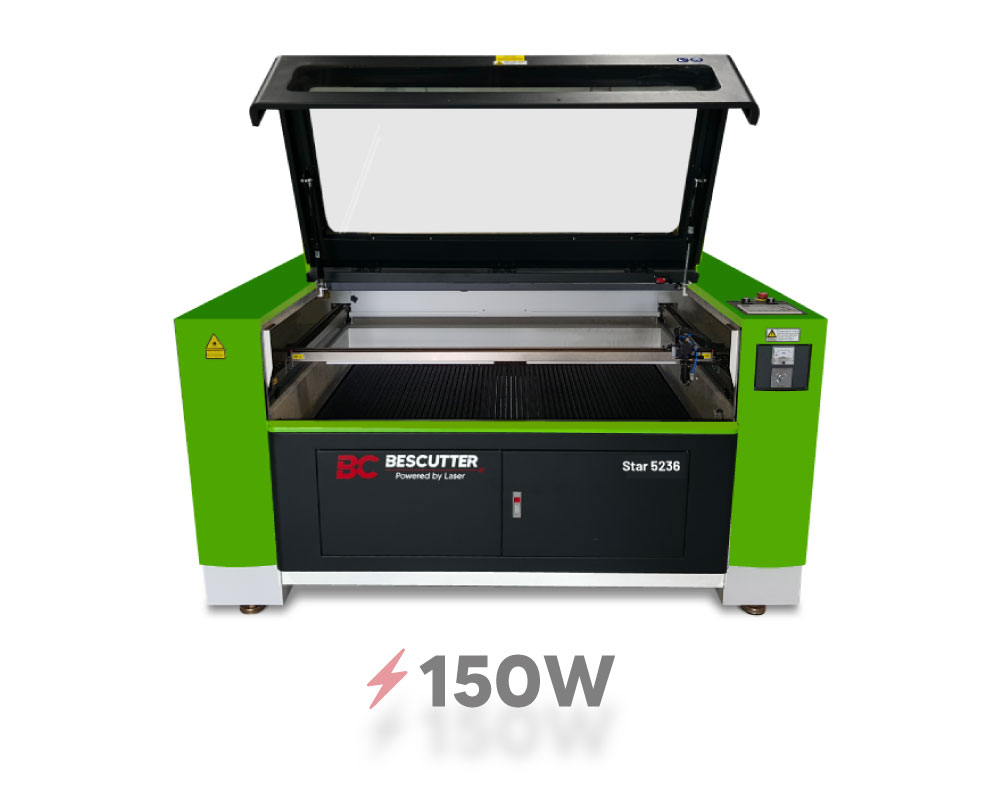

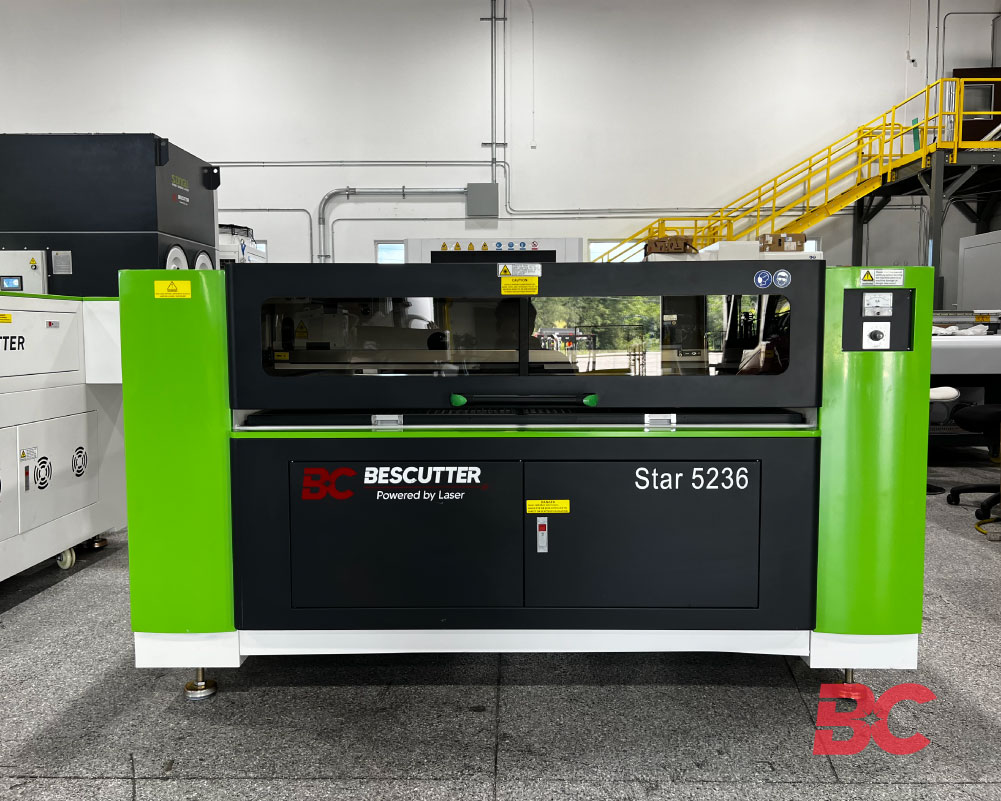

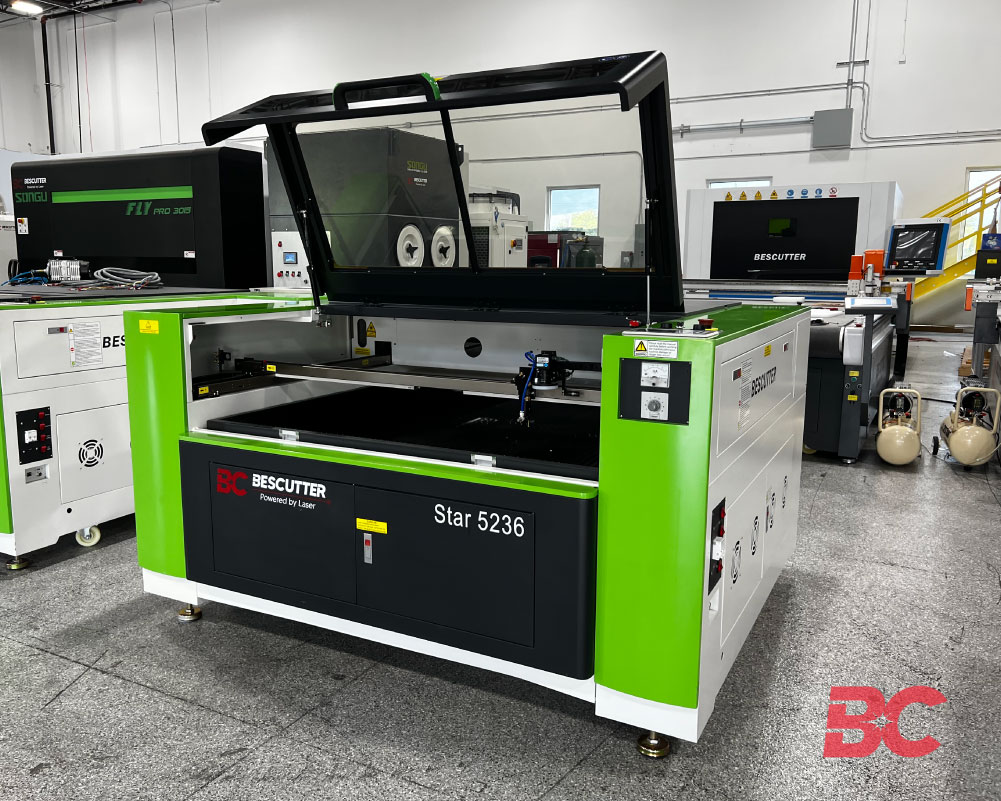

ALL SYSTEM INCLUDED BESCUTTER VERSA STAR 52"X36" 150W CO2 LASER CUTTER & ENGRAVER | FAST DELIVERY | LEADSHINE STEPMOTORS
1295000
1495000
ALL SYSTEM INCLUDED BESCUTTER VERSA STAR 52"X36" 150W CO2 LASER CUTTER & ENGRAVER | FAST DELIVERY | LEADSHINE STEPMOTORS
1295000
1495000
LASER SYSTEM VIDEO
Full List of Specifications (PDF)
TECHNICAL SPECIFICATIONS:
| Laser Power: | 150W |
| Laser Tube Type: | ECO2, GSI Advance Technology, JK LASER® CO2 laser tube, 10.6 µm wavelength (ECO2) Lifetime: 10,000 hours Approx |
| Power Supply: | AC 110V (±10%) 60HZ |
| Focus Lens: | 2.5" Focal Lens |
| Working Area: | 52" x 36" (1300 x 900 mm) |

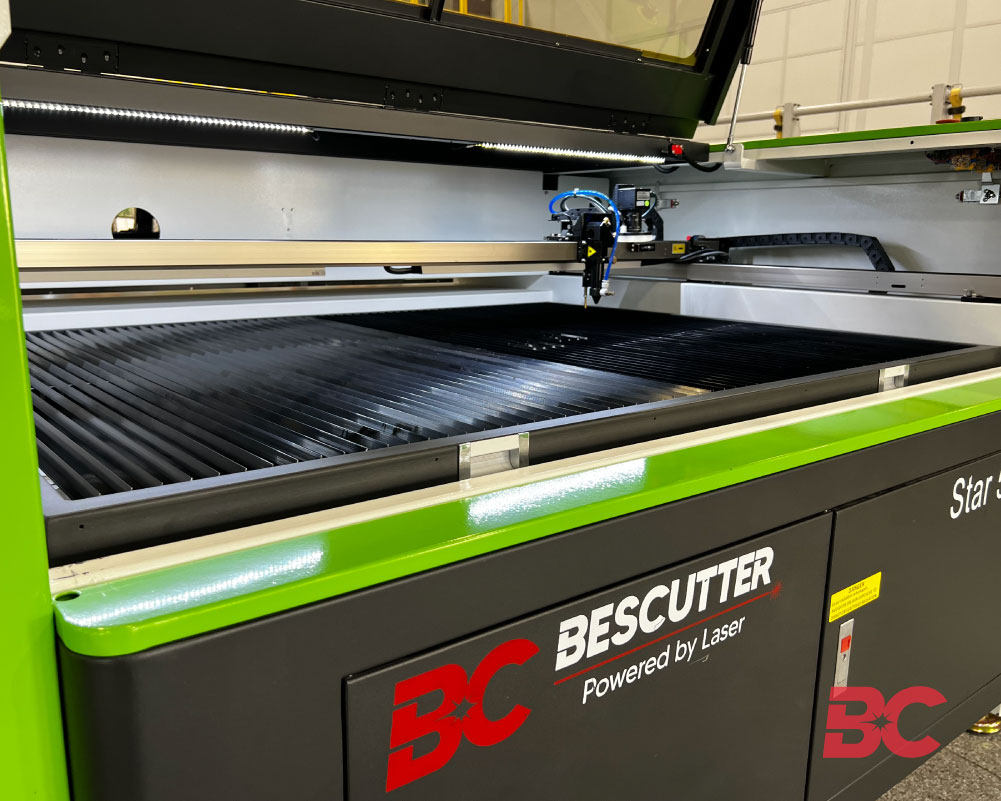

| Working Platform: | Knife-blade / Multi-Purpose |
| Z-Axis Displacement: | ±8in (±200 mm) |
| Max Moving Speed: | 18 in/s (500 mm/s) |
| Pass-Through Door: | Pass-Through 1 1/2in x 52in for 4x8 Sheet Materials |
| Transmission: | Belt/ Stepper motor LeadShine |
| Operation Mode: | Control Panel RuiDa Controller RDC6445G (EC) / SmartCarve |
| Machine Dimensions: | 75" x 64" x 45" (1900 x 1625 x 1143 mm) |
| Net Weight: | 1250 lb (498 kg) |
| Gross Weight: | 1400 lb (589 kg) |
| Package Dimensions: | 81" x 70" x 50" (2057mm x 1778mm x 1270mm) |
MACHINE CONFIGURATION:
| Controlling System: | RuiDa Controller RDC6445G (EC) |
| Software: | RDWorks / Compatible LightBurn® / SmartCarve |

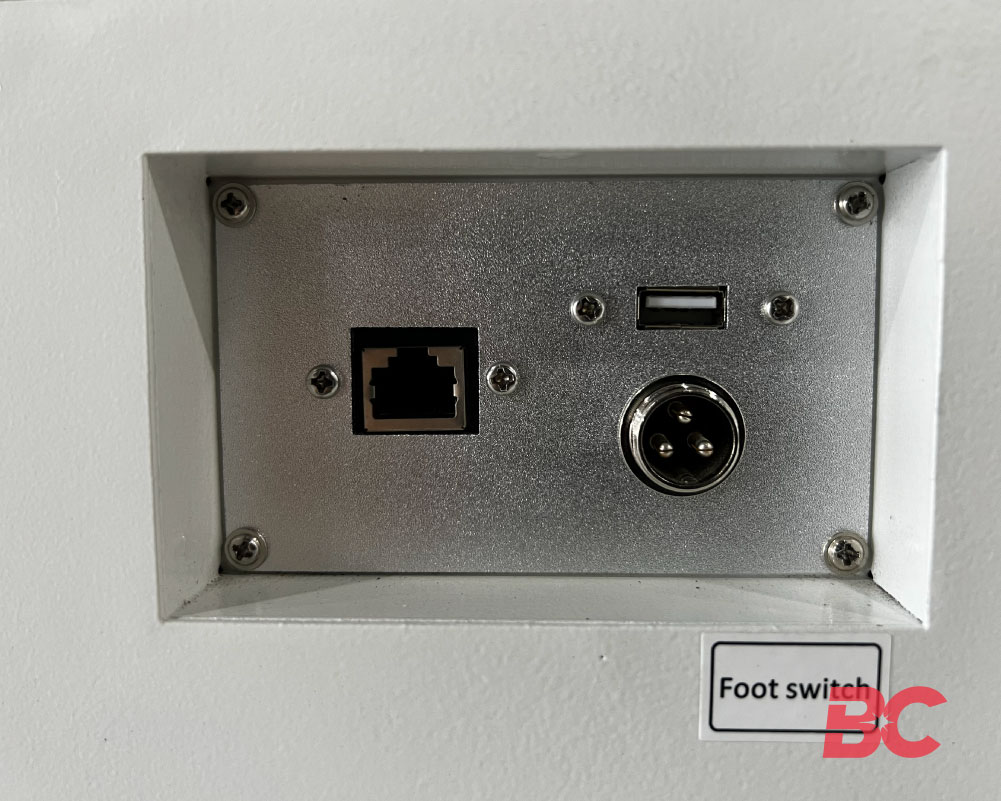

| Connection Method: | USB cable / Ethernet cable |
| Software Compatibility: | Photoshop, Illustrator, CorelDraw, and AutoCAD |
| Technical Support Service: | Dedicated USA technical support Zoho desk platform |
| Limited Warranty: | 2 Years on the machine body, auxiliary equipment, hardware, and software. / 1 Year on the laser tube. / Lenses and mirrors are not covered by warranty |
| Certification: | CE, ISO |
| Class: | Class 4 Laser |

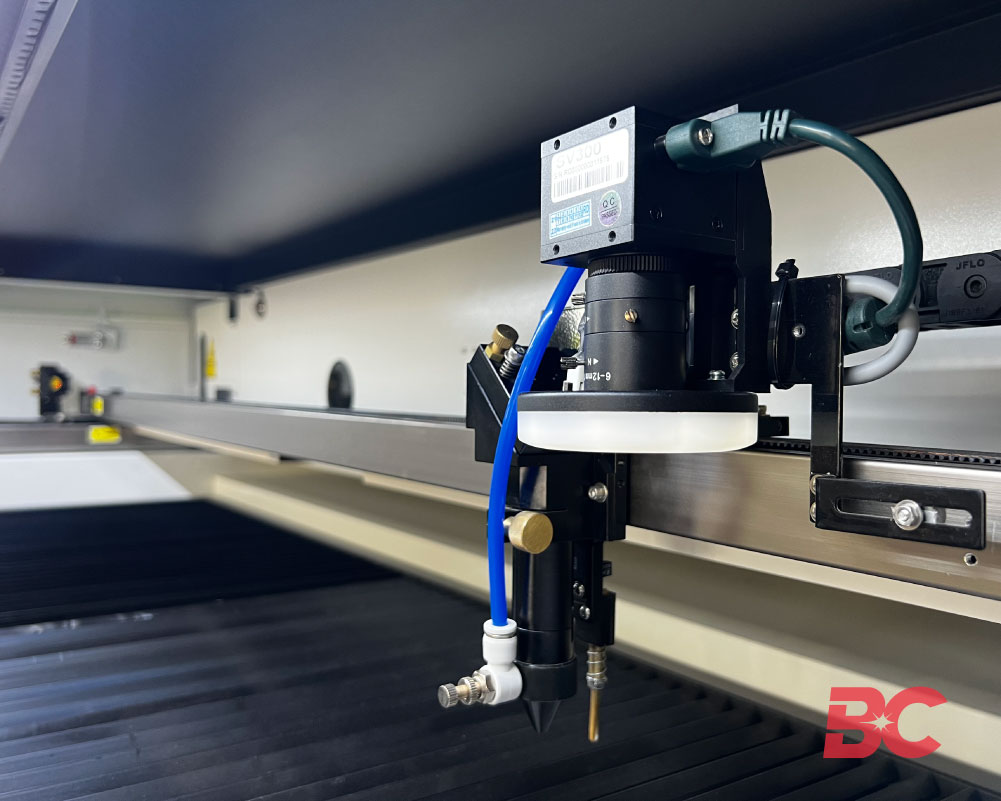

| Optional Upgrades: | CCD Camera (Contour cut with registration mark) Four-wheel rim drives rotary attachment. |

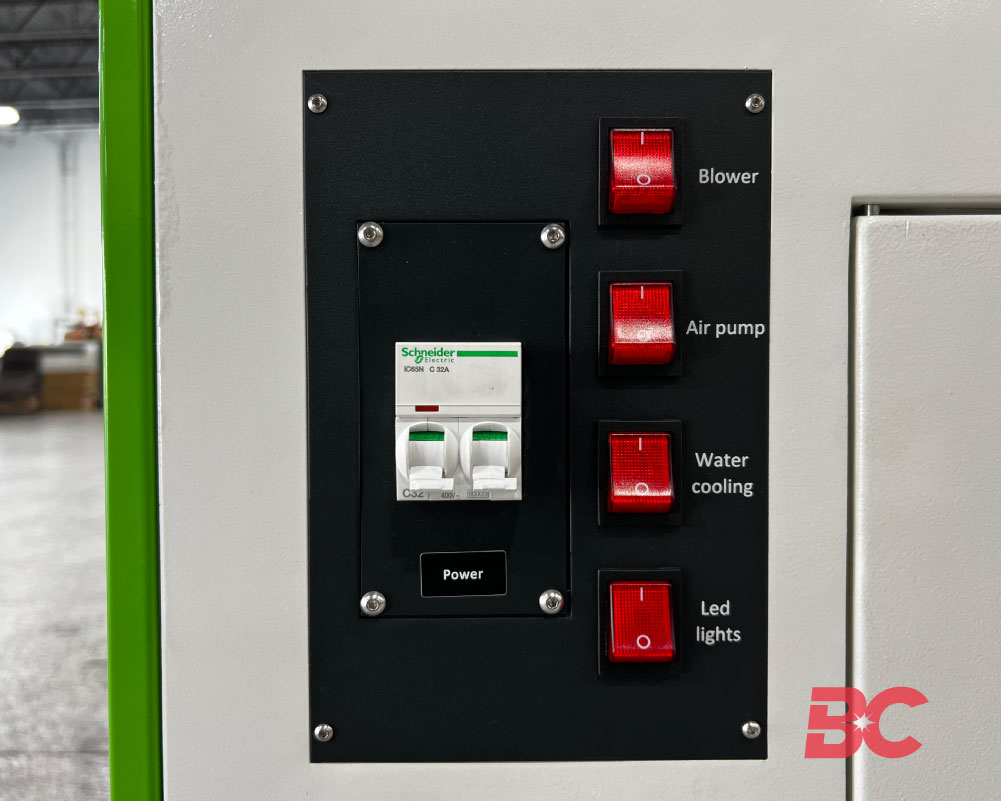

AUXILIARY EQUIPMENT INCLUDED:
| Extraction System: | Exhaust Fan 1HP / 750W |
| Air Assistant: | Air Compressor Hailea 110V |
| Water Chiller: | S&A CW 5200 Industrial Refrigerated Chiller |
Accessories for this model

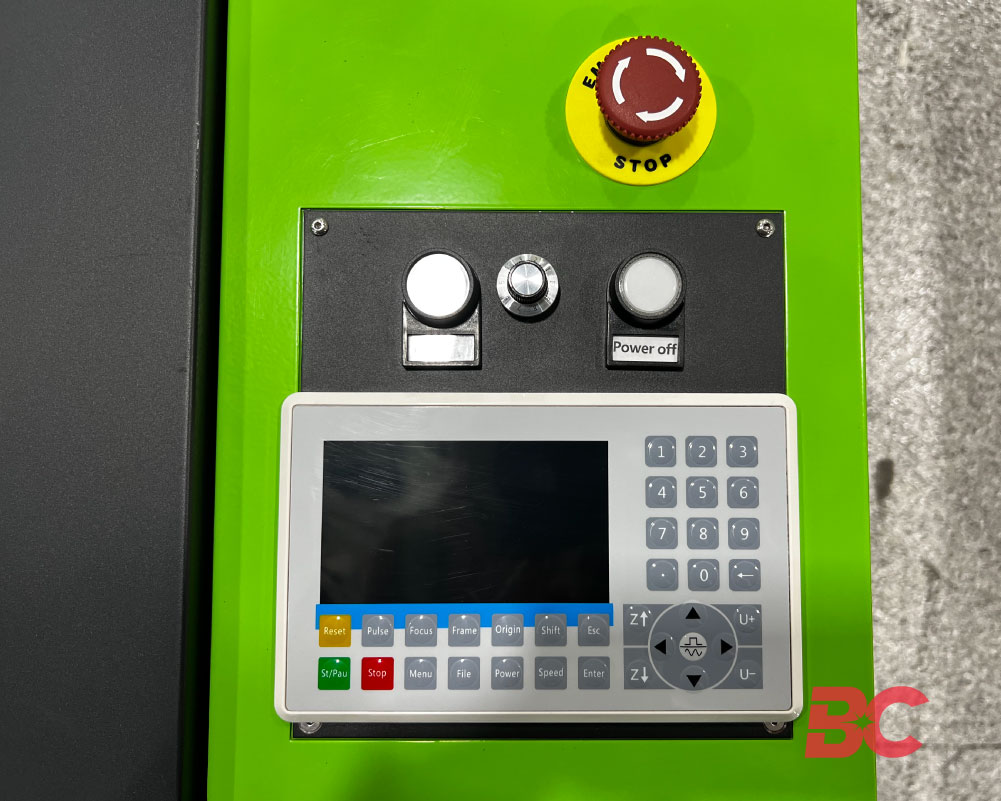

● RUIDA RDC6445 Latest Technology Controller
Latest Generation Laser Control System:
With greater hardware stability thanks to its antistatic characteristics that prevent voltage surges. Supports up to 4 channels of stepper motor control, 1 extended serial port, 4 OC port outputs.
Improved panel: Its 5 ’’ color screen makes it easier for the operator to handle and read, with more complete movement, storage and power control functions.
Materials can be cut or engraved with the our CO2 Laser Systems
laser engraving cutting machine for wood - laser engraving cutting machine for acrylic -laser engraving cutting machine for cloth - laser engraving cutting machine for shoes -laser engraving cutting machine for paper - laser engraving cutting machine for glass - laser engraving cutting machine for ad - laser engraving cutting machine for stamp - laser engraving cutting machine for leather - laser engraving cutting machine for wedding card - laser engraving cutting machine for art - laser engraving cutting machine for plexiglass - laser engraving cutting machine for plastic - laser engraving cutting machine for rubber - laser engraving cutting machine for bamboo - laser engraving cutting machine for plywood - laser engraving cutting machine for PVC - laser engraving cutting machine for TPU
