TECHNICAL SPECIFICATIONS:

Laser Power: 150W (Combined Laser Beam 260W or 300W Optional)
Laser Tube Type: ECO2,  GSI Advance Technology, JK LASER® CO2 laser tube, 10.6 µm wavelength (ECO2) Lifetime: 10,000 hours Approx
Power Supply:

(150W Model) AC 110V (±10%) 60Hz (260W /300W Model);AC 220V (±10%) 60Hz

Focus Lens: 2.5" Focal Lens Also Supports 4" Lenses
Working Area: 98.42" x 51.18" (1,300 mm x 2,500 mm) 59.06" x 118.11" (1,500 mm x 3,000 mm)
Working Platform: Knife-blade and Honeycomb
Z-Axis Displacement: N/A
Max Moving Speed: 16 in/s (400 mm/s)
Pass-Through Door: N/A
Transmission: (150W Model) Stepper motor / Belts LeadShine DMA860H (260W /300W Model) Servo Motor / Belts LeadShine DMA860H
Operation Mode: Control Panel RuiDa controller (150W Model) RDC6442 (EC) / (260W /300W Model) RDC6332 (EC)
Machine Dimensions: (1325) 135" x 74" x 44" (3,429 mm x 1,879 mm x 1,117 mm) / (1530) 138" x 77" x 44" (3,505 mm x 1,955 mm x 1,117 mm)
Net Weight:  (1325) 2,300 lbs (1,043 kg) / (1530) 2,500 lbs (1,133 kg)
Gross Weight: (1325) 2,500 lbs (1,133 kg) / (1530) 2,800 lbs (1,270 kg)
Package Dimensions: (1325) 143" x 82" x 49" (3,632 mm x 2,082 mm x 1,244 mm) / (1530) 148" x 87" x 54" (3,759 mm x 2,209 mm x 1,374 mm)



MACHINE CONFIGURATION:

Controlling System: RuiDa controller (150W Model) RDC6442 (EC) / (260W /300W Model) RDC6332 (EC)
Software: RDWorks / LightBurn® (optional)
Connection Method: USB Cable / Ethernet Cable
Software Compatibility: Photoshop, Illustrator, CorelDraw y AutoCAD
Technical Support Service: Dedicated USA technical support Zoho desk platform
Limited Warranty: 2 Year on machine body, auxiliary equipment and, hardware and software. / 1 Years on the laser tube. / Lenses and mirrors are not covered by warranty
Certification: CE, ISO
Class: Class 4 Laser

AUXILIARY EQUIPMENT:

Extraction System: Exhaust Fan 1HP / 750W (150W Model) 110V (260W /300W Model) 220V
Assistant Air Air compressor Hailea (150W Model) 110V (260W /300W Model) 220V
Water Chiller: Industrial Chiller S&A CW 5200 (150 Model) / CW6000 (260W /300W Model)

Materials can be cut or engraved with the our CO2 Laser Systems

Which list of materials can be cut or engraved with the CO2 laser

Full List of Specifications (PDF)

Fiber laser
Fiber laser
Fiber laser
Fiber laser
Fiber laser
Technical Support CO2 Laser Machine Cutting Engraving Know-how Works Calibration Parameters


Customer Reviews

Based on 1 review Write a review

Applications


CO2 130-150W Cutting & Engraving Suggested Parameters (PDF)

Cutting Plywood Map from 4'x8' sheet

For Quote or More Information

please fill this form:

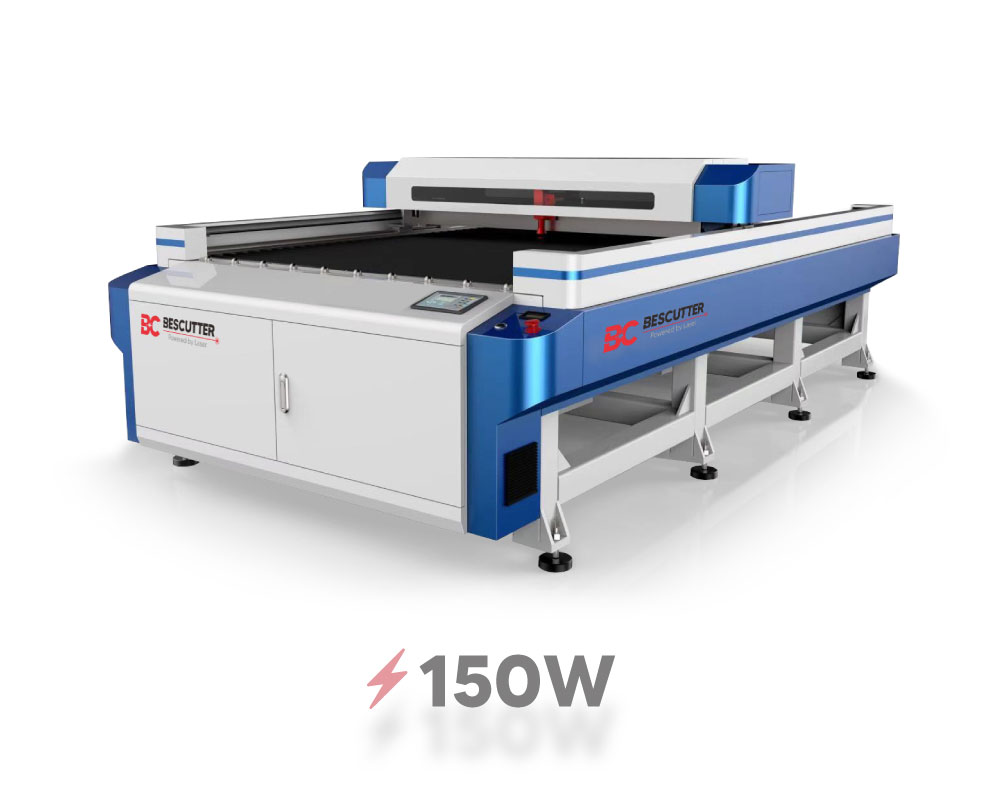

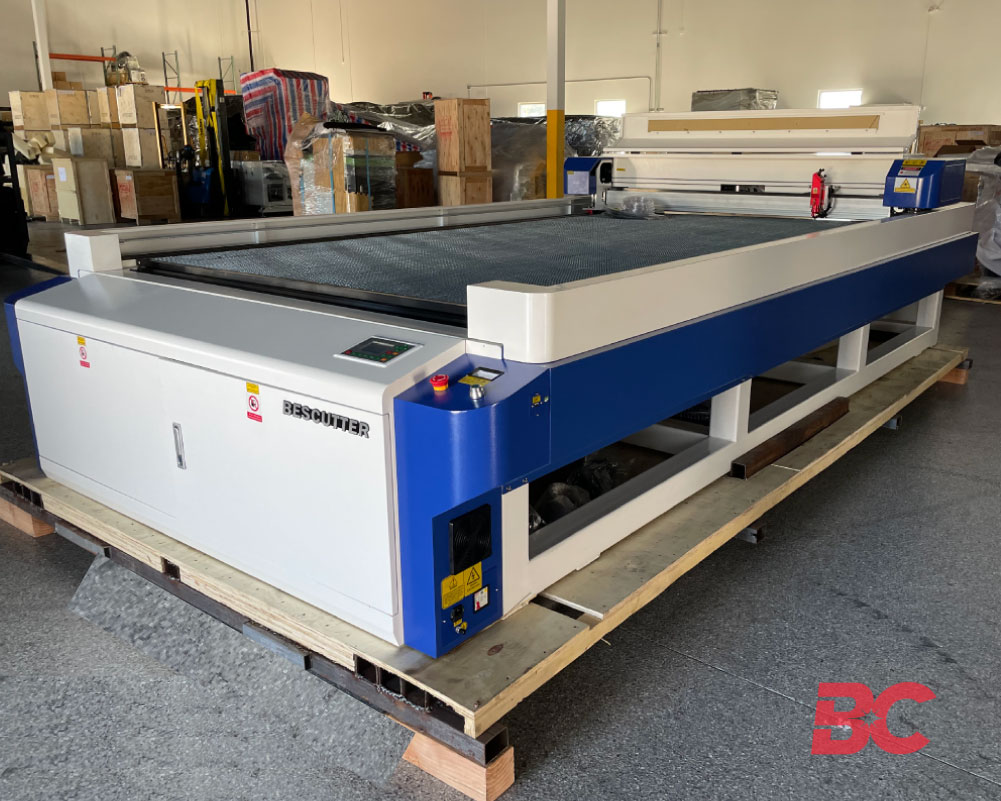

ALL SYSTEM INCLUDED BESCUTTER WORKFORCE 1325 - 1530 | 150W - 300W | CO2 LASER CUTTER & ENGRAVER SYSTEM DOUBLE WORK PLATFORM
