TECH SPECIFICATIONS

Laser Power (W): IPG 1,5 - 2KW    BC Power 1.5-2KW
Working A:rea 59" X 240" (1500 mm X 6096 mm)
Overall Dimension:  197" X 89" X 75"  (5010 mm X 2260 mm X 1900 mm)
Weight: 6114 Lb (3000 kg)
Positioning Accuracy: 0.001181" (±0.03 mm)
Repeated Positioning Accuracy: 0.000787" (±0.02 mm)
Maximum Speed: 2362 in/min (60 m/min)
Maximum Accelerated Speed: 0.6G
Supply Voltage: 380 V / 50Hz - 60Hz
Working Environment: Clean Temp:0~45℃, Humidity:≤80%
Controlling System: FSCUT2000S
X Axis Stroke: 60" (1525 mm)
Y Axis Stroke: 240" (6096 mm)
Y Axis Stroke: 4.7" (120 mm)
Laser Head: RAYTOOLS
Lubrication System: Optimized Autolubrication System

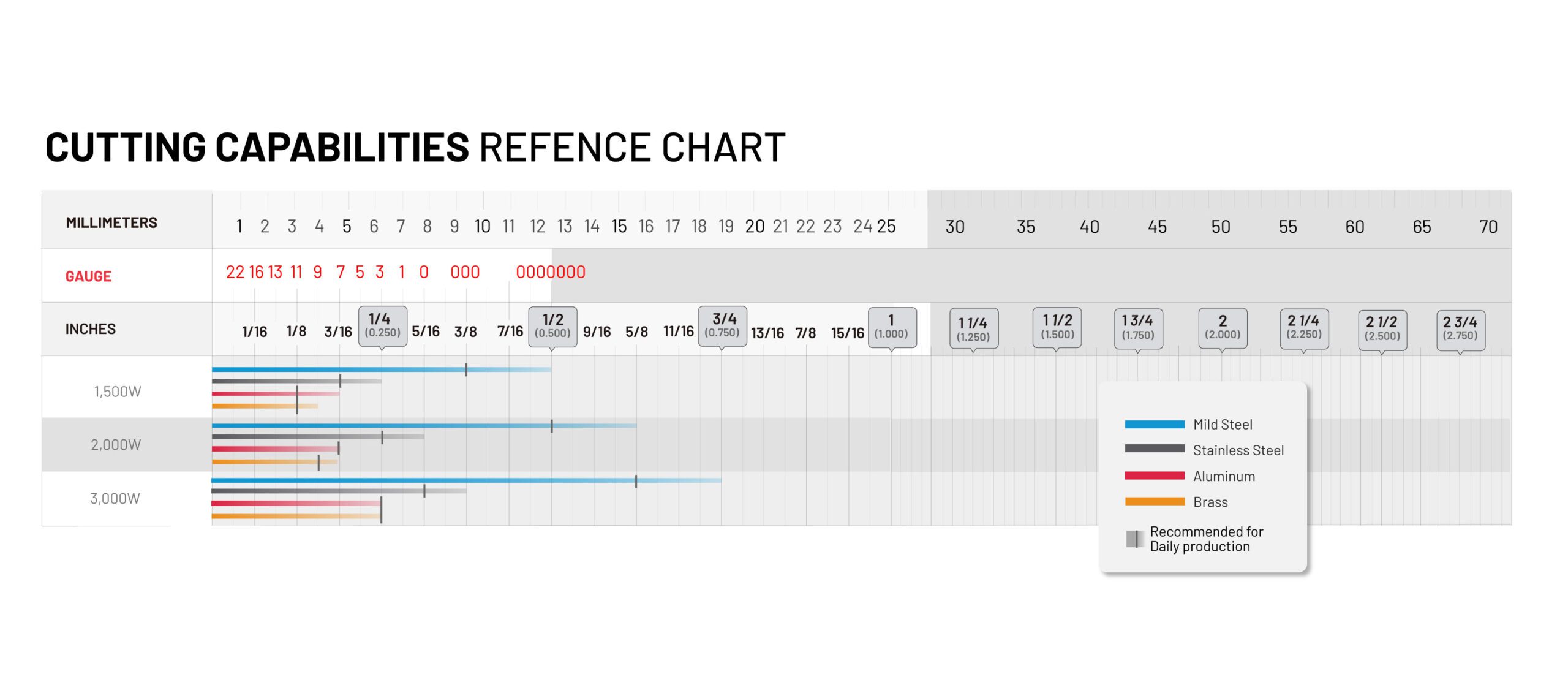

CUTTING CAPABILITIES

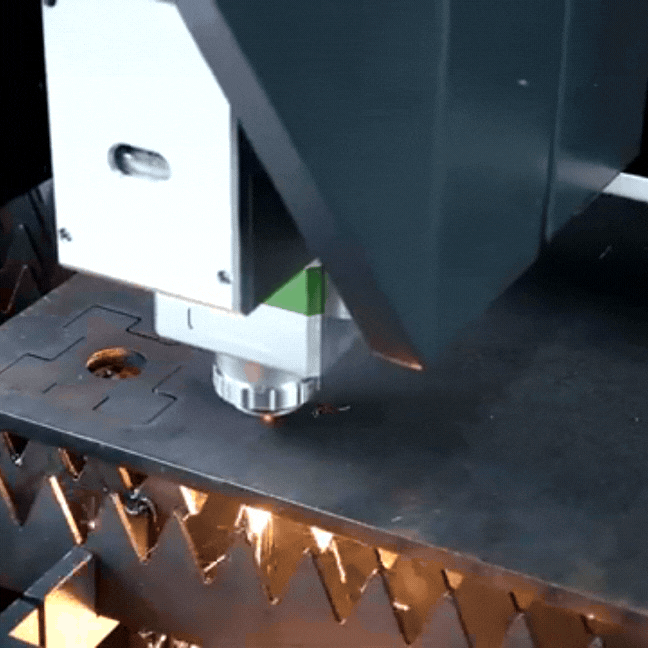

MACHINE VIDEO

Customer Reviews

Based on 1 review Write a review

For Quote or More Information

please fill this form:

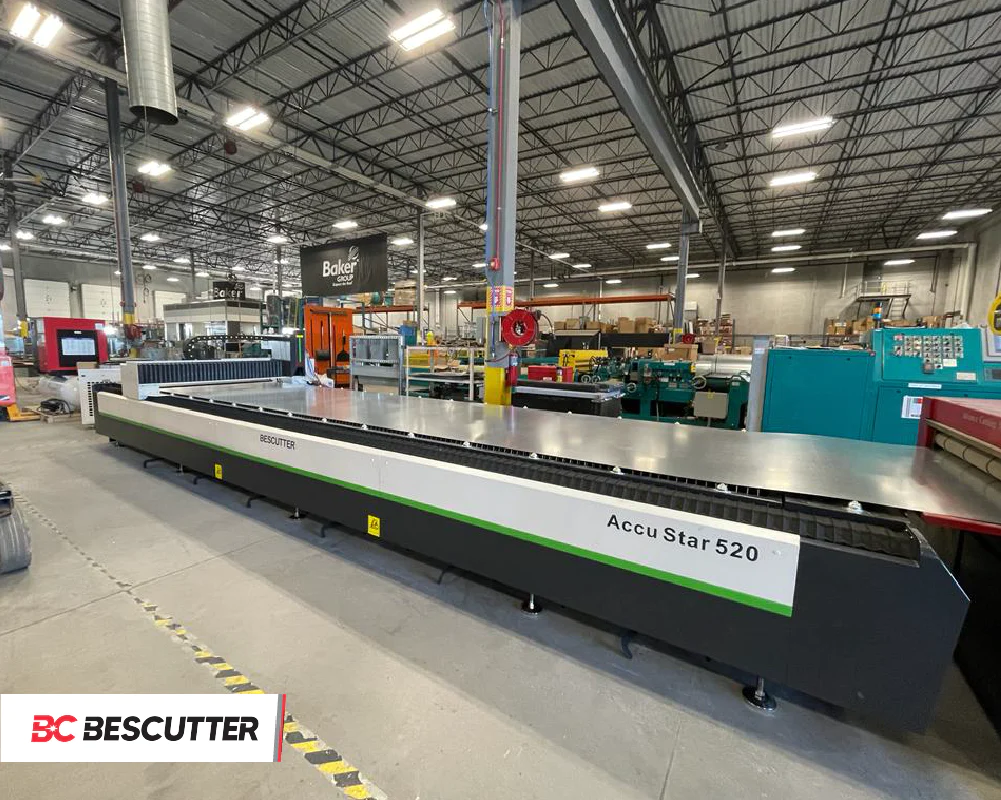

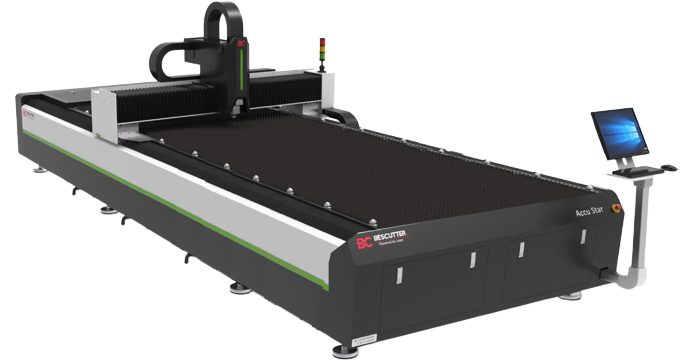

ACCU STAR 5' x20' | 1500-2000W | Fiber Laser Metal Sheet Cutting Machine
