Main Features
- IPG Laser Resonator

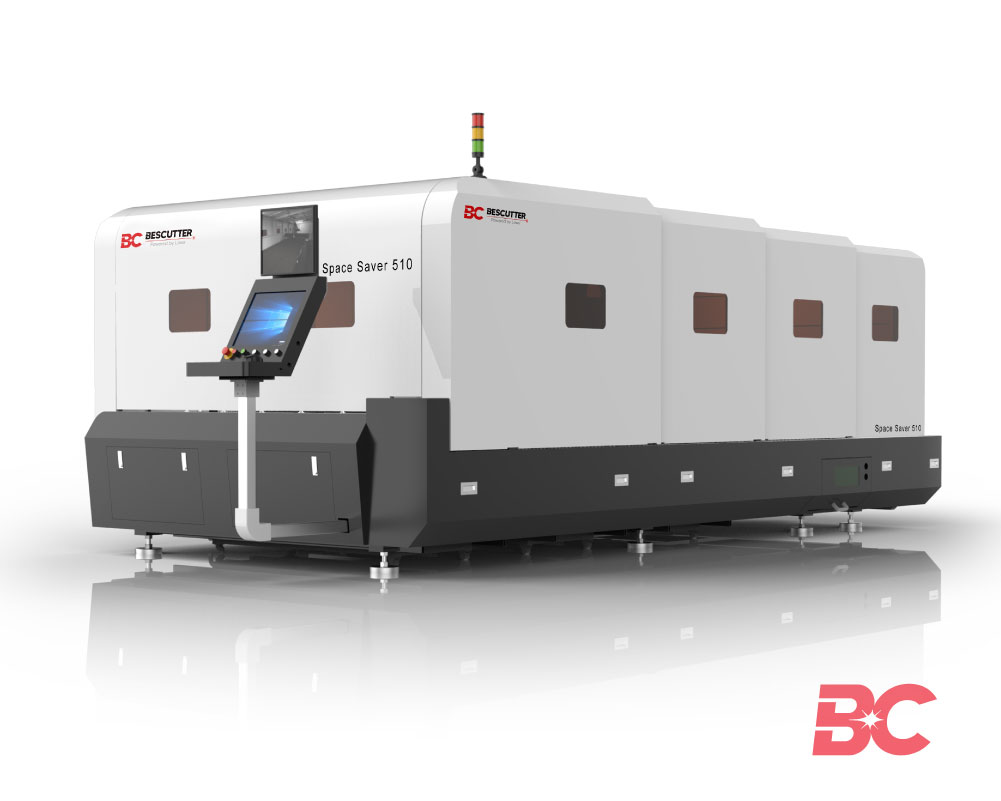

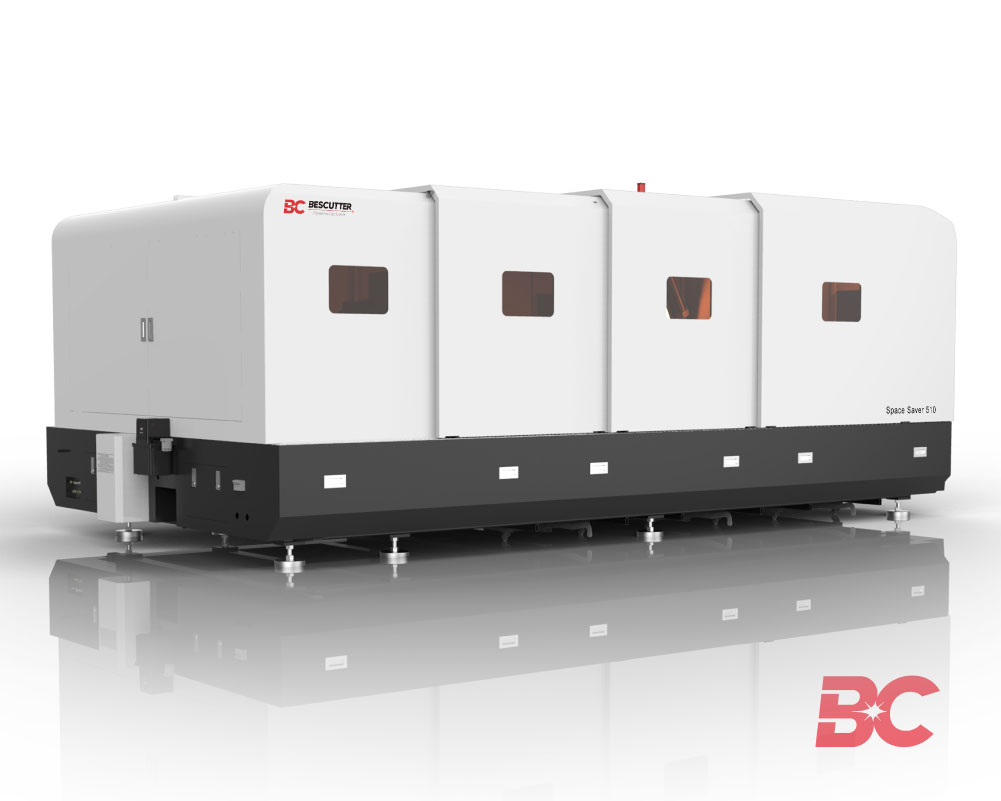

- Compact design with safety enclosure. Ideal for shop with limited space.

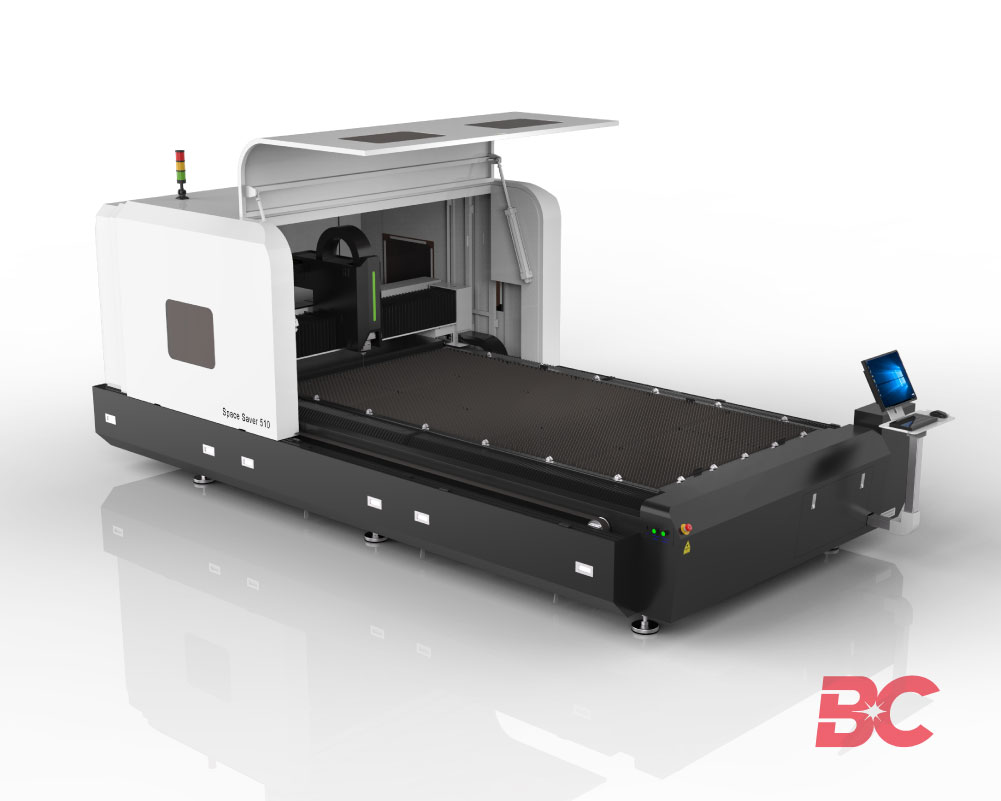

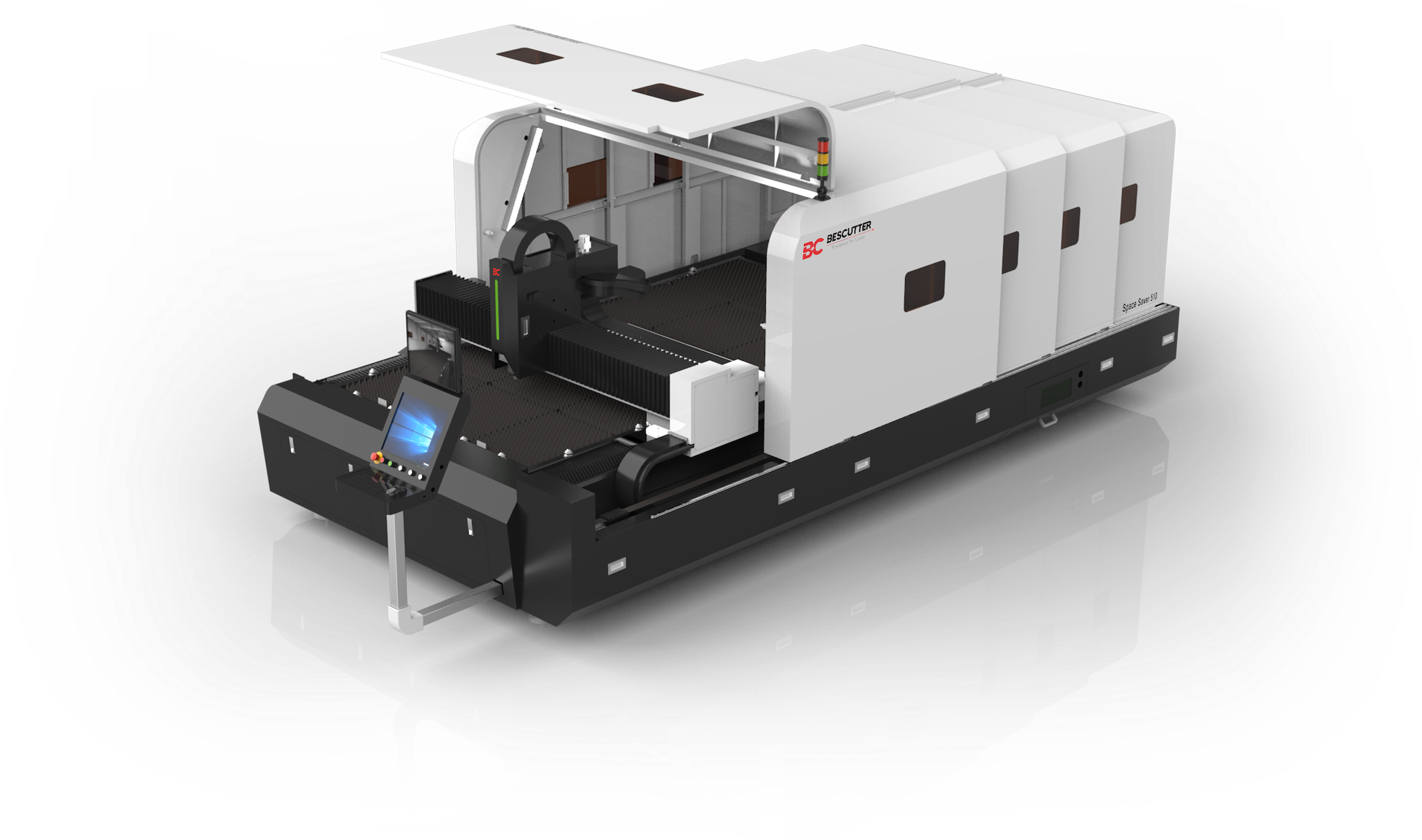

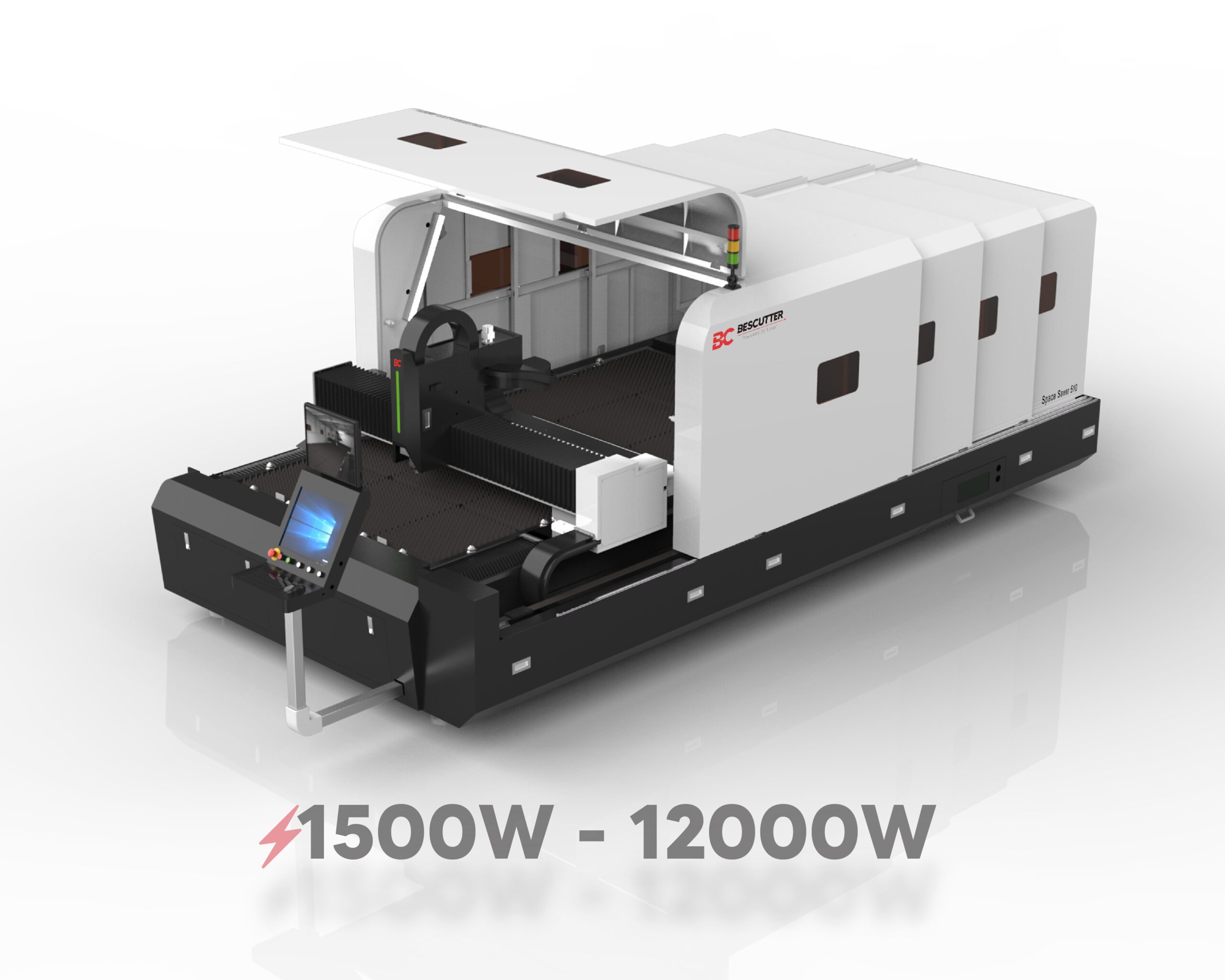

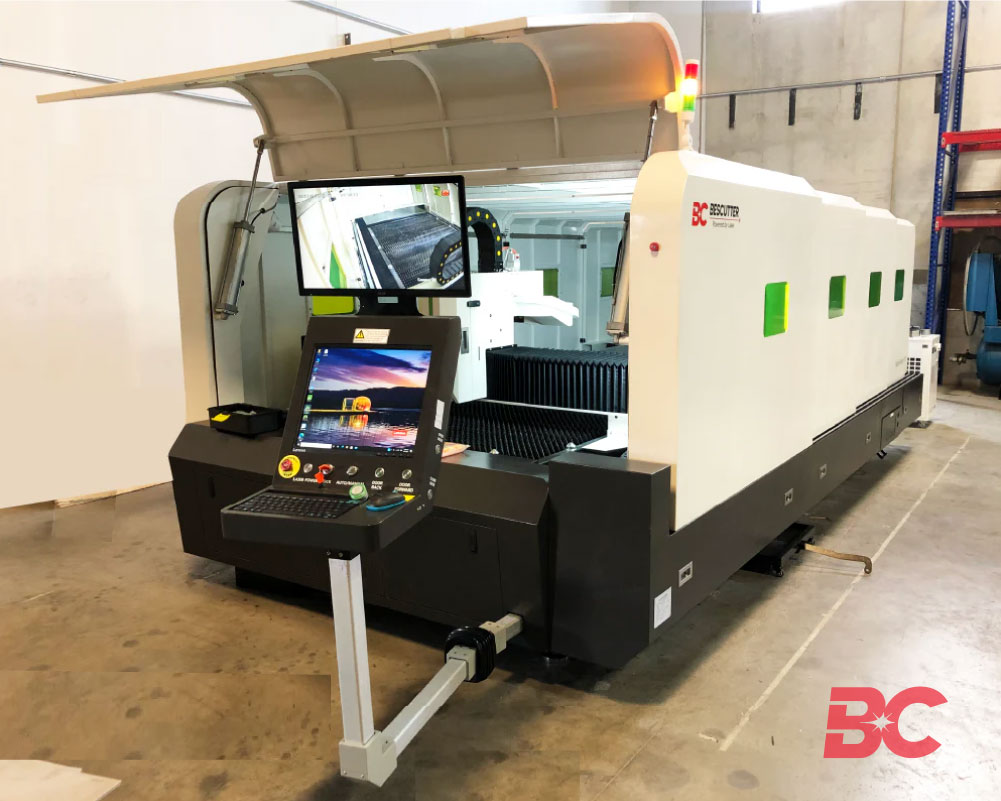

- Full enclosure with retractable housing. Easy loading and unloading.
- Space Saving: no exchange table.
- High rigidity enhanced aviation aluminum gantry.
- Rack and pinion structure, servo drive, secondary annealing treatment of high rigid welding frame with high accuracy and stability.
___________________________________________________________________________________________________
Technology Specifications
- Working Area: 60" x 120 " (1525 mm x 3050 mm)
- Laser Wattage: 1500 W / 2000 W/ 3000 W/ 4000 W
- Continuous Wave fiber laser, 1.07 um wavelength
- Beam Quality: <0.373 mrad
- IPG Laser Generator
- Laser Head: RayTools (auto focus)
- Control System: CypCut BCS 100
- Cooling System: CWFL-1500, CWFL-2000, CWFL-3000, CWFL-4000 or Comparable
- Driving System: Servo Motors
XYZ Servo Motors: Schneider Y 2x1500W, X 1x1000W, Z 1x400W - Max Speed: 60m/min
- Power Supply: Three phase 208V/ 240V / 480V (transformer included)
- Overall Size: 233"L X 106"W x 90"H
- Weight: 7716 lbs
- Format: LXD, DXF, PLT, AI, NC etc.
- High Quality Rack and Pinion Guide Rails
Request More Information
Customer Reviews
Based on 1 review
Write a review
Application Videos

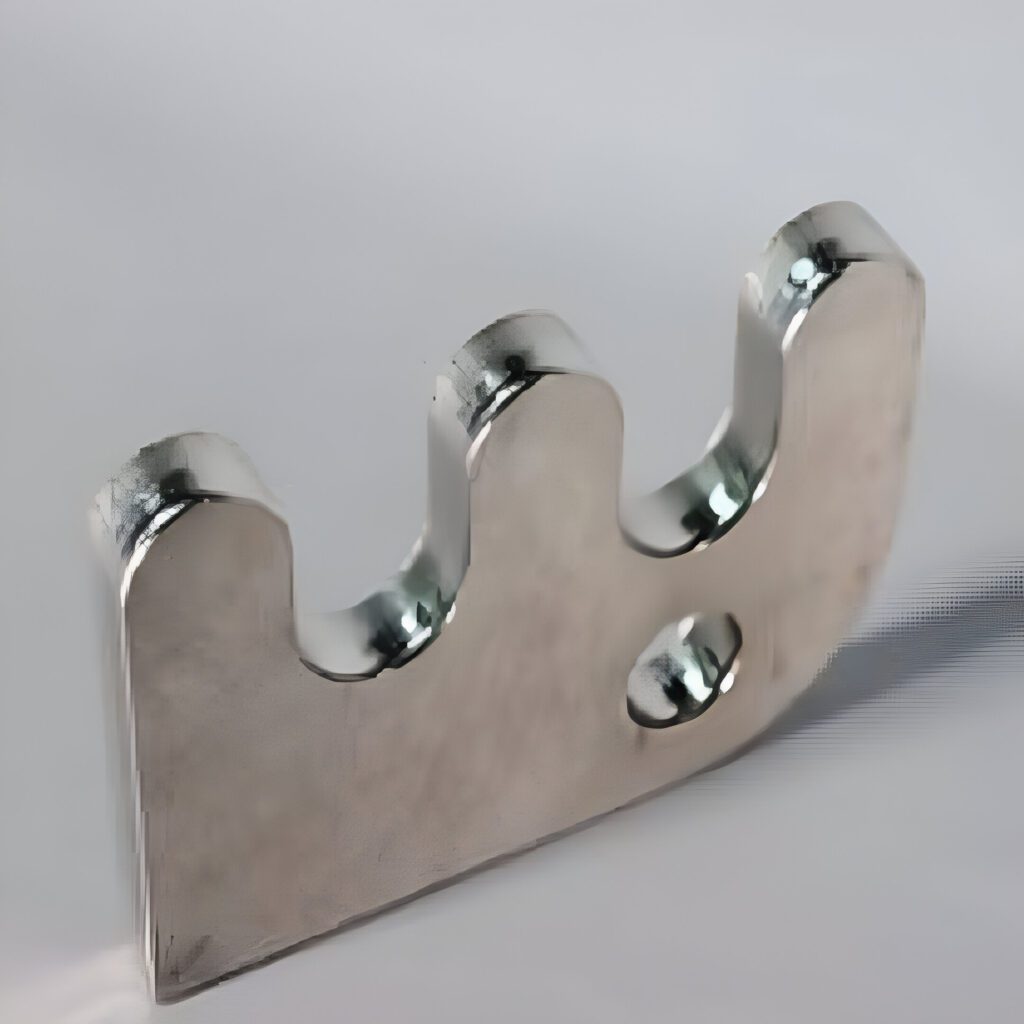

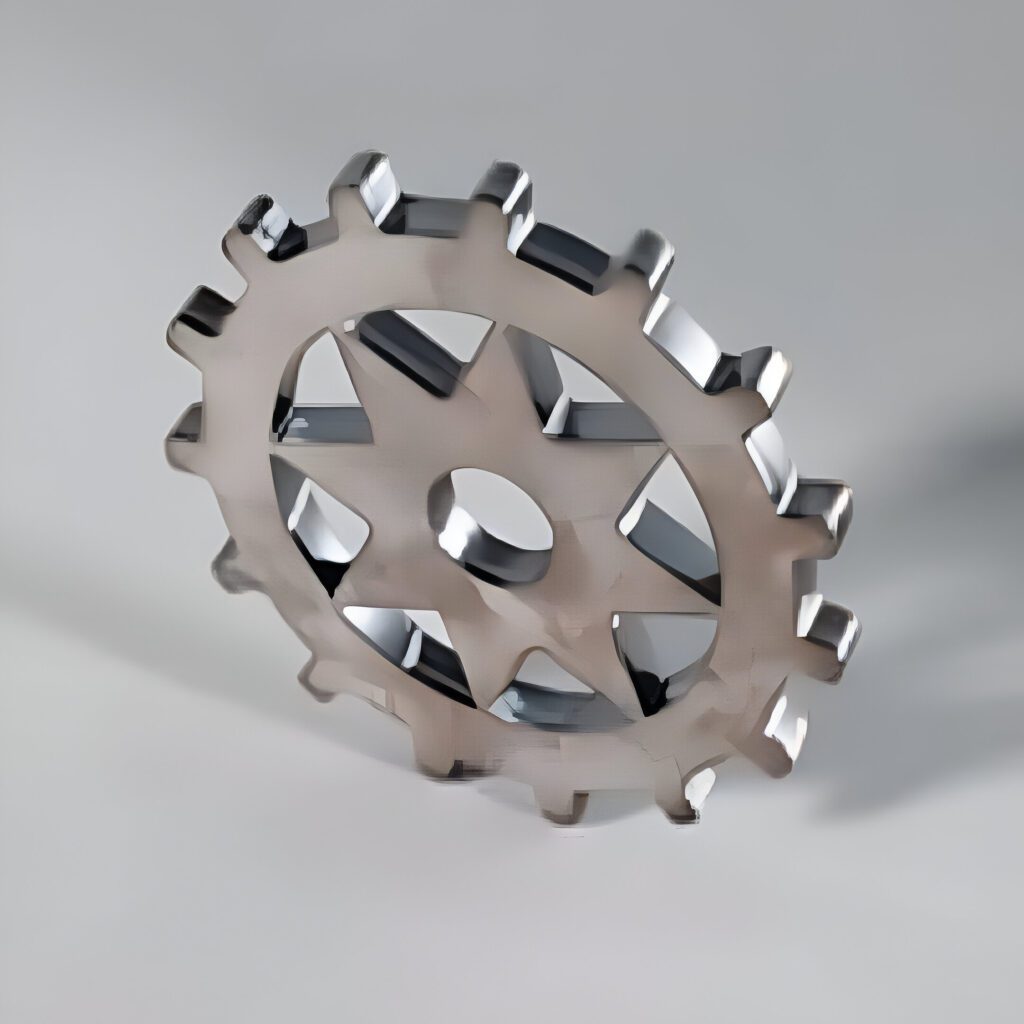

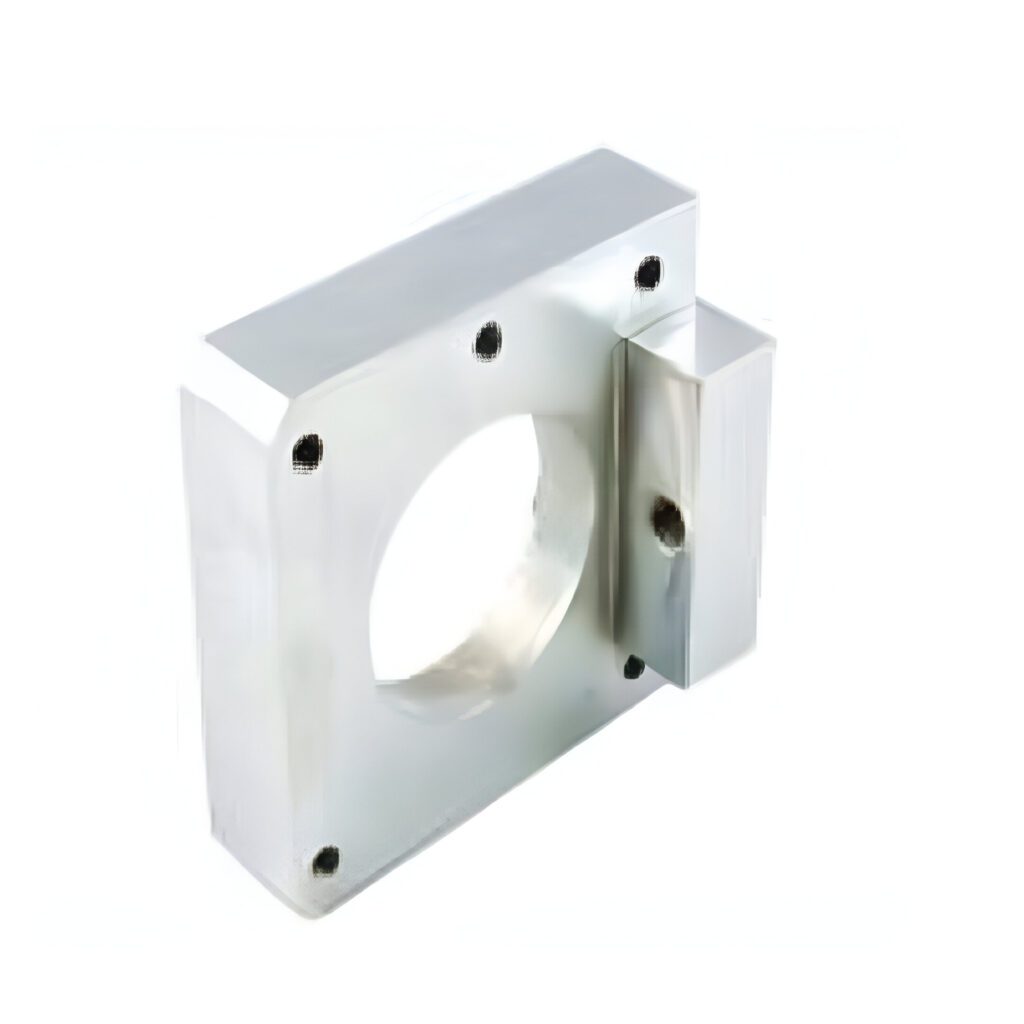

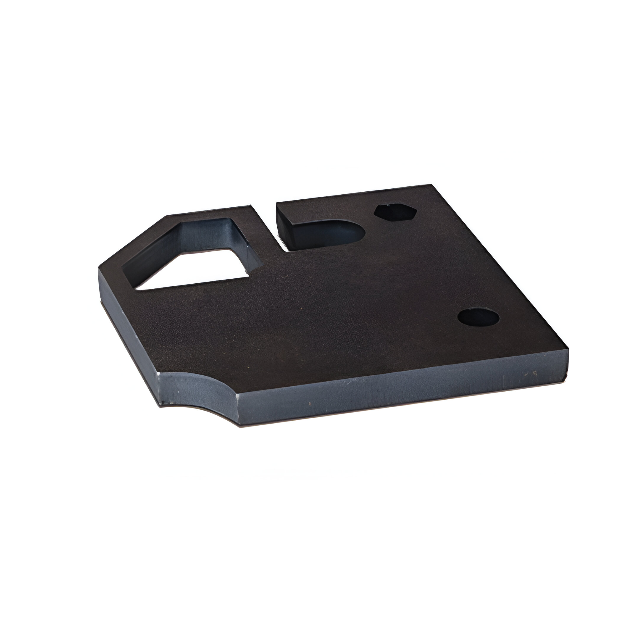

Application Pictures
