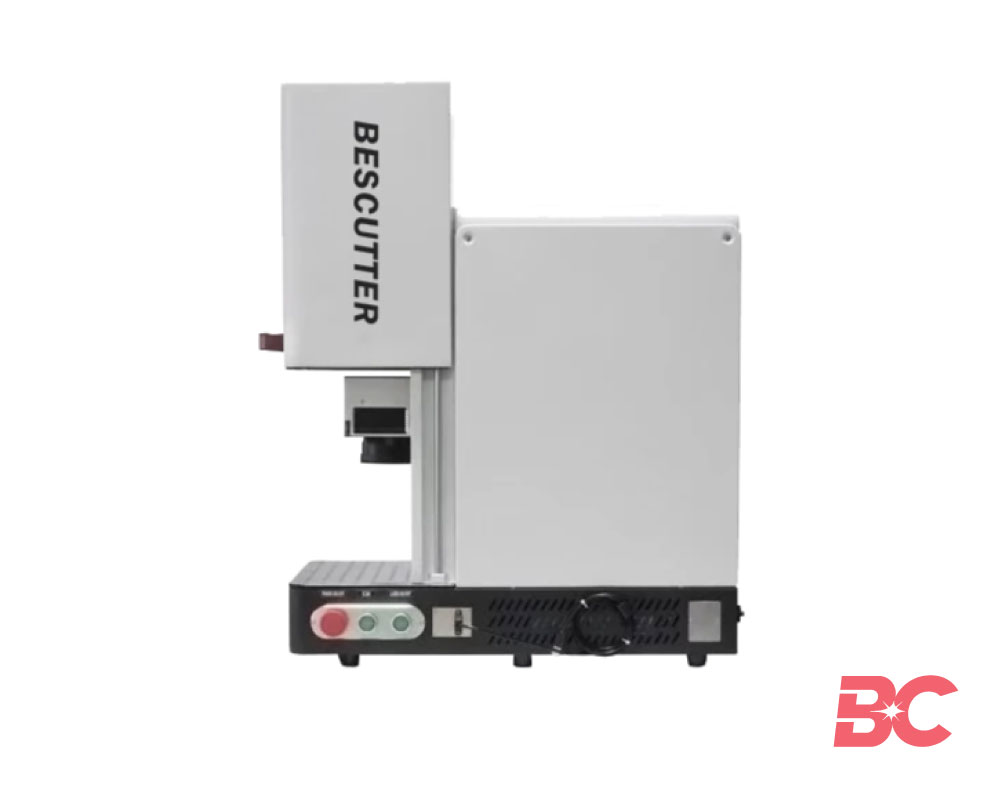

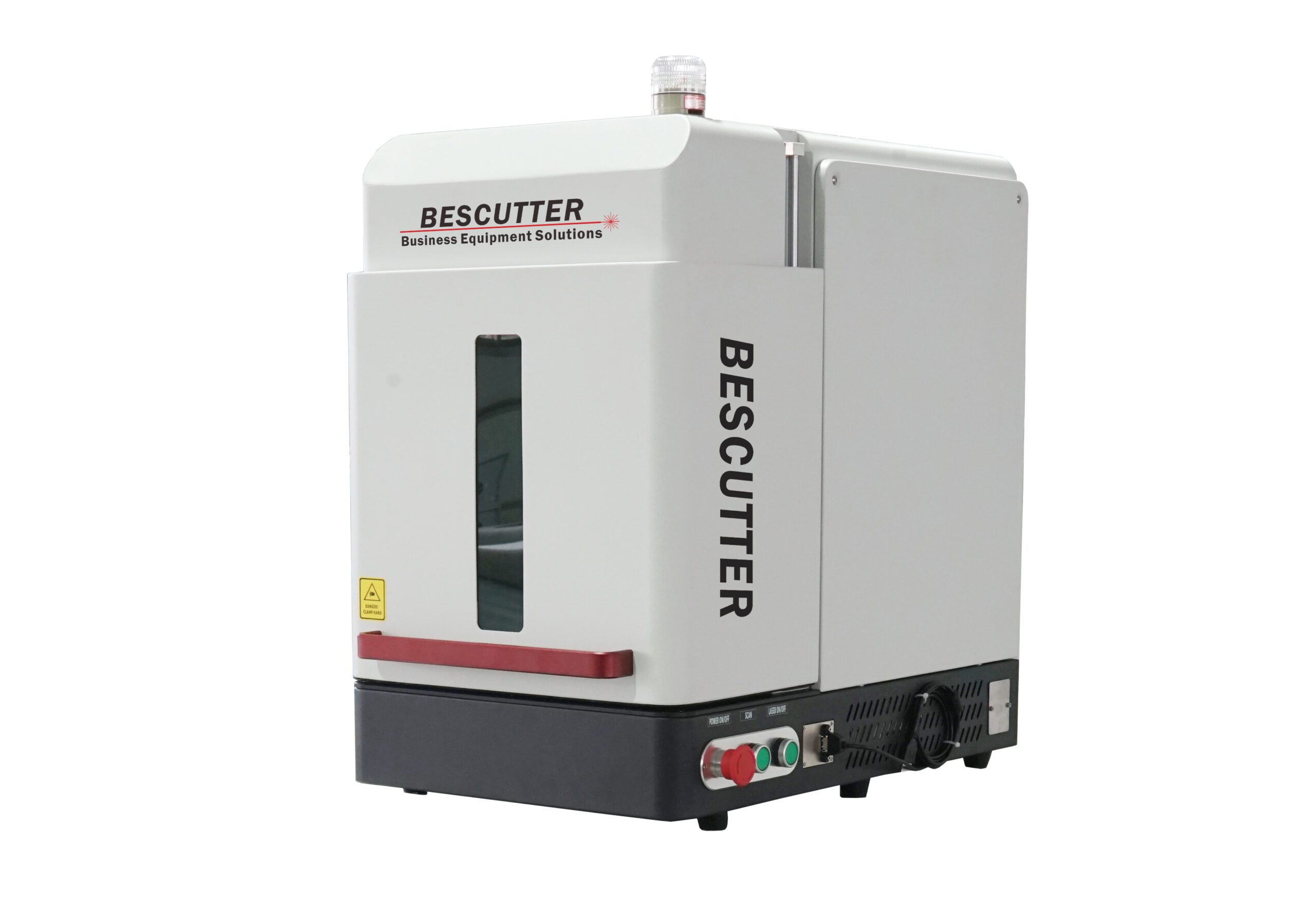

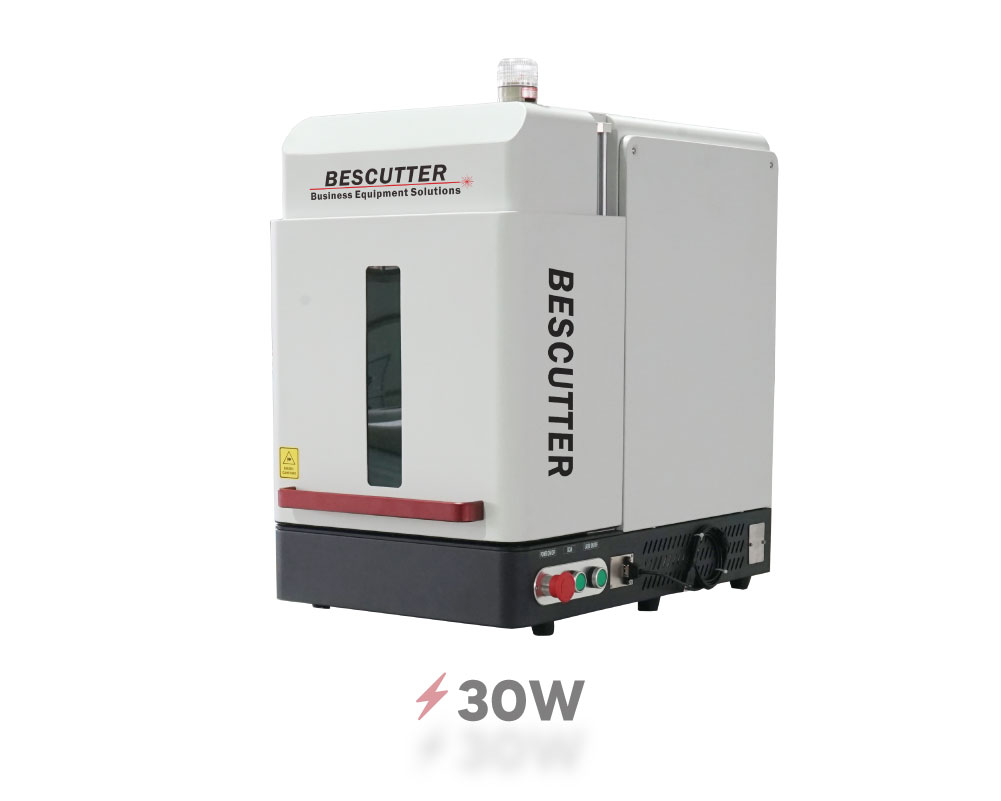

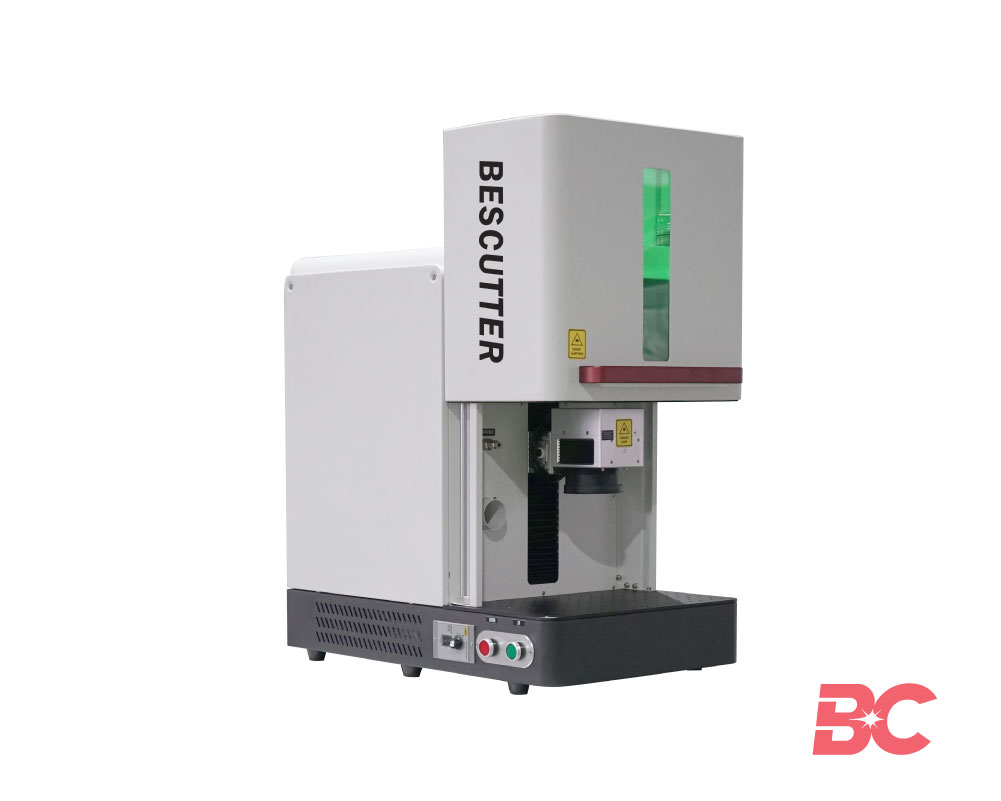

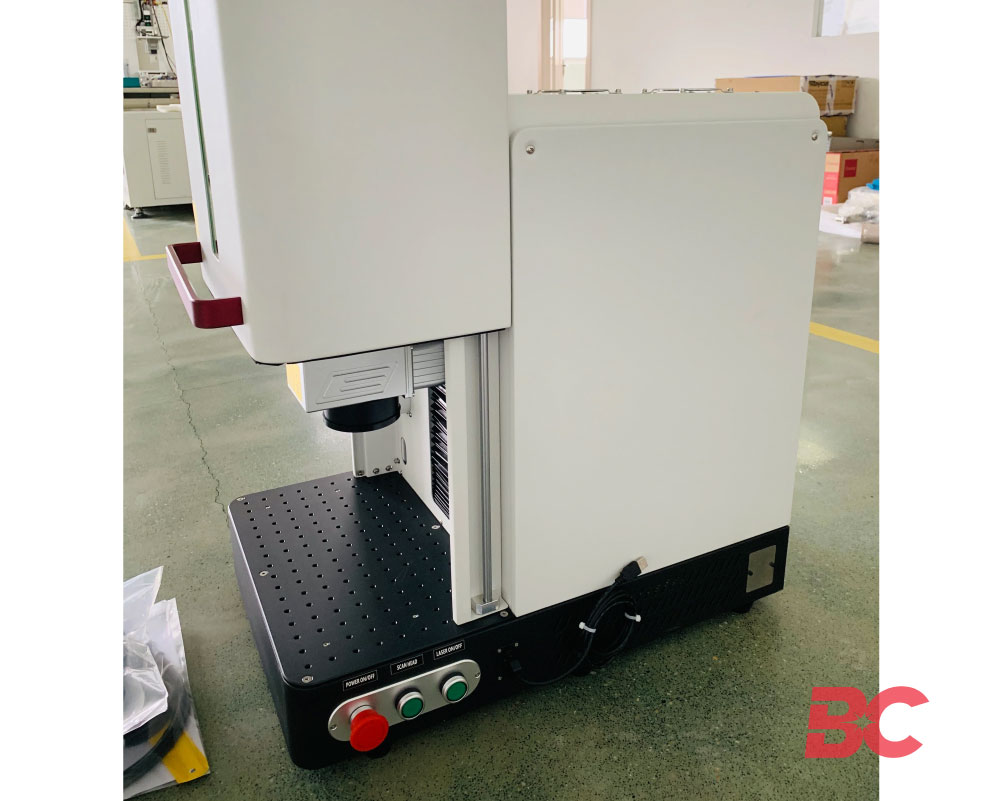

BesCutter Mini Enclosed type Galvo 30W Fiber Laser Marking Machine. Stock Available
699900
1290000
BesCutter Mini Enclosed type Galvo 30W Fiber Laser Marking Machine. Stock Available
699900
1290000
Main Features
- Full Protection from Fiber Laser
- High Precision and Unparalleled speed

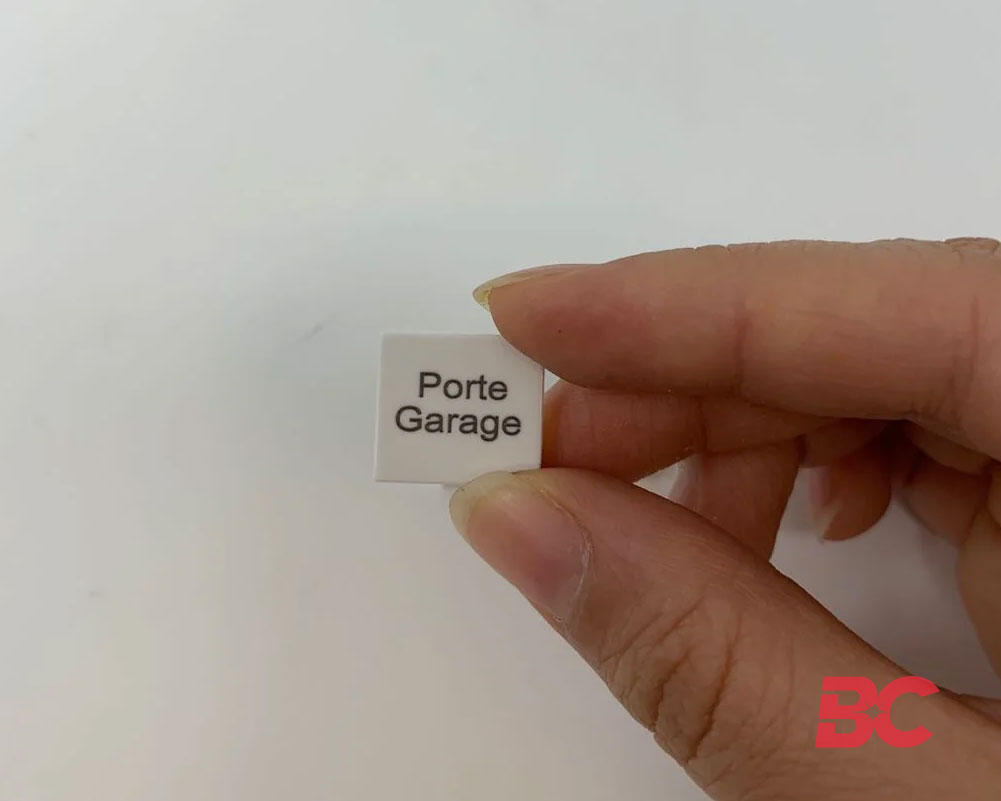

- Applications: metals and some type of non-metal materials
- Two Red Dots for easy focal length adjustment
- Visible Red Laser for alignment and preview

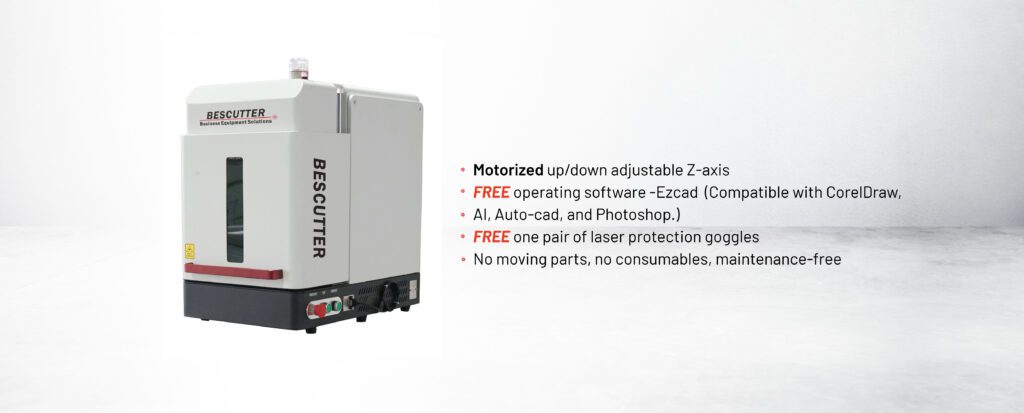

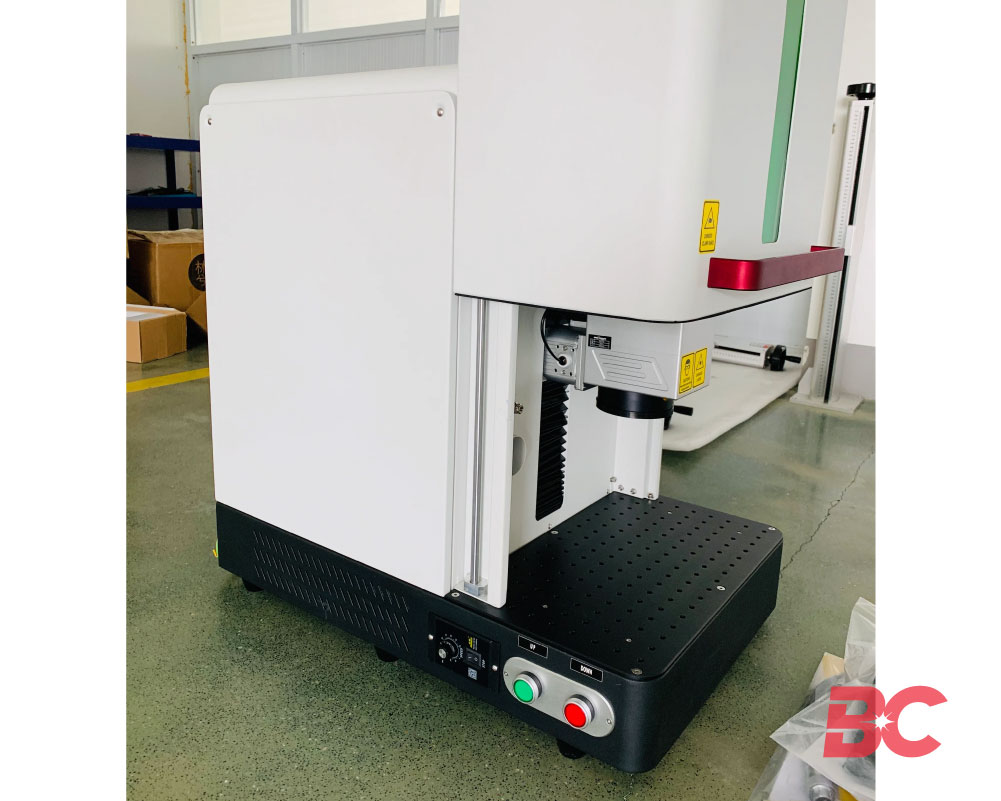

- Motorized up/down adjustable Z-axis
- FREE operating software -Ezcad (Compatible with CorelDraw, AI, Auto-cad, and Photoshop.)
- FREE one pair of laser protection goggles
- No moving parts, no consumables, maintenance-free
- Two years warranty on all parts and remote service
Technology Specifications
| Laser Generator: | Raycus 30W |
| Laser Source Life Time: | 100,000 + hours |
| Standard Marking Area: | 4.3” x 4.3” (110 mm×110 mm) |
| Optional Marking Area: | 150 x 150 mm /175 x 175 mm/ 200 x 200 mm |
| Galvanometer Scanner: | Sino-Galvo |
| F-θ Lens: | Wavelength (Singapore Brand) |
| Marking Speed: | up to 7000 mm/s |
| Laser Wavelength: | 1.06 um |
| Beam divergence: | 0.3 mrad |
| Focused beam diameter: | <=20 um |
| Min. line width: | 0.015 mm |
| Min letter size: | 0.1 mm |
| Marking depth: | 0.03-0.5 mm |
| Power Supply: | 110 V / 60 Hz |
| Cooling: | Air-cooled, no extra cooling needed |
| Working Environment: | Temperature: 0-104°F; Humidity: 30% - 85% |
| Machine Dimensions: | 20 x 30 x 27" (500 x 710 x 675 mm) |
| Net Weight: | 132 lbs (60 kg) |
Must-Have Features
Our Galvo fiber laser allows for ease of operation because we have incorporated many features that make every job easier:
- FAST SHIPPING
- Premium after-sales Service (Call us if any issues arise, our experienced, customer-oriented technicians will help you solve the problem by video call or team viewer software.)
- All accessories in stock
- Free laser protection goggles
Learn how you can get the Galvo fiber laser that will enhance your business by contacting us today! We are glad to help you with the sample test and video demonstration.
TECHNICAL INFORMATION SHEET pdf
