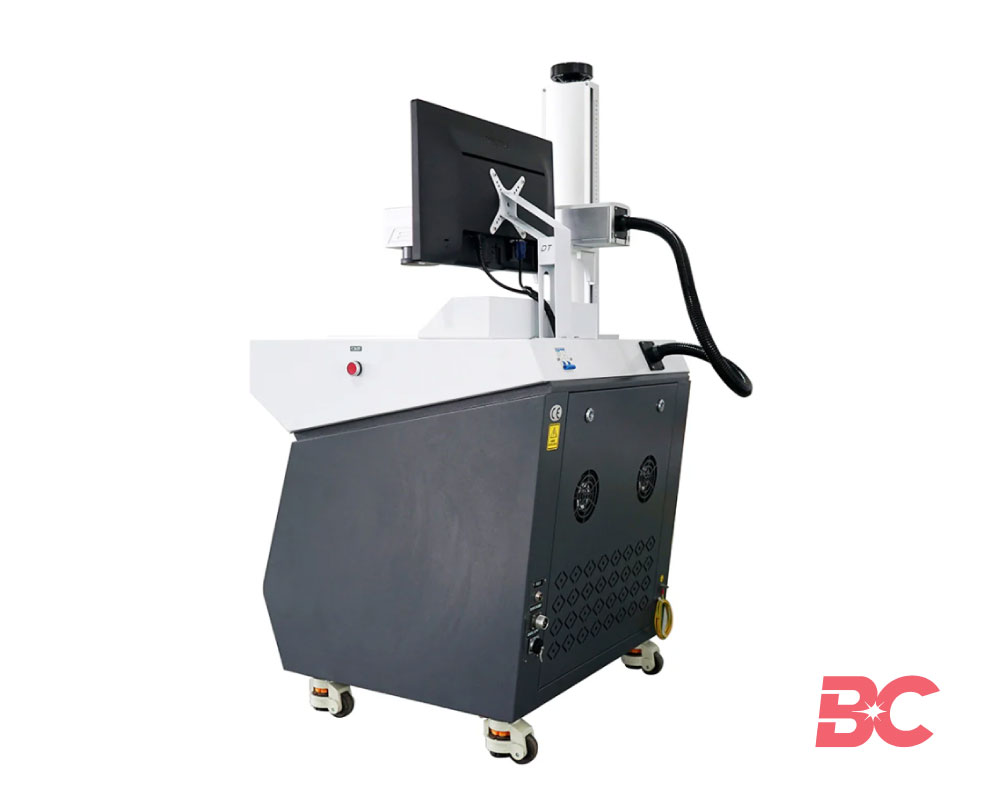

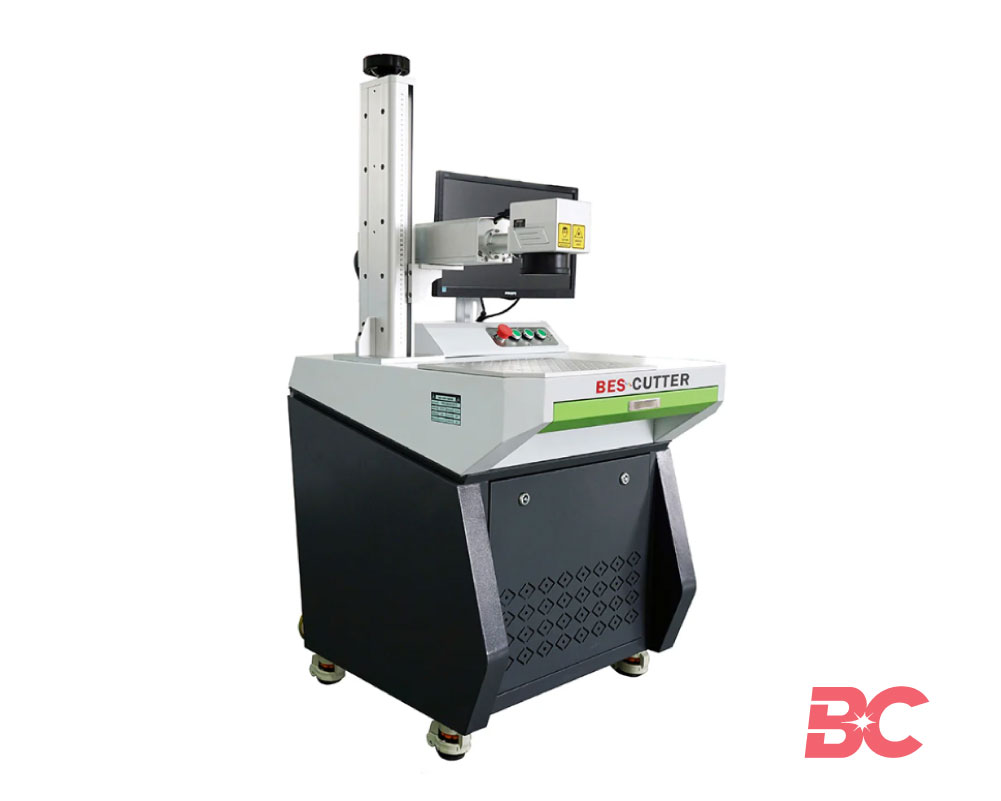

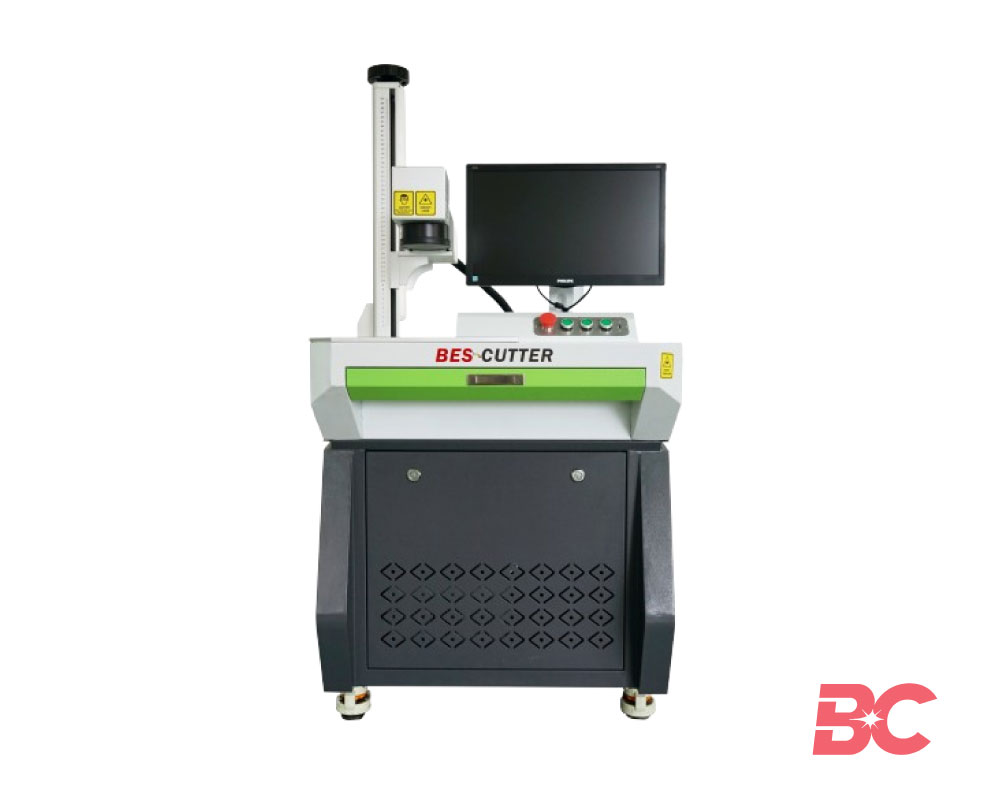

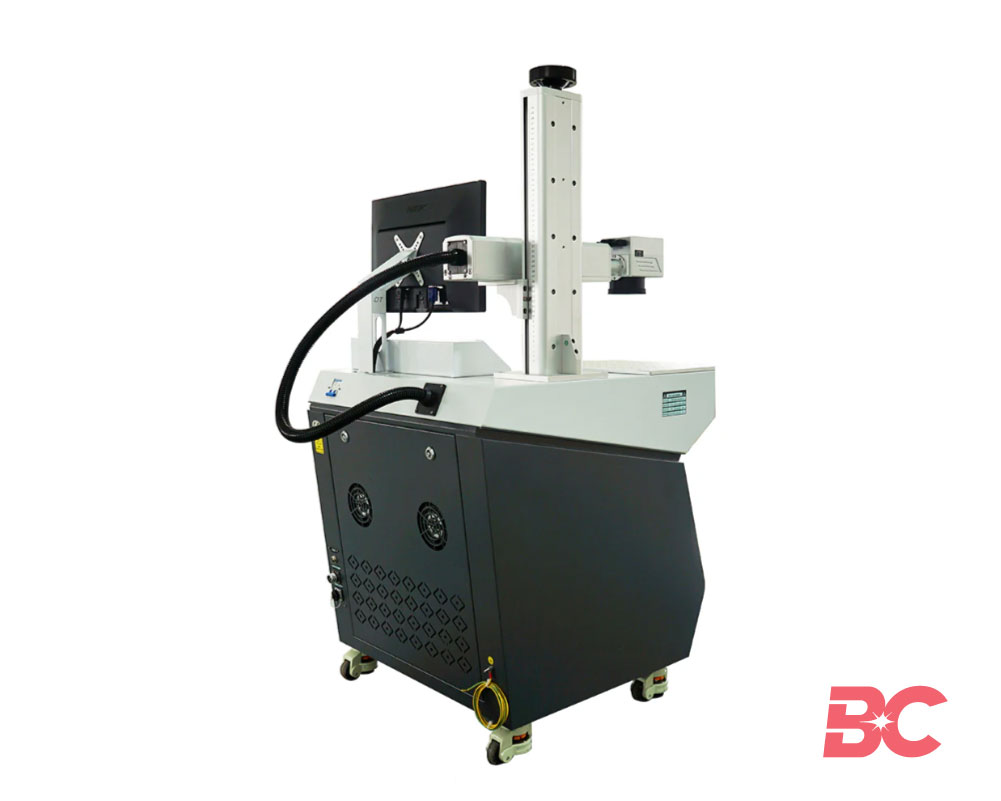

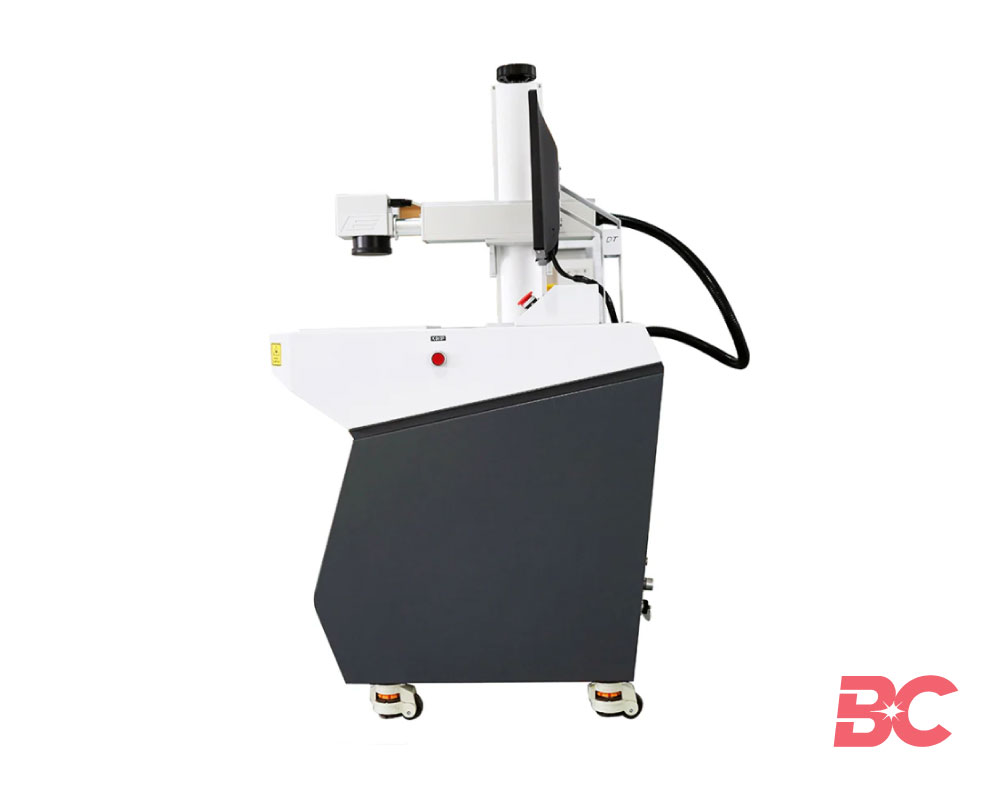

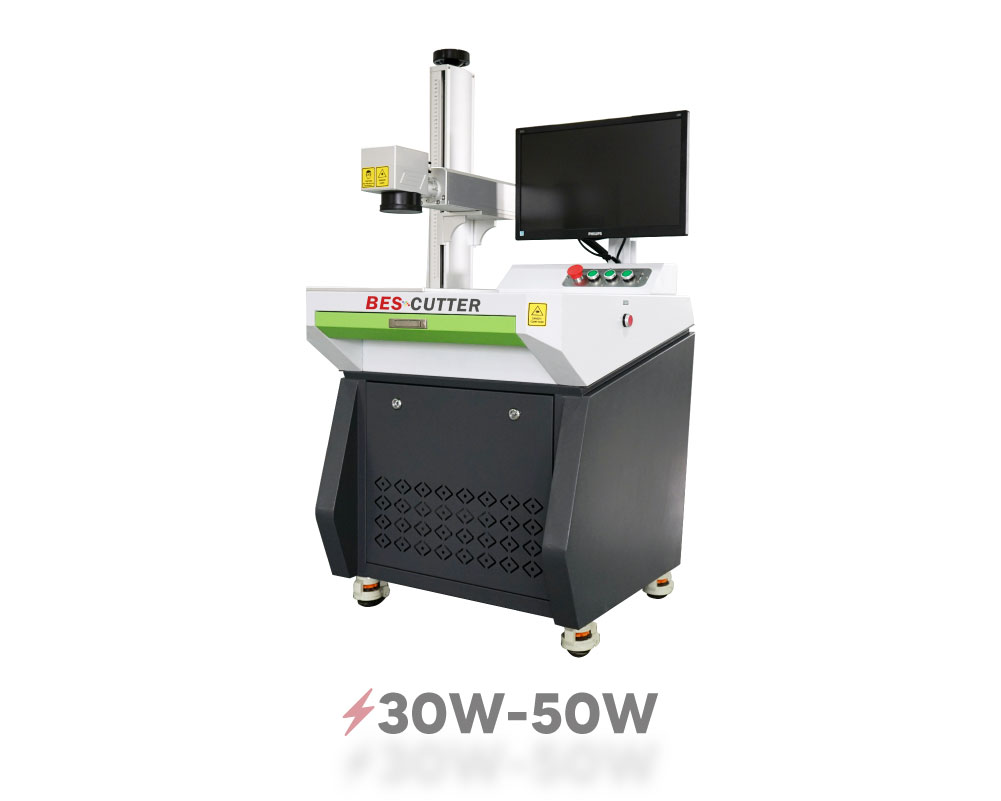

BesCutter Desktop Style 30-50W Galvo Fiber Laser Marking Machine
750000
1290000
BesCutter Desktop Style 30-50W Galvo Fiber Laser Marking Machine
750000
1290000
Main Features

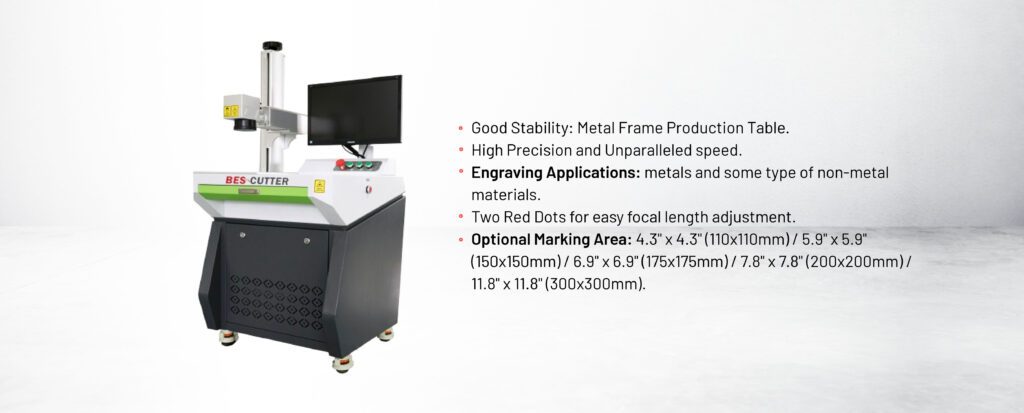

- Good Stability: Metal Frame Production Table
- High Precision and Unparalleled speed

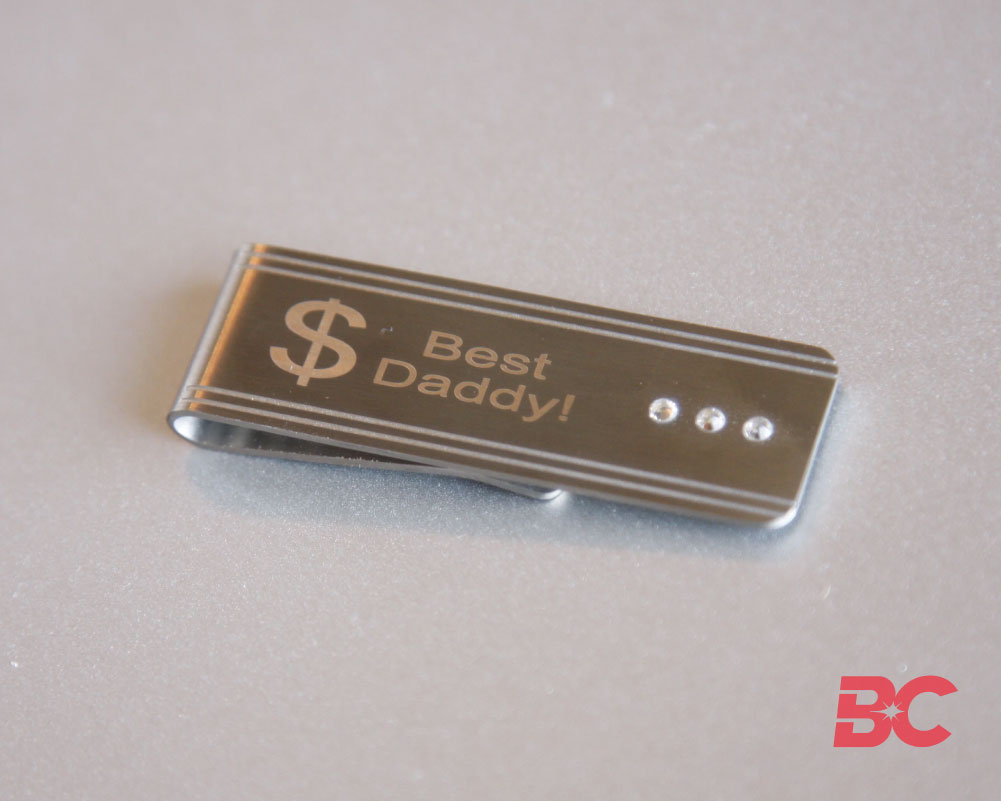

- Engraving Applications: metals and some type of non-metal materials
- Two Red Dots for easy focal length adjustment
- Optional Marking Area: 4.3" x 4.3"(110x110mm)/ 5.9" x 5.9"(150x150mm)/ 6.9" x 6.9"(175x175mm)/ 7.8" x 7.8"(200x200mm)/ 11.8" x 11.8"(300x300mm)

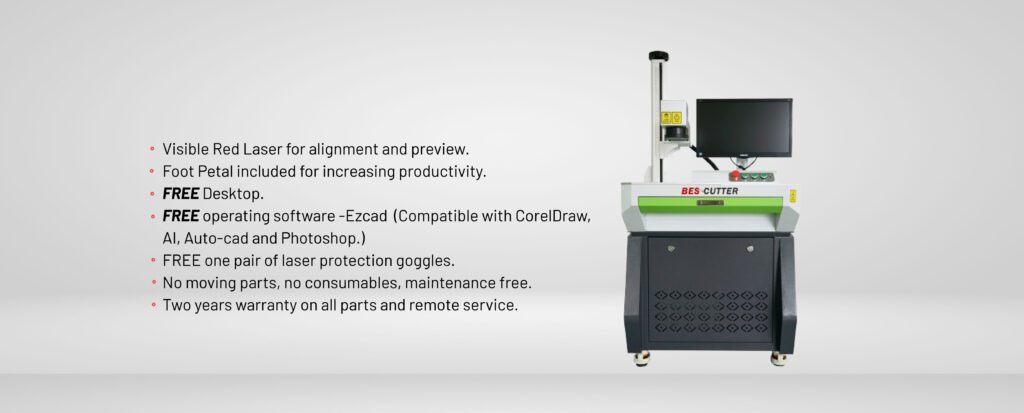

- Visible Red Laser for alignment and preview
- Foot Petal included for increasing productivity
- FREE Desktop
- FREE operating software -Ezcad (Compatible with CorelDraw, AI, Auto-cad and Photoshop.)
- FREE one pair of laser protection goggles
- No moving parts, no consumables, maintenance free
- Two years warranty on all parts and remote service
Technology Specifications
| Laser Generator: | 30W |
| Laser Source Life Time: | 100,000 + hours |
| Standard Working Area: | 4.3” x 4.3” (110 mm×110 mm) |
| Galvanometer Scanner: | Sino-Galvo |
| F-θ Lens: | Wavelength (Singapore Brand) |
| Marking Speed: | up to 7000 mm/s |
| Laser Wavelength: | 1.06 um |
| Beam divergence: | 0.3 mrad |
| Focused beam diameter: | <=20 um |
| Min. line width: | 0.02 mm |
| Min letter size: | 0.15 mm |
| Marking depth: | 0.03-0.08 mm |
| Power Supply: | 110 V / 60 Hz |
| Cooling: | Air-cooled, no extra cooling needed |
| Dimensions: | 26 x 30 x 57" (662 x 750 x 1450 mm) |
| Net Weight: | 110 lbs - 132 lbs (50 kg - 60 kg) |
Upgrade Optional
R-80 Rotary Attachment
R-50 Rotary Attachment
Jewelry Special Rotary Attachment
MOPA Laser Source (JPT)
3D Axis Galvanometer Scanner
Must Have Features
Our Galvo fiber laser allows for ease of operation because we have incorporated many features that make every job easier:
- FAST SHIPPING (Laser machine is in stock)
- Premium after-sales Service (Call us if any issues arise, our experienced, customer oriented technicians will help you solve the problem by video call or team viewer software.)
- All accessories in stock
- Free laser protection goggles
We are glad to help you with sample test and video demonstration. Learn how you can get the Galvo fiber laser that will enhance your business by contacting us today!
