This item is currently on backorder but you can still purchase it now and we'll ship as soon as more become available.

Loading 29.5' long tube, up to 12.2' diameter around tube.

TECHNICAL SPECIFICATION

Tube range (length) 29.5' (9000 mm)
Tube diameter Square Tube Side: 0.78"- 8.86" (20- 225 mm) / Round Tube Dia: 0.59"- 12.2" (15- 310 mm)
X-axis 29.5' (9000 mm)
Y-axis  8.86" (225 mm)
Auto-loading tube length 157"-354" (4000-9000mm) / tube length detection
un-loading tube length  0- 236" (0-6000mm)
CNC system FSCUT5000
X, Y-axis positioning accuracy ±0.05 mm/1000 mm
X, Y-axis re-positioning accuracy ±0.03 mm
A, B-axis positioning accuracy ±30"
A, B-axis re-positioning accuracy  ±10"
X, Y-axis max positioning speed 100 m/min
Max positioning speed 60 rpm
Laser resonator IPG 2 KW  (Germany Brand)
Optional laser wattage 2 KW/ 3 KW/ 4 KW/ 6 KW
Laser head RayTools
Machine Weight  28,660 lbs (13,000 kg)
Dimensions (L x W x H)/auto-loading not included 984"x 169" x 110" (25000 x 4300 x 2800 mm)
Dimensions (L x W x H)/ auto-loading included 984"x 248" x 110" (25000 x 6300 x 2800 mm)

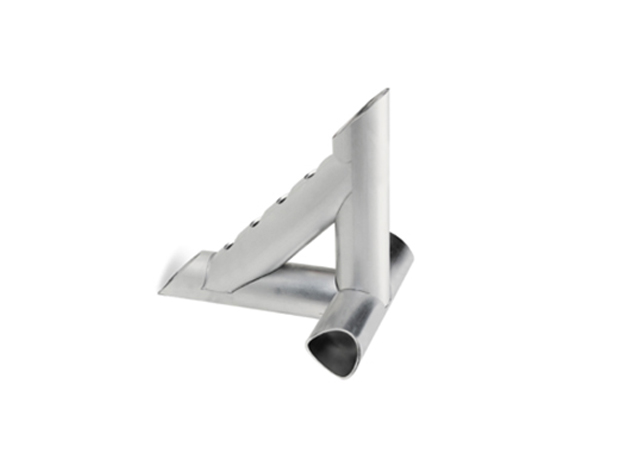

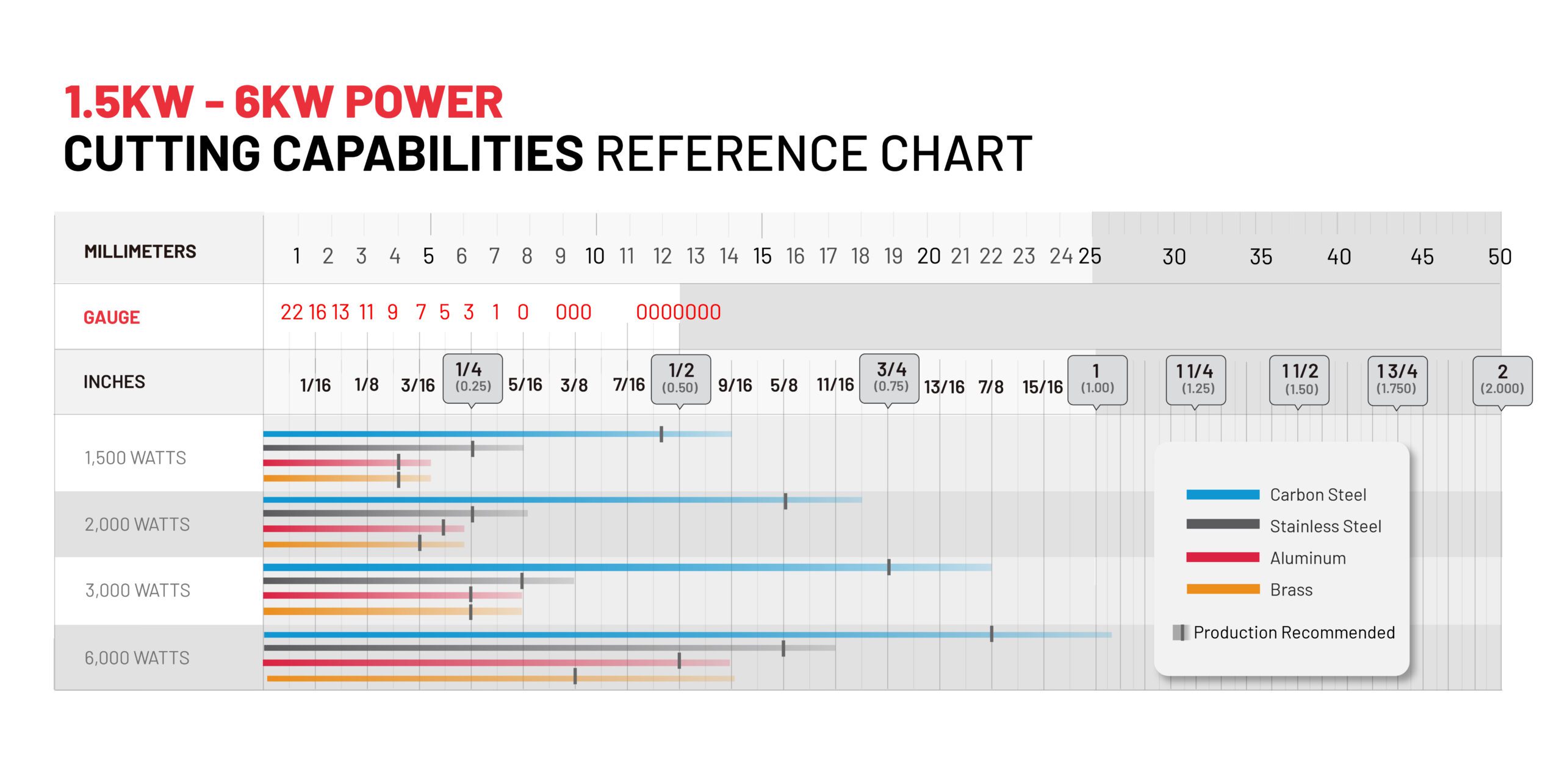

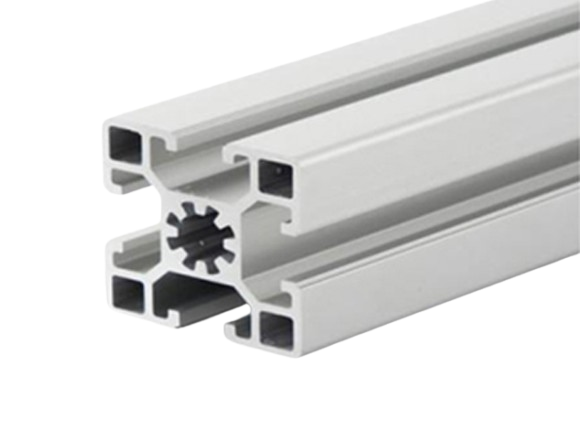

CUTTING CAPABILITIES


MACHINE VIDEO


For Quote or More Information

please fill this form:

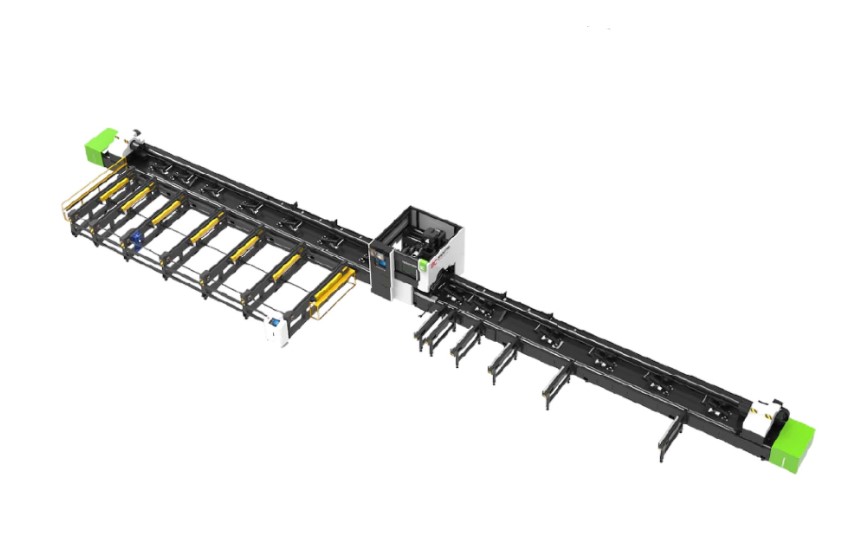

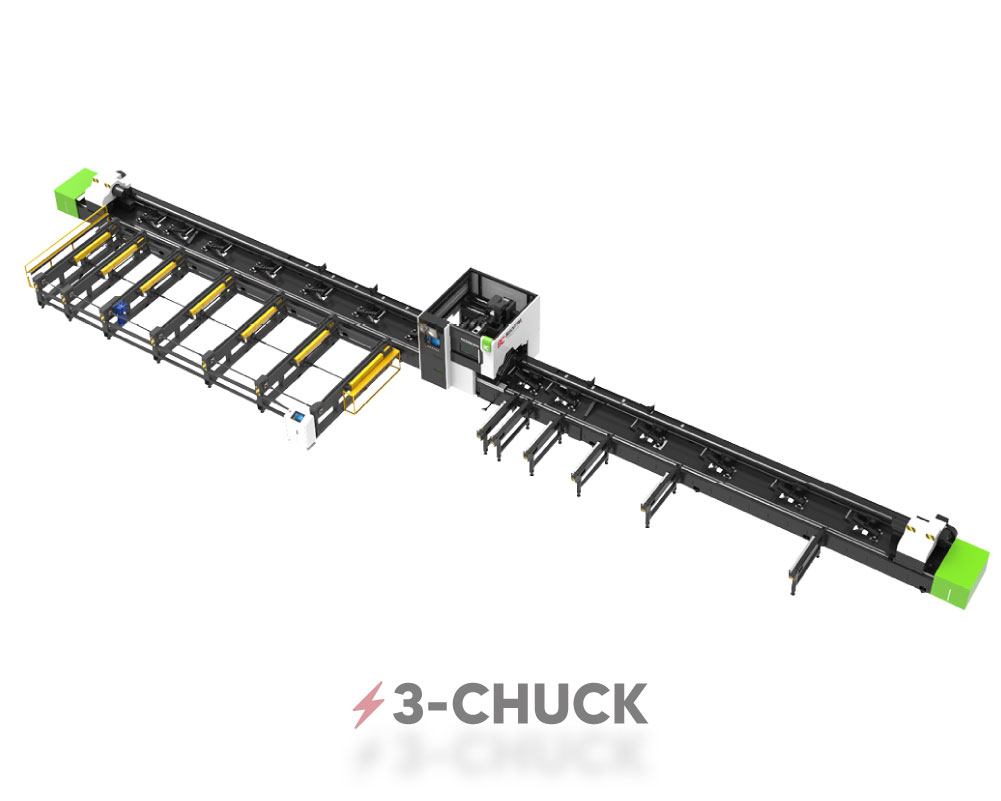

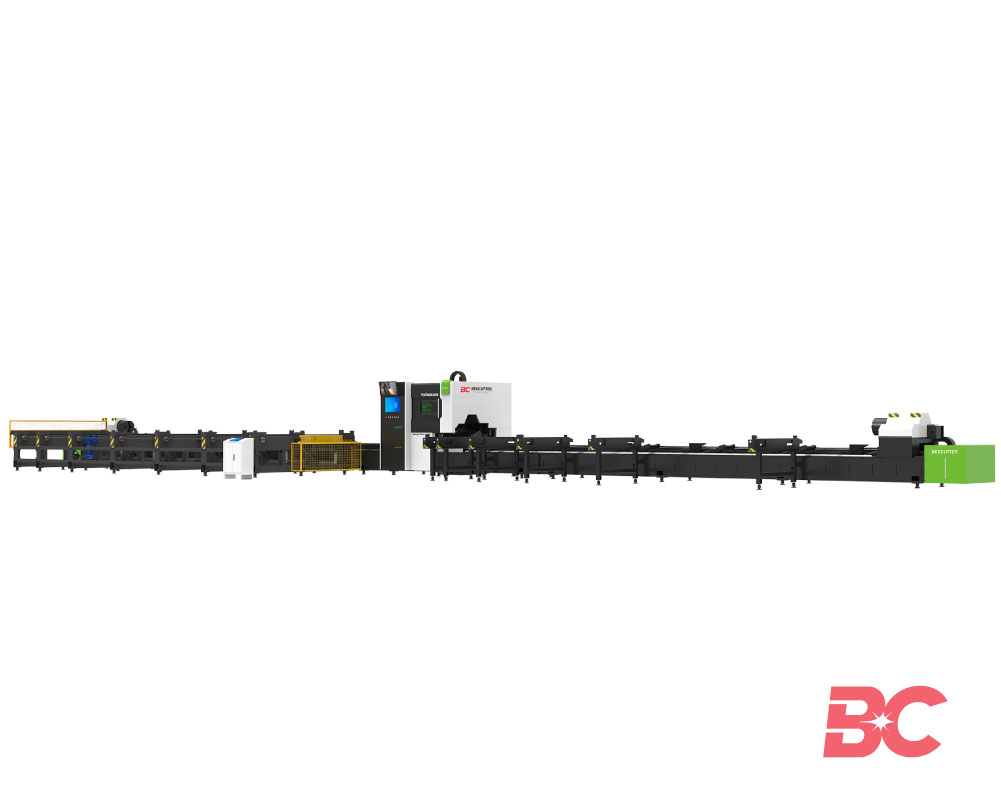

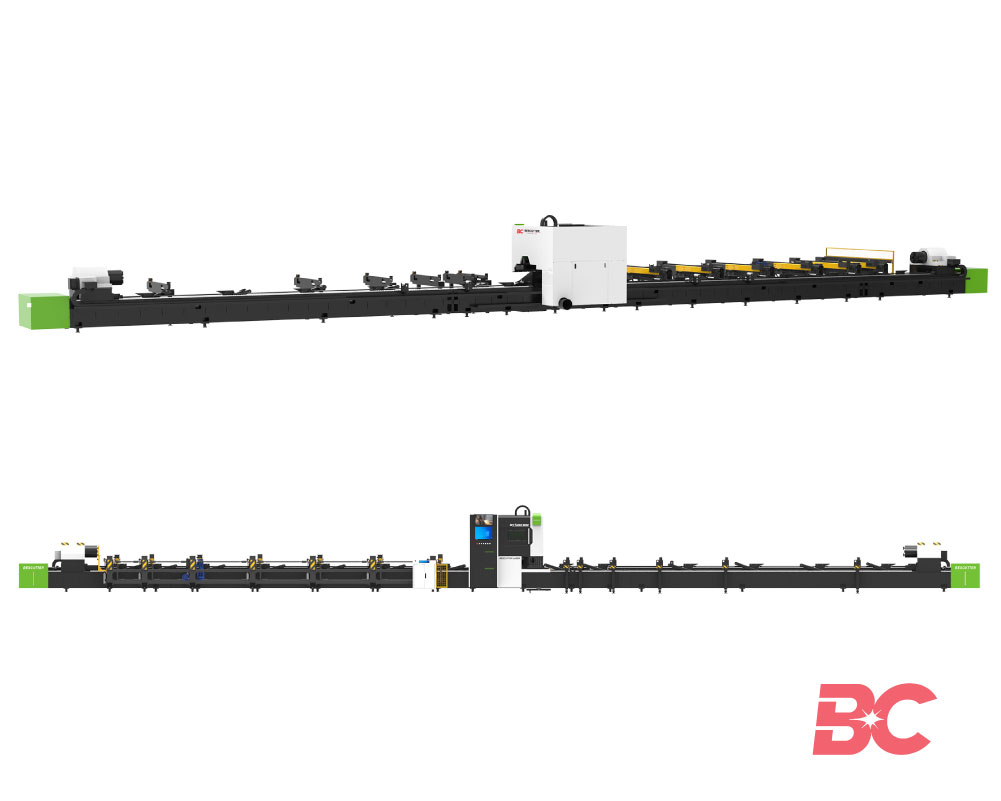

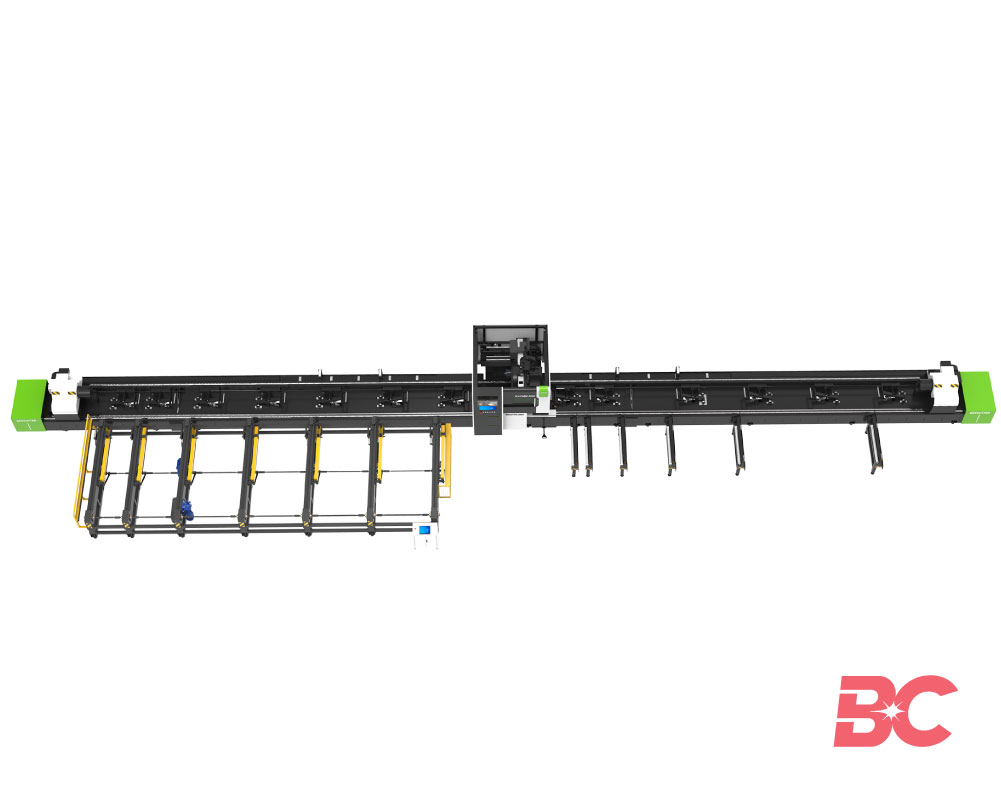

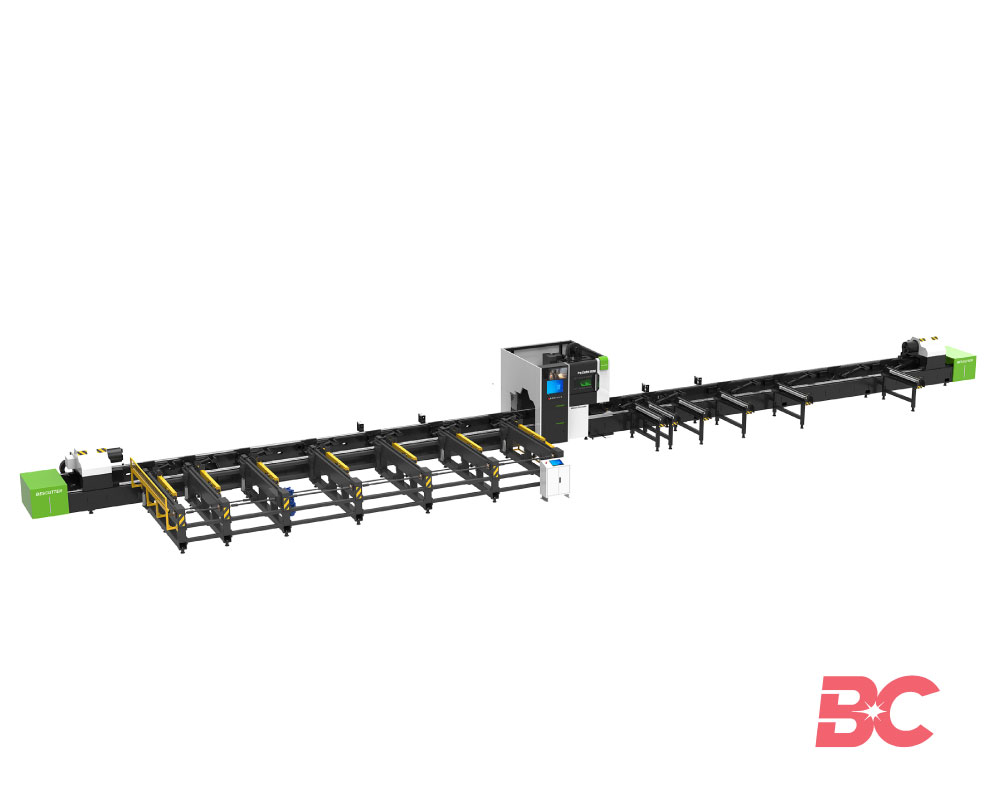

Hytube 3Chuck TUBE CUTTER 2000W - 6000W | Fiber Laser Pipe Cutting Machine with Auto Loading
