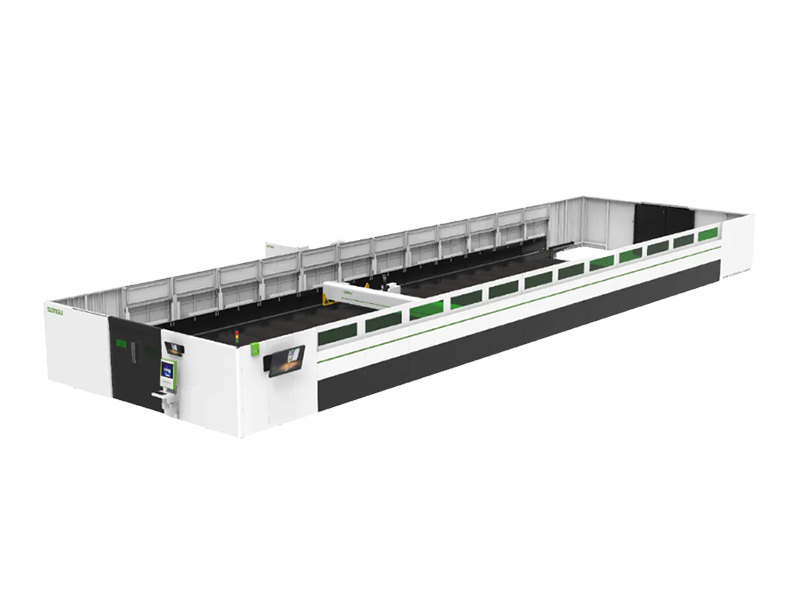

Wind 12025 (8.2 'x40') | 6000W -15000W IPG | Fiber Laser Cutter Fully Enclosed with Hydraulic Shuttle Table
55000000
Wind 12025 (8.2 'x40') | 6000W -15000W IPG | Fiber Laser Cutter Fully Enclosed with Hydraulic Shuttle Table
55000000
TECH SPECIFICATIONS
| Working Area: | 8.2' x 40' (12000 x 2500 mm) |
| X, Y Two-axis coordinated positioning speed (MAX): | 2.4 G |
| Positioning acceleration (MAX): | 2.0g |
| Positioning accuracy: | ±0.05 mm/m |
| Re-positioning accuracy: | ±0.03 mm |
| Gross weight |
70.547 Lb (32 Ton) |
| Laser resonator: | IPG (Germany Brand) |
| Laser head: | PRECITEC (Germany Brand) |
| Controlling System: | Beckhoff (Germany Brand) |
| X-Y-Z Servo Motors: | X-2x9700W; Y- 1x6880W ; Z-1x940W |
| Dimensions: | 90'x 13.77' x 7.7' (27200 x 4200 x 2350 mm) |
| IPG-YLS Specification: | 6kw to 15kw |
| Laser Mode: | CW,QCW |
| Wavelength: | 1070-1080nm |
| Standard output laser power: | 6000W |
| Laser beam quality: | ≤4mm*mrad |
| Modulation speed: | 5kHz |
| Delivery fiber core diameter: | ≥50μｍ |
| Output stability: | ±2% |
| Power supply: | 400-460V/3P+PE@50-60Hz |
HIGH POWER
CUTTING CAPABILITIES
