MACHINE VIDEO

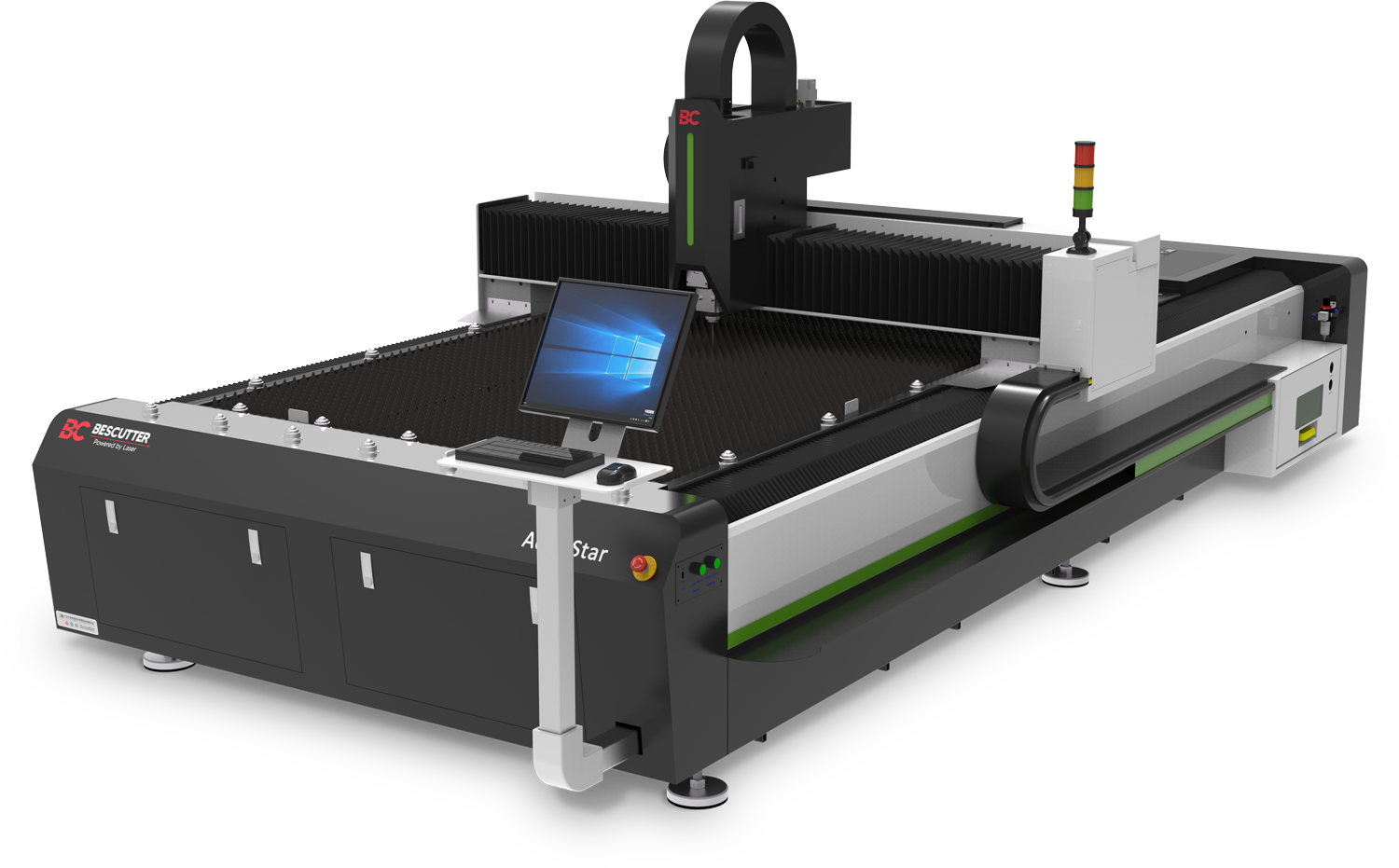

Main Features

• IPG Laser Resonator.
• High Rigidity Enhanced Aviation Aluminum Gantry.
• Rack and pinion structure, servo drive, secondary annealing treatment of high rigid welding frame with high accuracy and stability.
• Professional laser cutting software with graphic layout and sharp corner smoothing functions, fast piercing & cutting.
• Space Saving: no exchange table.

Technology Specifications

• Working Area: 5' x 10' (1,525 mm x 3,050 mm)
• Optional Working Area: 5’ x 20’ (1,525 x 6,100 mm)
• Z-axis Travel 4.7" (120mm)

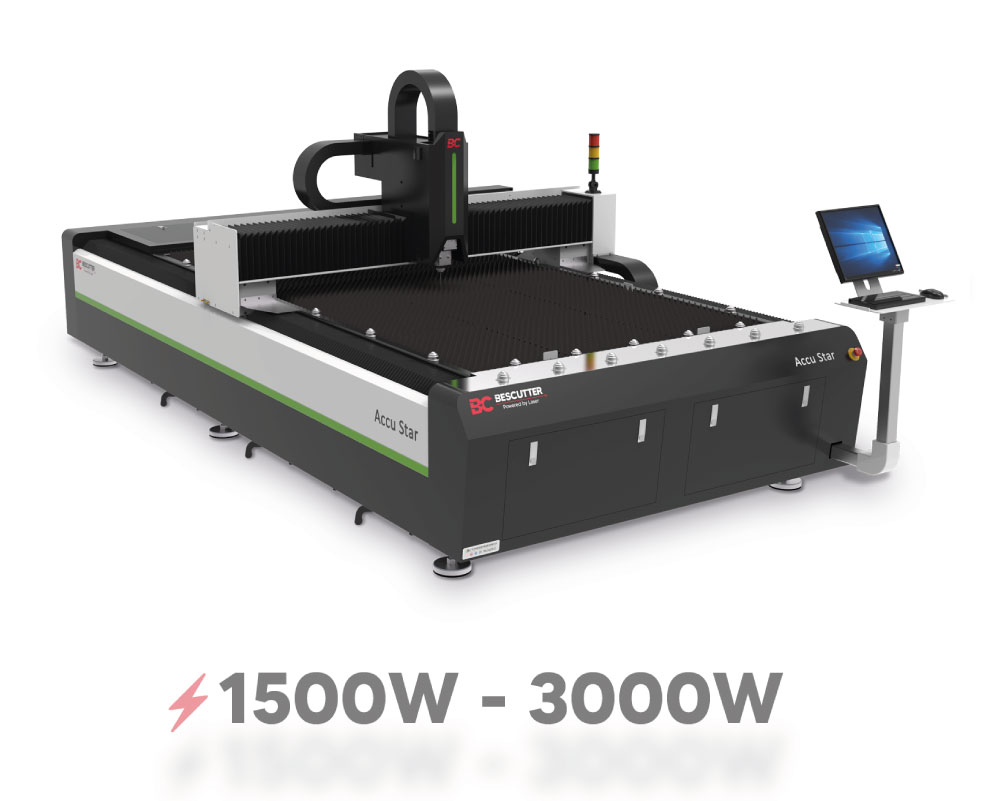

• Laser Resonator: IPG 1000 W/ IPG 1500 W / IPG 2000 W
• Continuous Wave fiber laser, 1.07 um wavelength
• Beam Quality: <0.373 mrad
• Laser Head: RayTools (Auto Focus)
• Control System: CypCut BCS 100
• Cooling System: TeYu CWFL1000, CWFL-1500, CWFL-2000 or Comparable

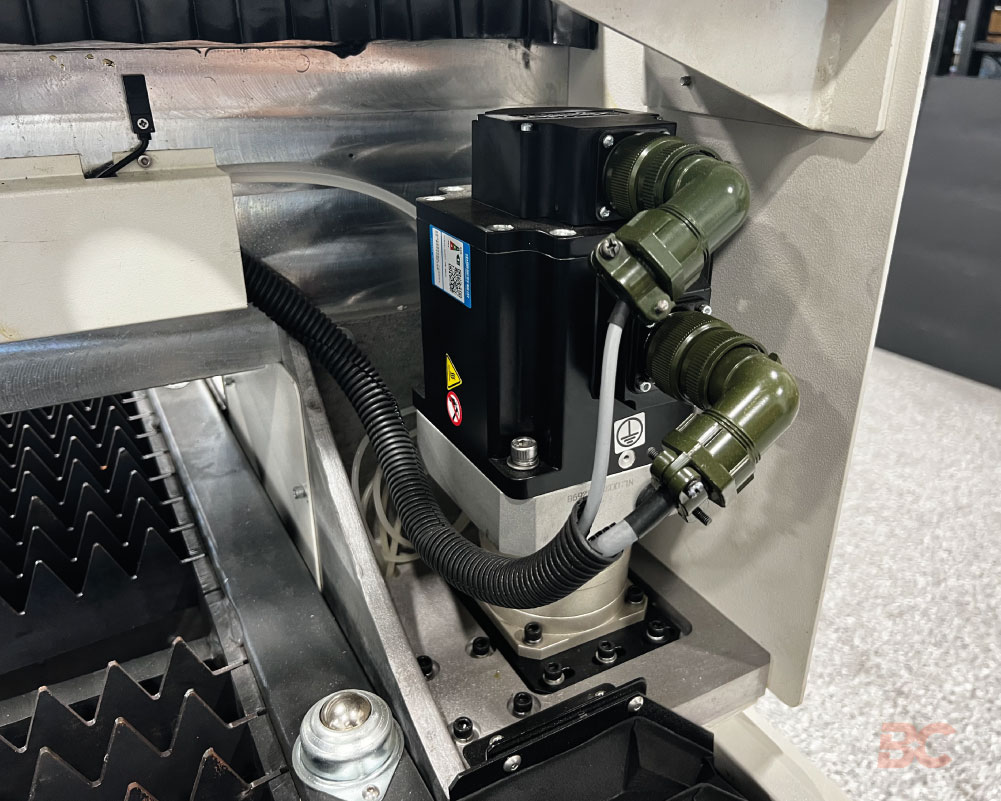

• Driving System: Servo Motors
  XYZ Servo Motors: Schneider or Delta Y 2x1500W, X 1x1000W, Z 1x400W
• High-Quality Rack and Pinion Guide Rails

Full List of Specifications (PDF)
