This item is currently on backorder but you can still purchase it now and we'll ship as soon as more become available.

MAIN FEATURES

  • IPG laser resonator
  • Auto energy saving mode

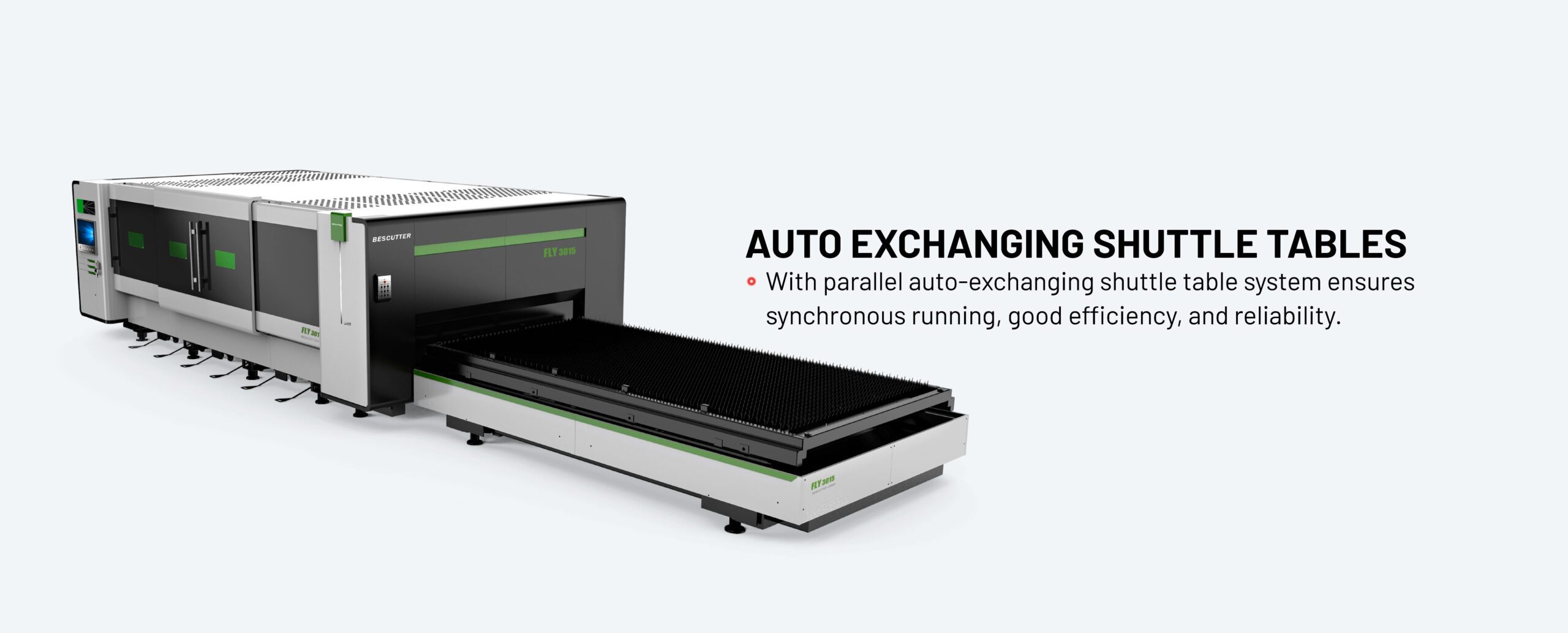

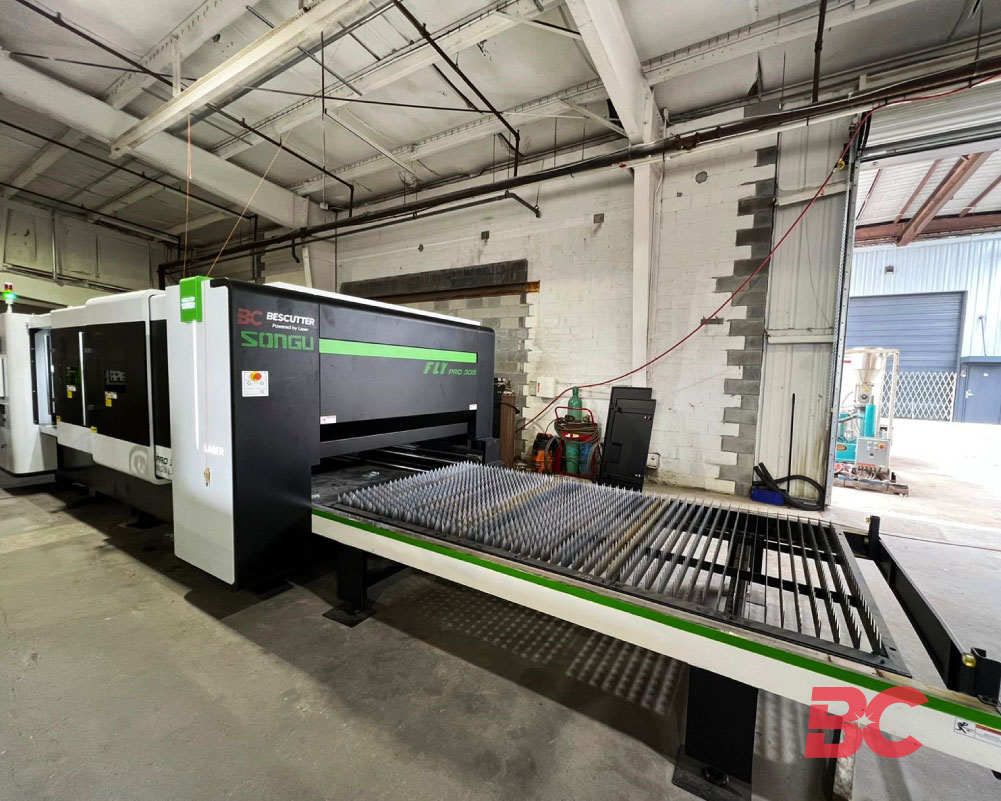

  • Parallel Shuttle Exchange Table
  • Easy Operation - The front door is on the Y axis, easy for operator to reach whole working area

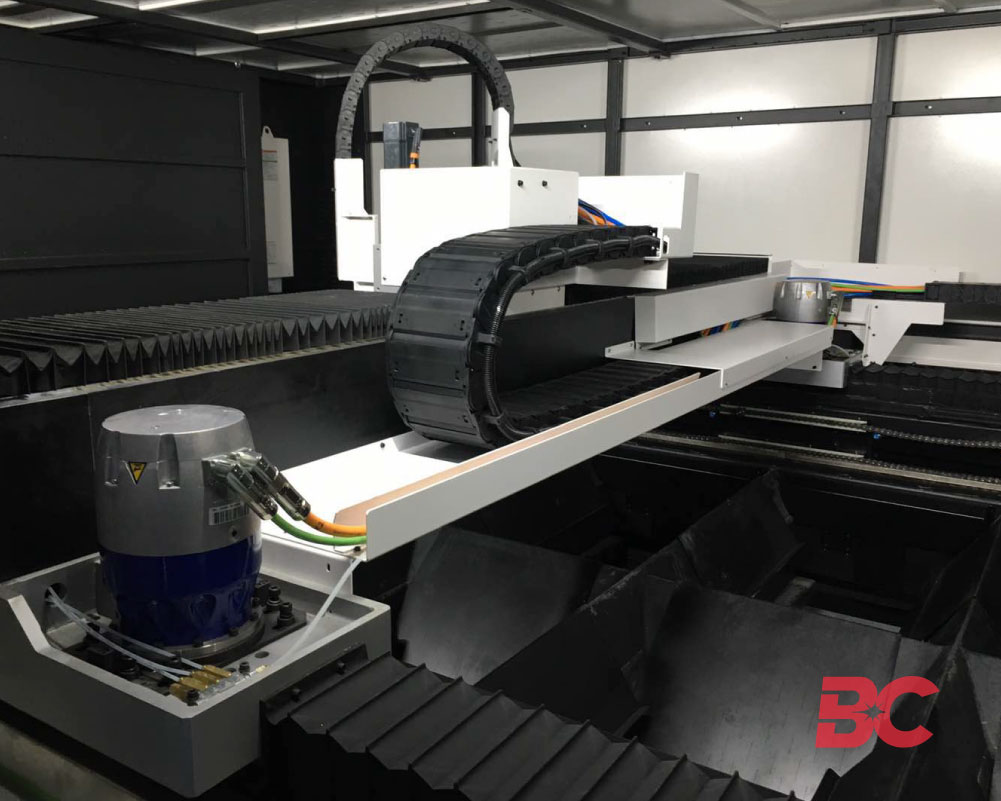

  • Swiss Imported Reducer and Rail System: Dual drive structure, high precision Swiss GUDEL reducer and Germany Rexroth guide rail system, small transmission error, high precision and good dynamic performance.

__________________________________________________________________________________________

MACHINE VIDEO

TECHNICAL SPECIFICATION

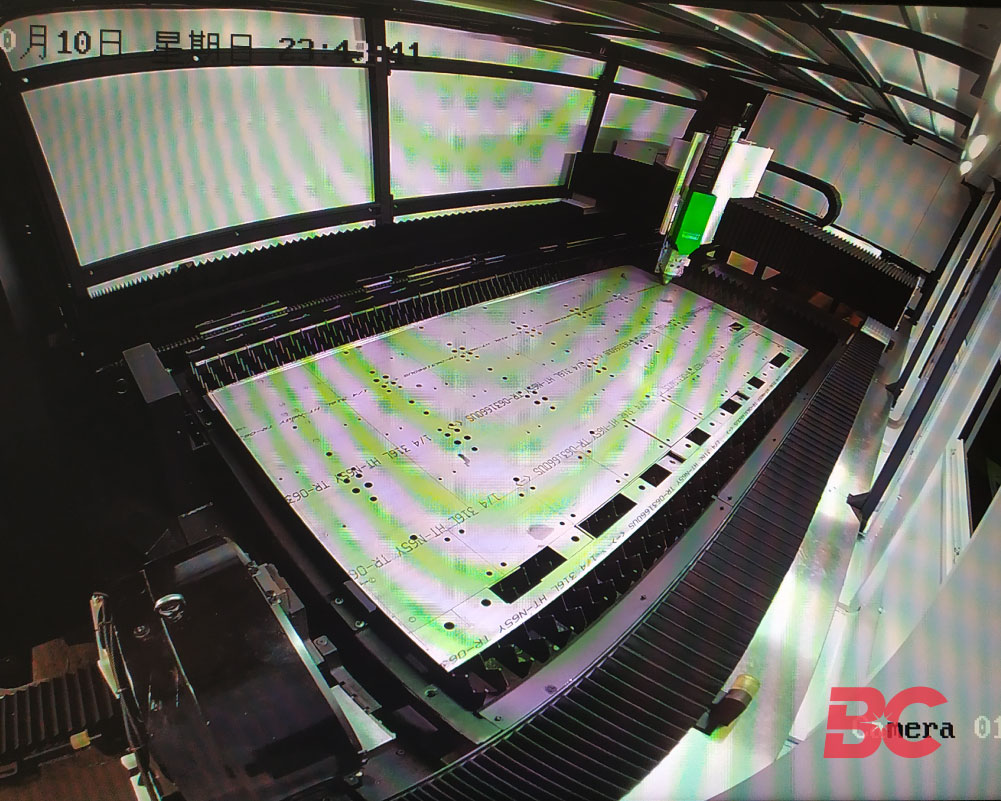

Standard working area 61" x 120" (3050 x 1550 mm)
Optional working area 157" x 78.7"/ 236" x 98.4"
Optional Laser Wattage 1500W/ 2000W/ 3000W/ 4000W
X, Y, Z  axis distance 61" (3050 mm)/120" (1550 mm)/3.93" (100 mm)
X, Y Two-axis coordinated positioning speed (MAX)  140 m/min
Positioning acceleration (MAX) 1.4 G
Positioning accuracy ±0.05 mm/m
Re-positioning accuracy ±0.02 mm
Maximum load weight 1543 lbs
Laser resonator IPG

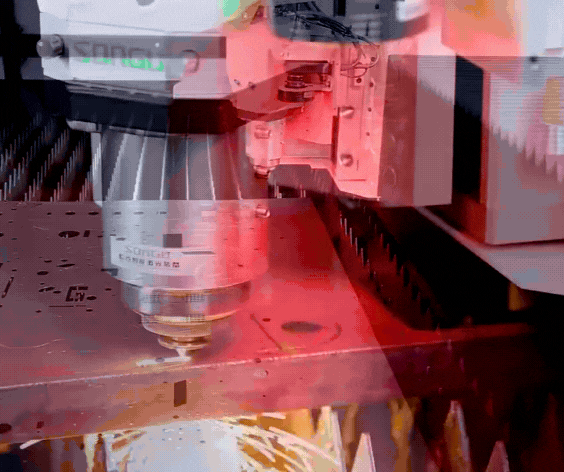

Laser head Raytools (Precitec optional)
Controlling System CypCut (Beckhoff optional)
X-Y-Z Servo Motors X-2x2900W;  Y- 1x850W ;  Z-1x750W
Machine Weight 20945 lbs (9500 kg)
Dimensions  350"x 118" x 83" (8900 x 3000 x 2100 mm)

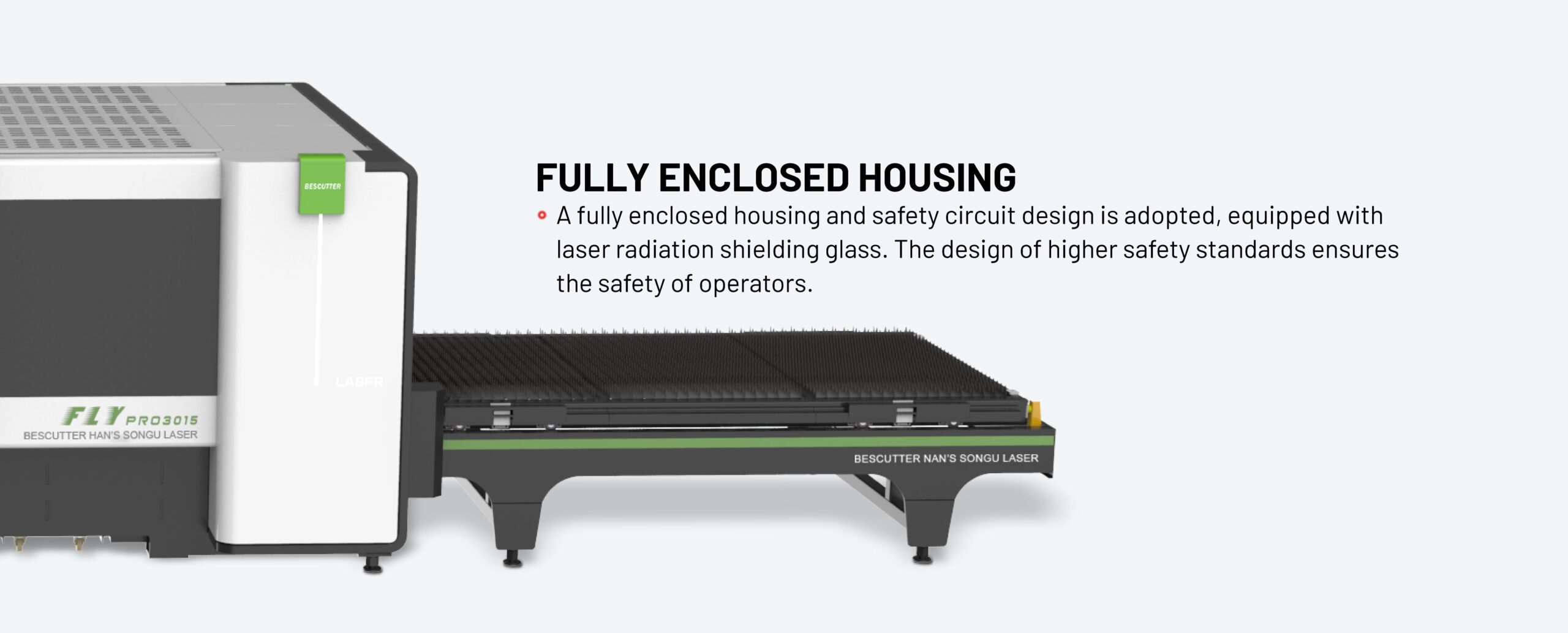

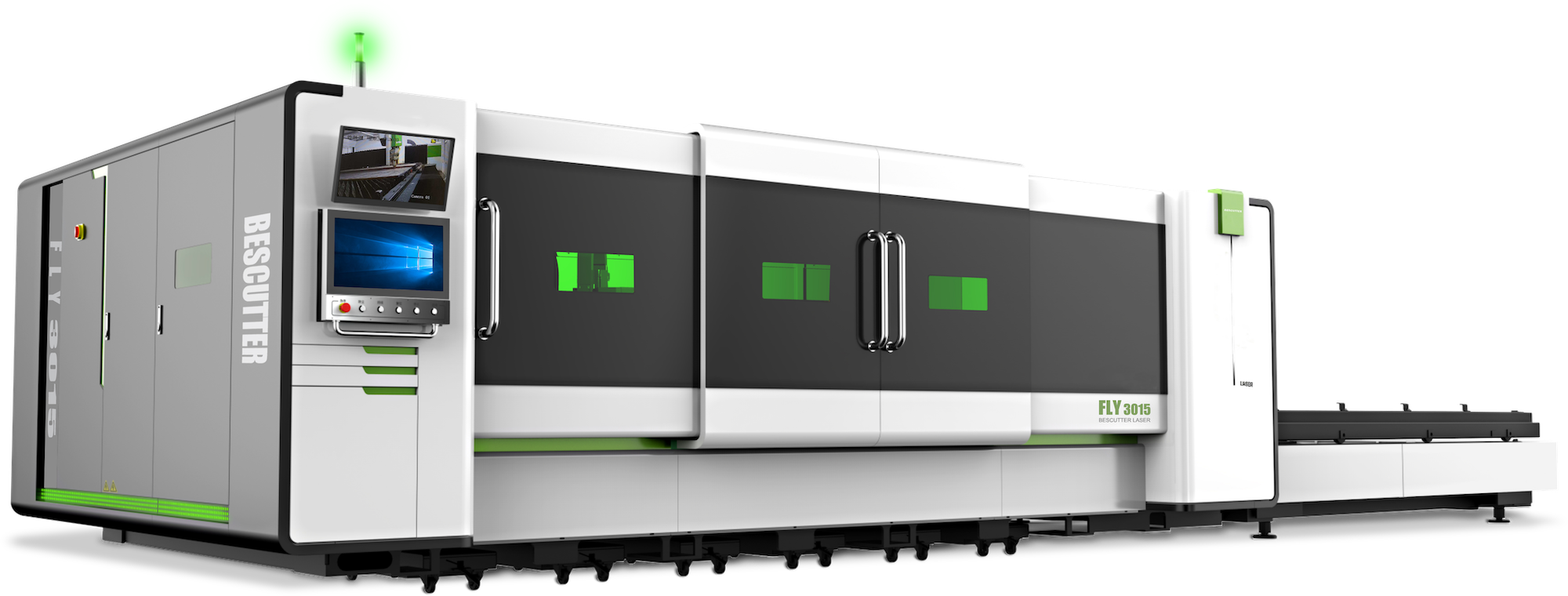

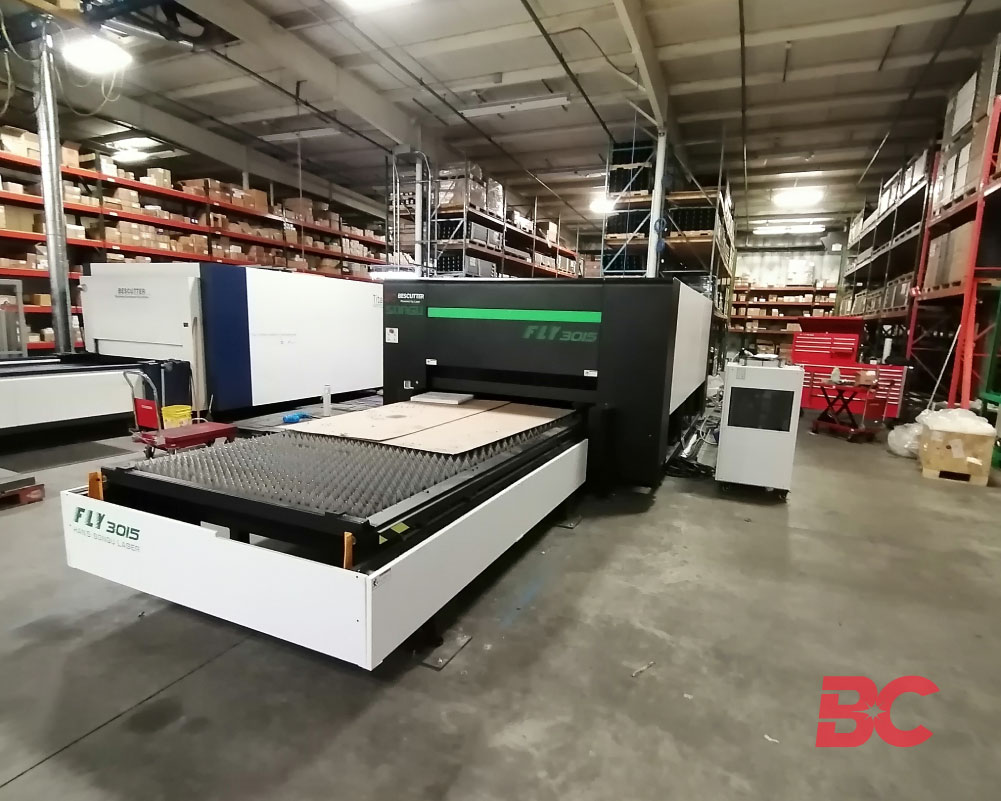

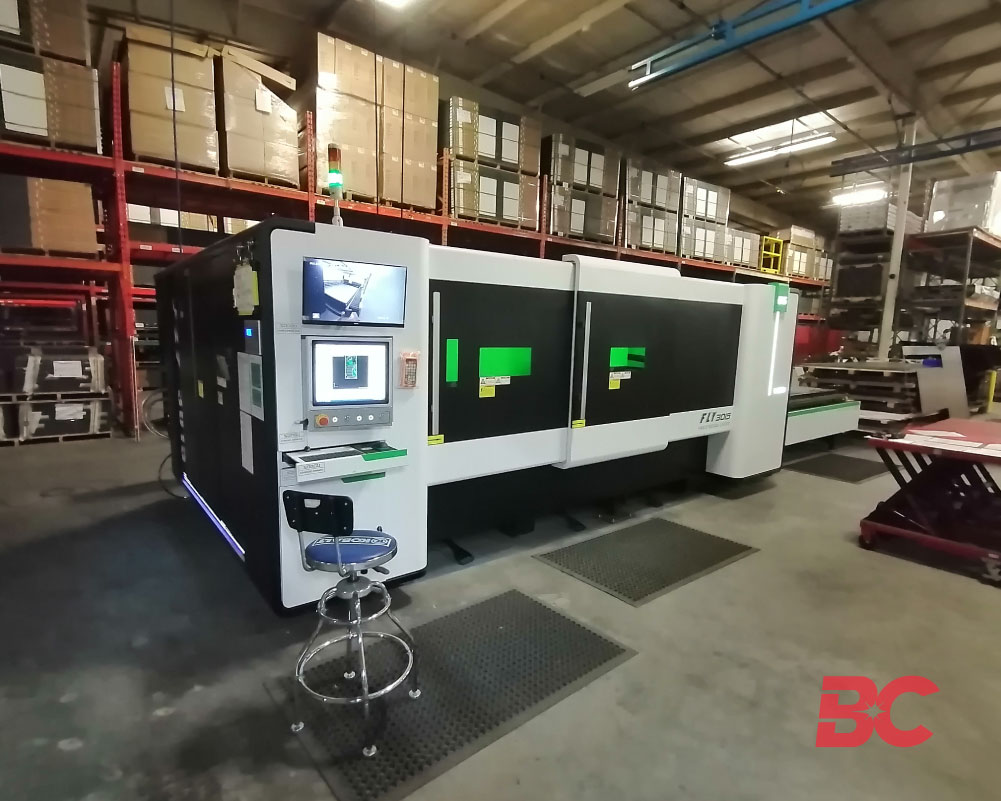

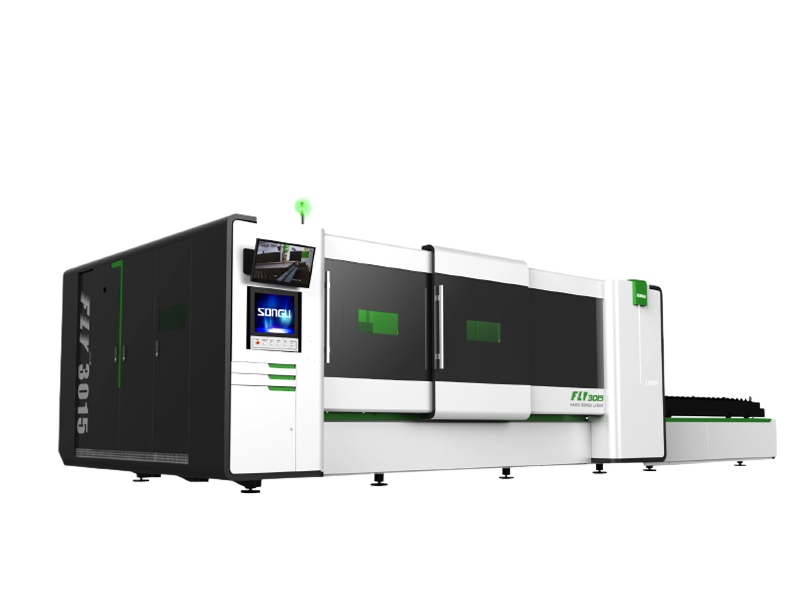

    BesCutter Fly Speed 1.5-6KW Fiber Laser Metal Sheet Cutter Full Enclosure with Parallel Shuttle Table
