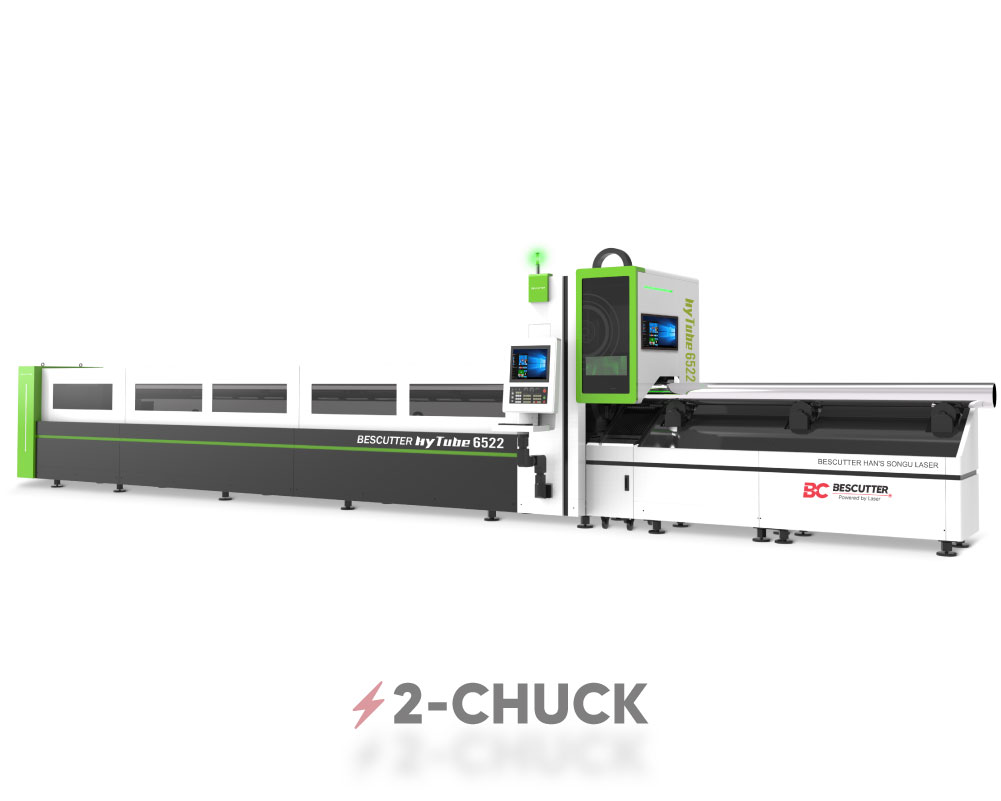

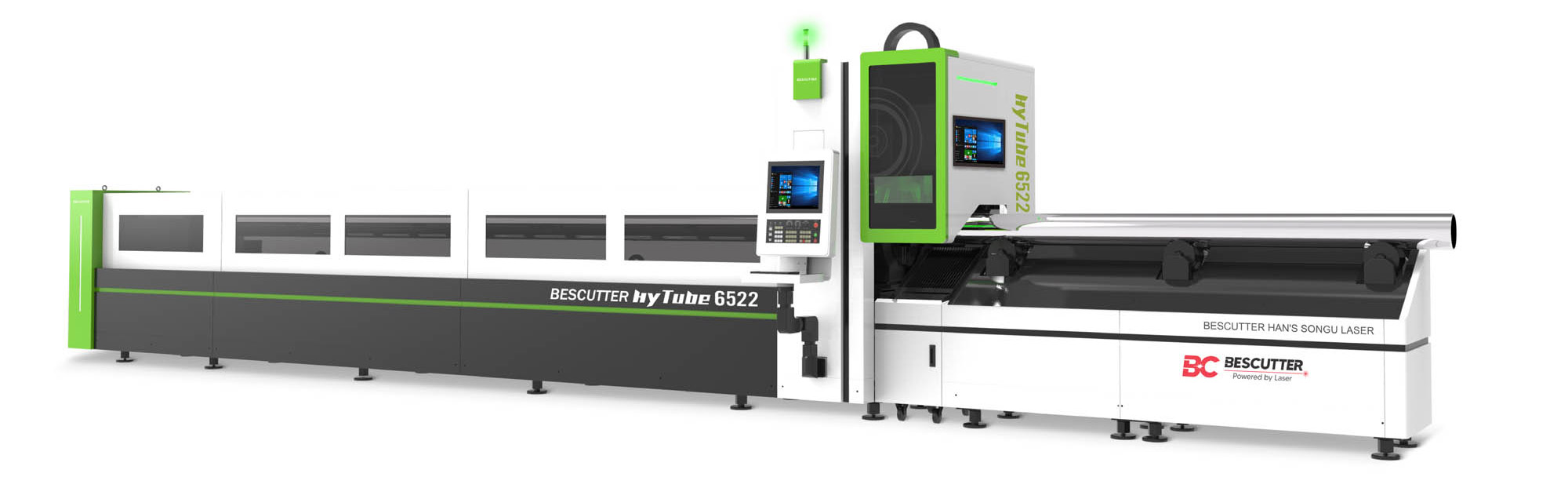

HYTUBE 2000W - 6000W IPG | Fiber Laser Tube Cutting Machine with Auto

24000000 27000000

Laser Generator

Automatic Loader

Bevel Cutting Head

This item is currently on backorder but you can still purchase it now and we'll ship as soon as more become available.

PRODUCT INTRODUCTION

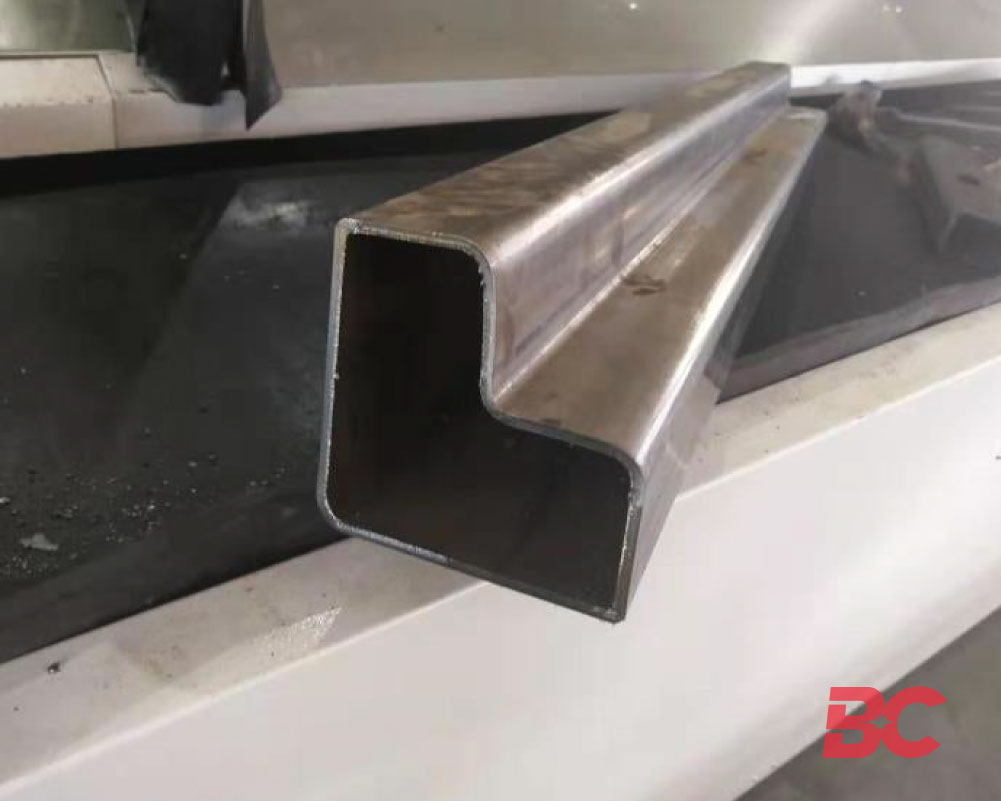

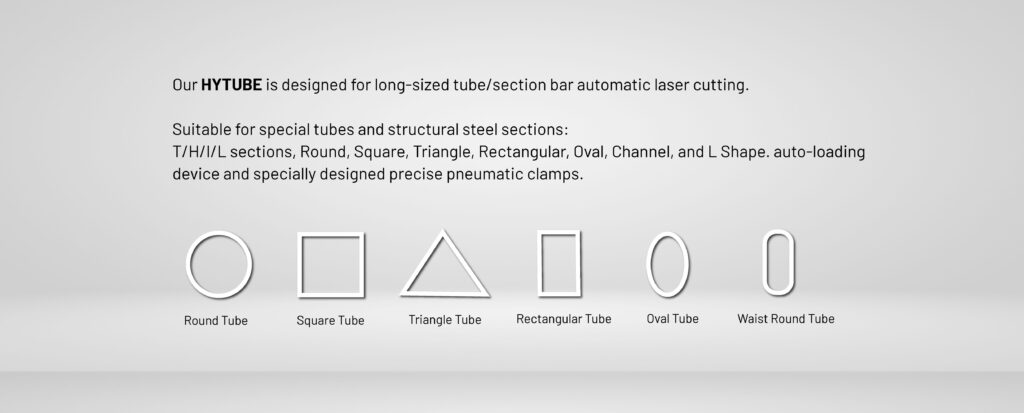

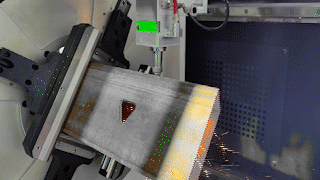

Cut variety of tubes, such as: round tube, square tube, triangle tube, rectangular tube, oval tube and waist round tube.

IPG laser resonator
Germany PRECITEC cutting head: high precision with auto-focus.
FASTCUT CNC system: Integrates professional tube cutting platform, powerful but simple for operation, with user-friendly HMI.

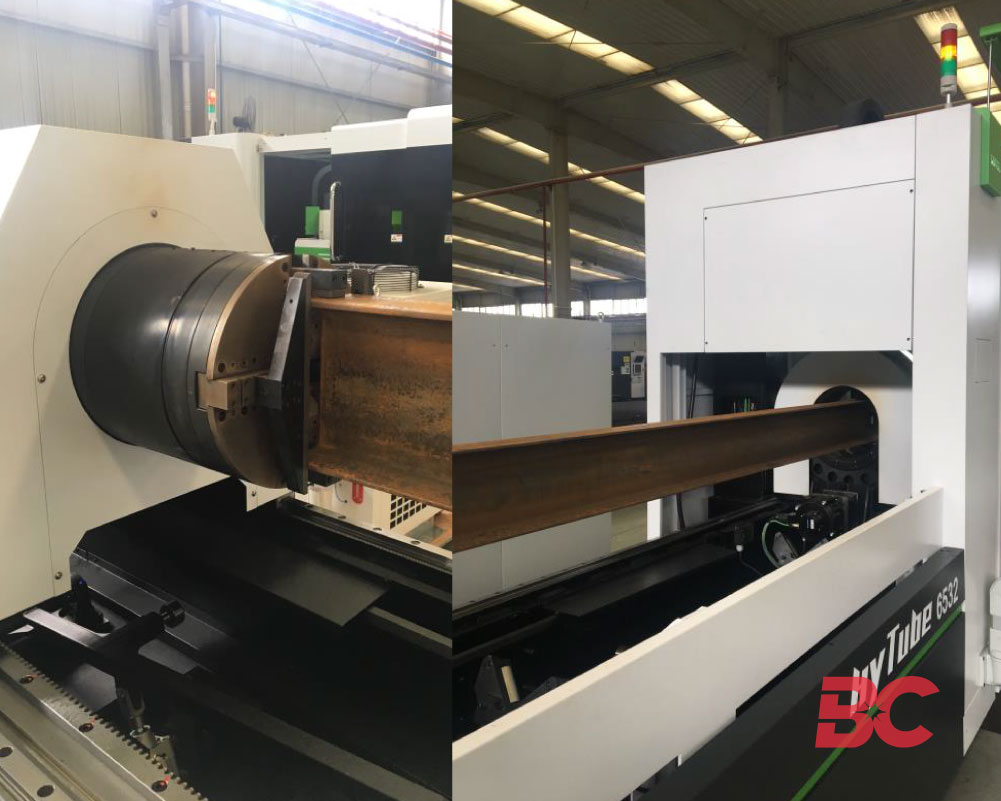

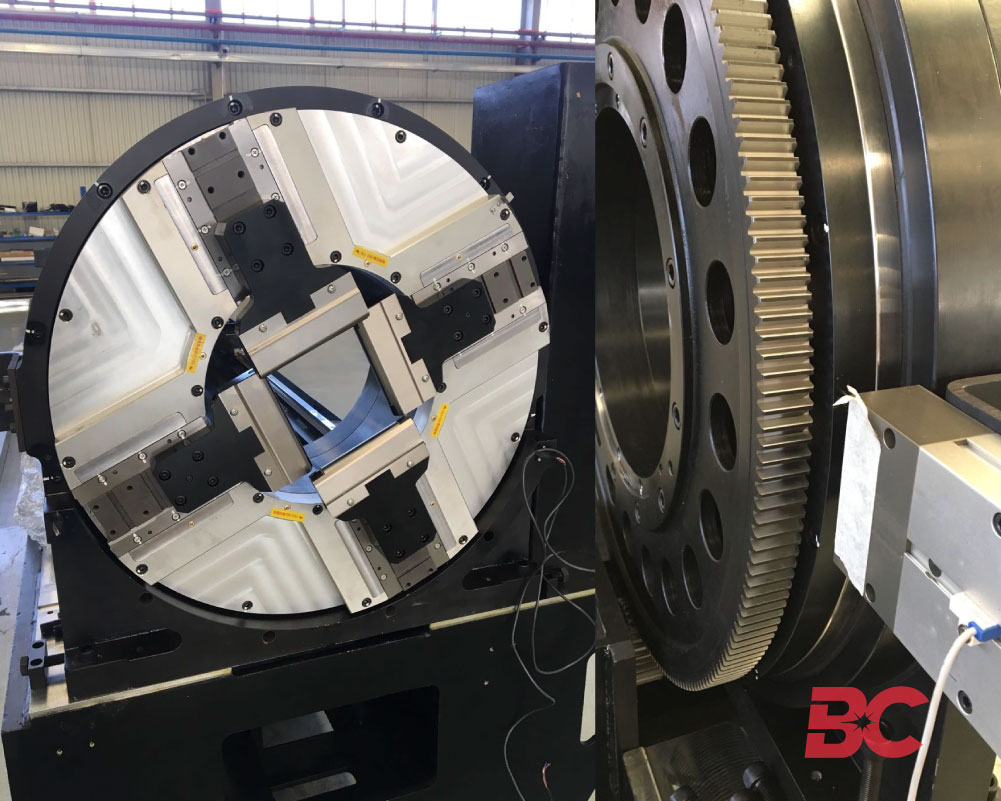

Special designed flexible tube support device: Keep the device grip the tube tightly during the tube feeding and rotating.

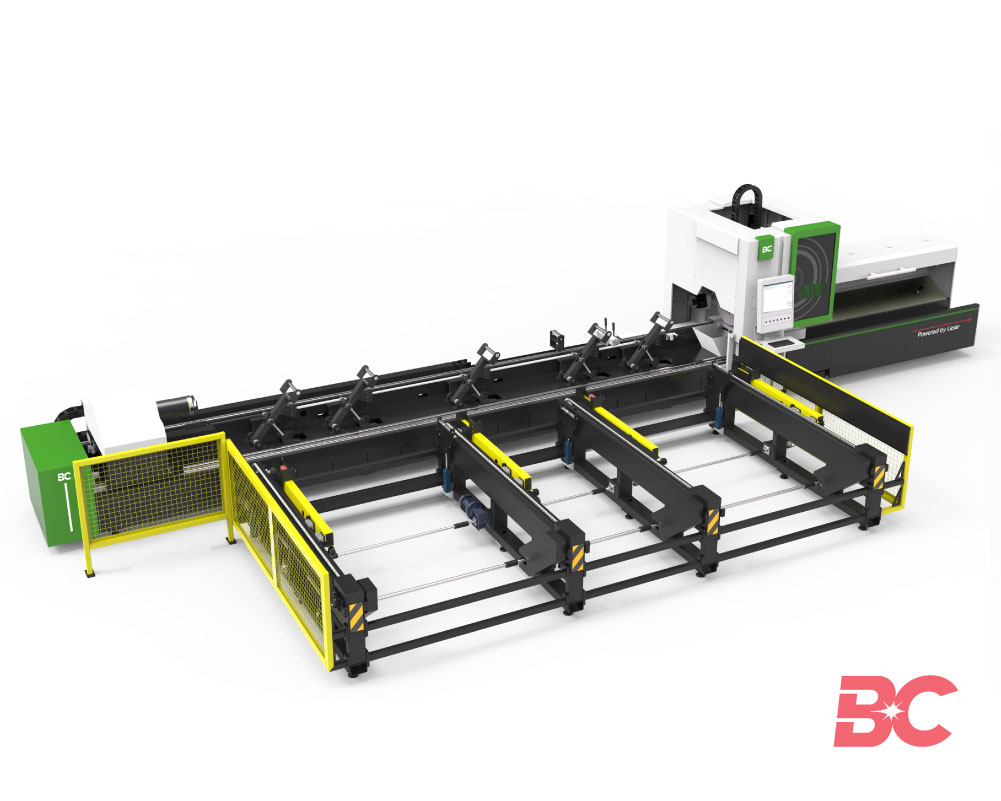

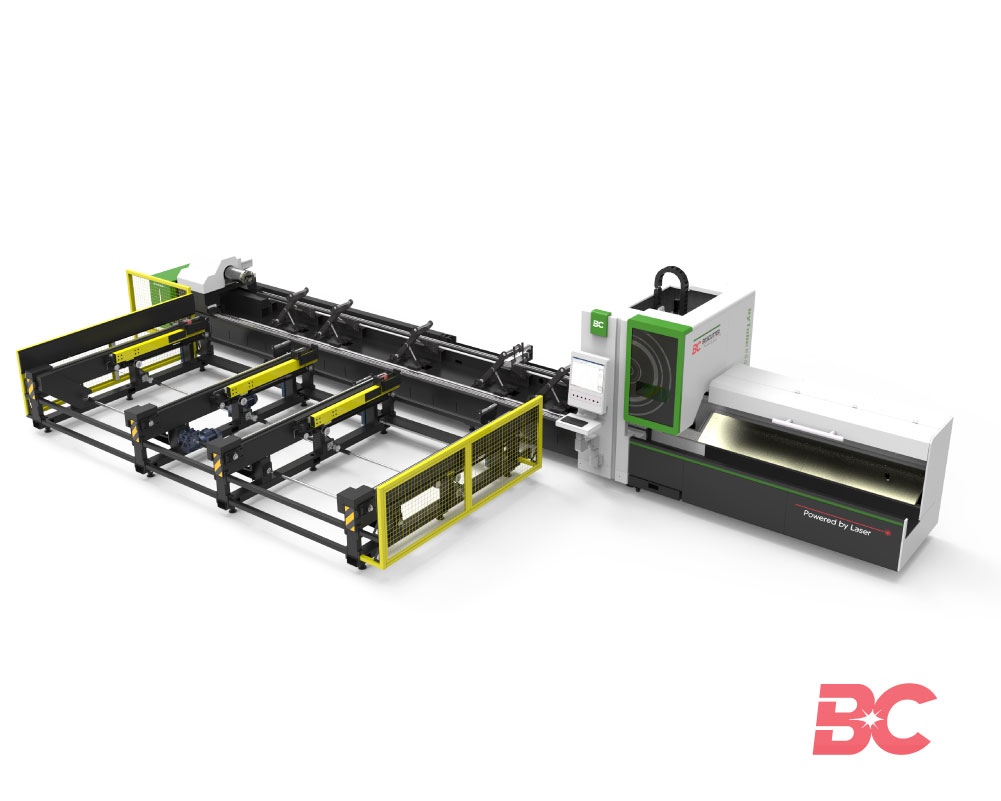

Automatically loading by whole package tube: Reduce staff number and improve the processing efficiency.
Tube type auto-recognition system: Different types tubes can be mixed loading together.
High precision & high-pressure servo-control valve: Precisely control the cutting gas and pneumatic chuck.
Linear positioning speed 100 m/min; rotation positioning speed 120 m/min.

Tube range (length)	244" (6200 mm)
Tube diameter	Standard: 0.78"- 8.66" (20- 220 mm) Optional: 0.78"- 12.60" (20- 320 mm)
X-axis	246" (6250 mm)
Y-axis	7.87" (200 mm)
A, B-axis	Infinite Rotation
Z-axis	6.30" (160 mm)
X, Y-axis positioning accuracy	±0.03 mm/1000 mm
X, Y-axis re-positioning accuracy	±0.05 mm
A, B-axis positioning accuracy	±30"
A, B-axis re-positioning accuracy	±10"
X, Y-axis max positioning speed	100 m/min
Max positioning speed	100 rpm
Laser resonator	IPG 2 KW (Germany Brand)
Optional laser wattage	IPG 1 KW/ 1.5 KW/ 3 KW/ 4 KW (Ask for price)
Laser head	PRECITEC (Germany Brand)
Machine Weight	16534 lbs (7500 kg)
Dimensions (L x W x H)	472"x 169" x 110" (12000 x 4300 x 2800 mm)
